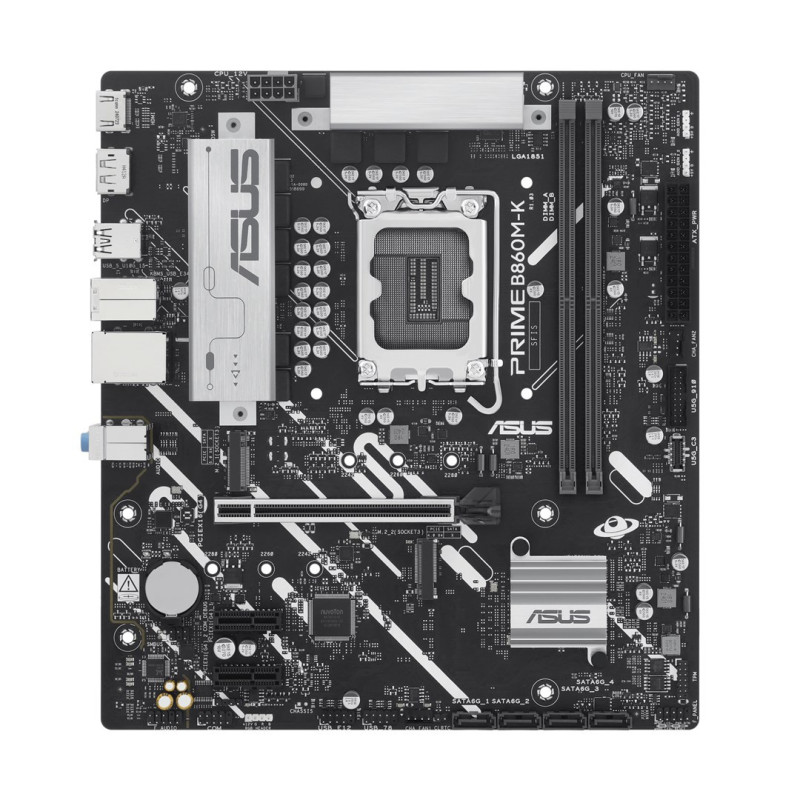

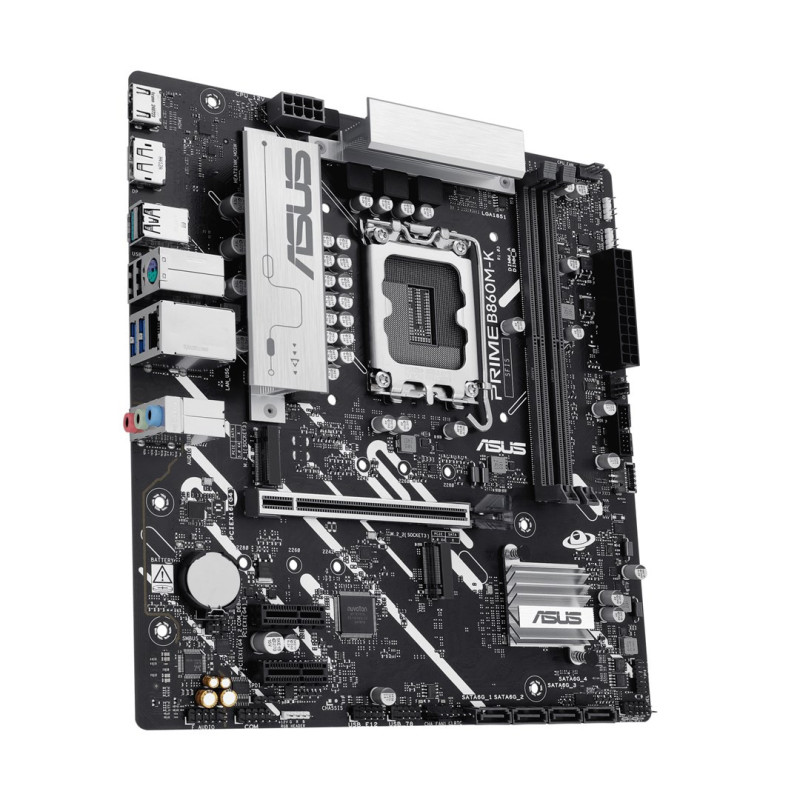

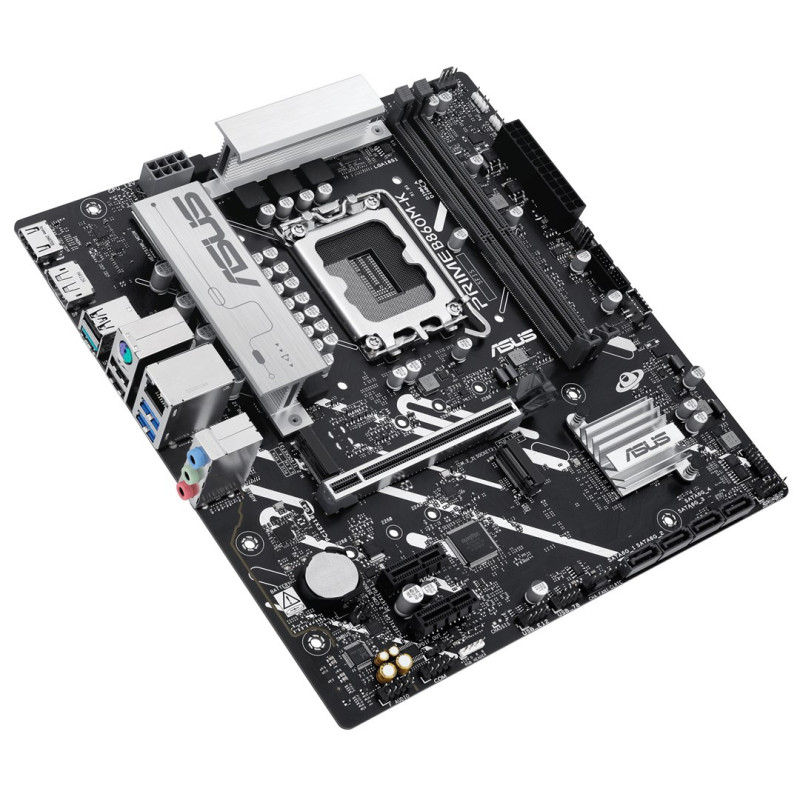

ASUS PRIME B860M-K Intel B860 Micro ATX LGA 1851
The ASUS PRIME B860M-K is a micro ATX motherboard compatible with Intel Core Ultra processors and supporting DDR5 memory up to 128GB. It features dual-channel memory slots, 2.5 Gigabit Ethernet and multiple USB ports, as well as RAID support for storage configurations.
- Compatible with Intel Core Ultra (2 series) processors using LGA 1851 (Socket V1).
- Micro ATX form factor with Intel B860 chipset, supporting dual-channel DDR5-SDRAM memory up to 128 GB.
- Equipped with 4 SATA III connectors and supports RAID levels 0, 1, 5 and 10 to provide flexible storage options.
- Includes multiple USB ports (2 x USB 2.0, 2 x USB 3.2 Gen 1) and HDMI/DisplayPort for versatile connectivity.
- Supports Windows 10 x64 and Windows 11 operating systems, ensuring compatibility with modern software.
- Offers 7.1 audio output channels to ensure immersive sound.
- TPM connector included for increased security.
- Supports unbuffered memory and is not ECC compatible.
- Dimensions: 222 mm depth and 244 mm width.
Processor | |
|---|---|
| Compatible processor series | Intel Core Ultra (2 series) |
| Processor manufacturer | Intel |
| Processor connector | LGA 1851 (Socket V1) |
| Supported processor connections | LGA 1851 |
Graphics | |
| Support for parallel processing technology | Not supported |
Features | |
| Component | PC |
| Motherboard chip | Intel B860 |
| Supported Windows operating systems | Windows 10 x64, Windows 11 |
| Audio output channels | 7.1 channels |
| Motherboard format | micro ATX |
Memory | |
| Unbuffered memory | Yes |
| ECC compatibility | Non-ECC |
| Supported memory types | DDR5-SDRAM |
| Memory slot type | DIMMs |
| Memory channels | Dual channel |
| Number of memory slots | 2 |
| Maximum internal memory | 128GB |
Weight and dimensions | |
| Depth | 222 mm |
| Width | 244 mm |
Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | No |
Internal I/O | |
| Number of USB 2.0 ports | 2 |
| Number of USB 3.2 Gen 1 ports | 2 |
| Number of SATA III connectors | 4 |
| TPM connector | Yes |
BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
Storage controls | |
| Number of supported storage devices | 6 |
| Supported storage device interfaces | M.2, SATA III |
| RAID levels | 10, 0, 5, 1 |
| Supported storage device types | HDD SSD |
| RAID support | Yes |
| Number of HDDs supported | 4 |
Rear panel I/O ports | |
| Number of USB 3.2 Gen 2 Type-A ports | 1 |
| Number of DisplayPort ports | 1 |
| Number of HDMI ports | 1 |
| Number of Ethernet LAN (RJ-45) ports | 1 |
| Number of USB 2.0 ports | 2 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 2 |
| Number of PS/2 ports | 1 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 1 |
Additional sockets | |
| Number of PCI Express x1 slots | 2 |
| Number of M.2 slots | 2 |
| Number of PCI Express x16 slots | 1 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 maximum key size | 2280 |
| 1st M.2 maximum key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
