Motherboard - ASUS Prime Z790-P WiFi
Product reference:
14-4711081937227
Up to 128GB DDR4 RAM running at 3200MHz and NVMe SSD support. 12th Gen Intel Core i9 processor, HDMI port, USB 3.2 Gen 2x2 Type-C port, and 3 M.2 slots for expansion.
Motherboard - ASUS Prime Z790-P WiFi
Product reference:
14-4711081937227
Up to 128GB DDR4 RAM running at 3200MHz and NVMe SSD support. 12th Gen Intel Core i9 processor, HDMI port, USB 3.2 Gen 2x2 Type-C port, and 3 M.2 slots for expansion.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

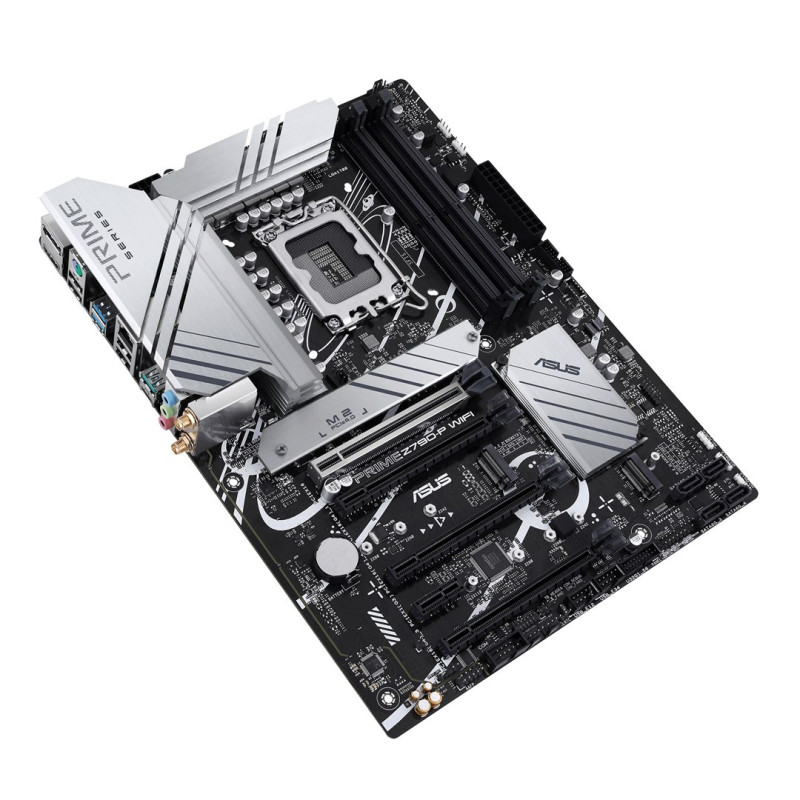

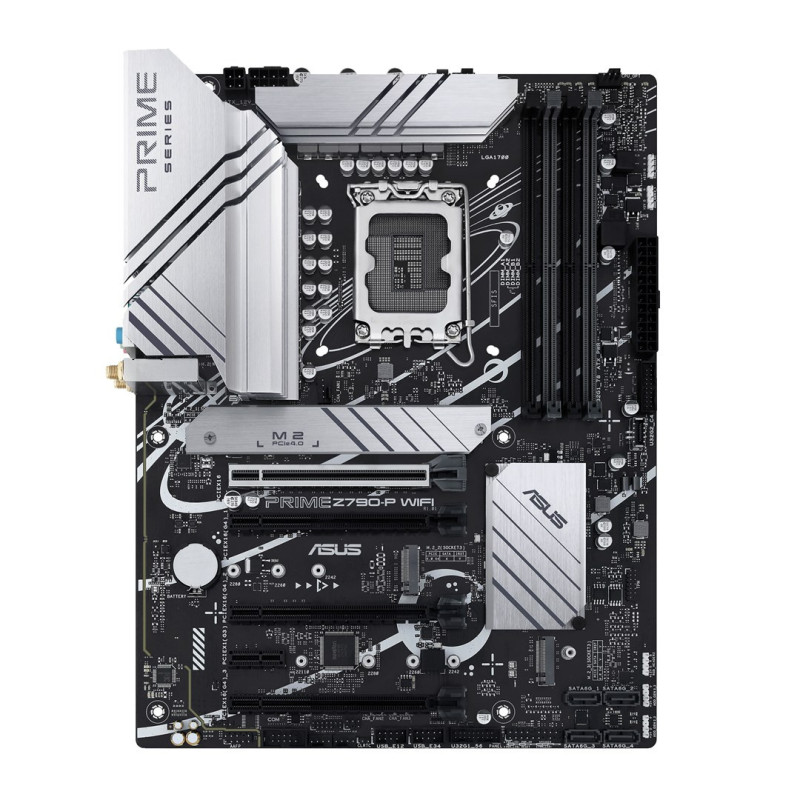

ASUS Prime Z790-P WiFi
The ASUS PRIME Z790-P WIFI is an Intel Z790 LGA 1700 ATX motherboard that supports up to 128GB of DDR5 RAM with a maximum speed of 7200MHz. It features a 12th generation Intel Core i9 processor and supports NVMe SSDs and SATA drives for data storage.
Main features
- Supports up to 128GB DDR5 RAM with 7200MHz speed
- There is 1x HDMI port, 1x DisplayPort and several USB ports
- Includes 3x M.2 slots for NVMe SSDs or Wi-Fi/Bluetooth modules
- Supports RAID levels 0, 1, 5, and 10 for data redundancy and high-performance storage
Processor | |
|---|---|
| Processor manufacturer | Intel |
| Supported processor sockets | LGA 1700 |
| Processor socket | LGA 1700 |
| Compatible processor models | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Celeron® |
Graphics | |
| Support for parallel processing technology | Not supported |
| Integrated graphics card | No |
Features | |
| Audio output channels | 7.1 channels |
| Motherboard format type | ATX |
| Product color | Aluminum, Black |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z790 |
| Power supply type | ATX |
| Supported Windows operating systems | Windows 11, Windows 10 x64 |
Memory | |
| Unbuffered memory | Yes |
| Supported memory clock speeds | 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MHz |
| Maximum internal memory | 128GB |
| Memory channels | Dual channels |
| Supported memory clock speed (max) | 7200MHz |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slot type | DIMMs |
Weight and dimensions | |
| Height | 40mm |
| Depth | 234 mm |
| Width | 305mm |
Network | |
| Bluetooth | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11g, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11b, Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth version | 5.2 |
Internal I/O | |
| Front panel audio connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| S/PDIF output connector | Yes |
| Thunderbolt connectors | 1 |
| Number of SATA III connectors | 4 |
| USB 2.0 ports | 2 |
| EPS power connector (8-pin) | Yes |
| ATX power connector (24-pin) | Yes |
| Number of COM ports | 1 |
| TPM connector | Yes |
| CPU fan connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of chassis fan connectors | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| RGB LED pin connector | Yes |
| 12V power connector | Yes |
BIOS | |
| Clear CMOS button | Yes |
| BIOS type | UEFI AMI |
Packaging details | |
| Package width | 338 mm |
| Package weight | 1.68 kg |
| Package depth | 273 mm |
| Package height | 68 mm |
Package contents | |
| Cables included | SATA |
| Add drivers | Yes |
Storage controls | |
| Supported storage drive types | HDDs and SSDs |
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Rear panel I/O ports | |
| DisplayPort quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of HDMI ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Number of PS/2 ports | 1 |
| Number of USB 2.0 ports | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Microphone input | Yes |
| Line-in | Yes |
| WiFi-AP antenna connector | 1 |
| Headphone outputs | 1 |
Expansion slots | |
| Number of M.2 (M) slots | 3 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 3 |
Other features | |
| Weight | 1.03 kg |
