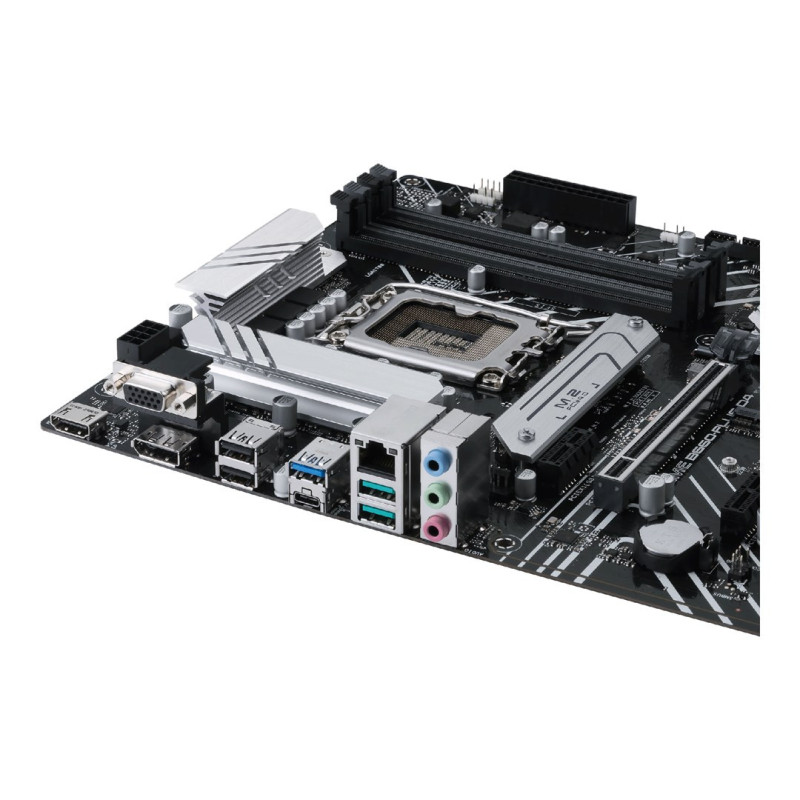

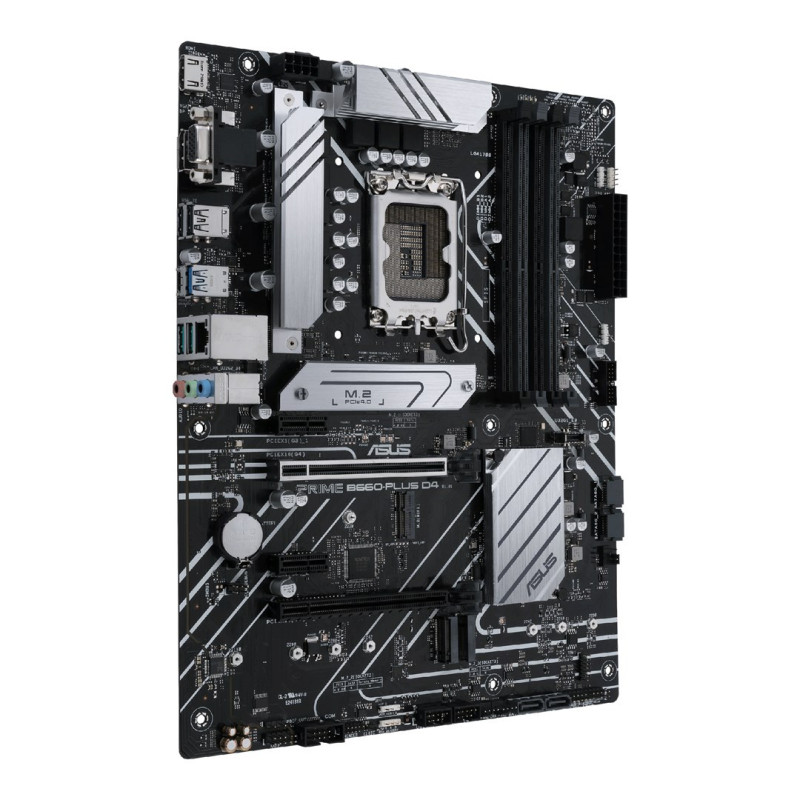

Motherboard - ASUS PRIME B660-PLUS D4 Intel B660 LGA 1700 ATX
Product reference:
14-4711081523017
Elevate your PC build with the ASUS PRIME B660-PLUS D4 motherboard, which features the powerful Intel B660 chipset, supports up to 128GB of DDR4 memory, and offers a variety of connectivity options for unmatched performance.
Motherboard - ASUS PRIME B660-PLUS D4 Intel B660 LGA 1700 ATX
Product reference:
14-4711081523017
Elevate your PC build with the ASUS PRIME B660-PLUS D4 motherboard, which features the powerful Intel B660 chipset, supports up to 128GB of DDR4 memory, and offers a variety of connectivity options for unmatched performance.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Motherboard - ASUS PRIME B660-PLUS D4 Intel B660 LGA 1700 ATX
Upgrade your PC with the ASUS PRIME B660-PLUS D4 motherboard, which features the powerful Intel B660 chipset, supports up to 128GB of DDR4 memory, and offers a variety of connectors for unmatched performance.
- Supports Intel® Core™ i3/i5/i7/i9, Celeron® and Pentium® Gold processors with LGA 1700 socket.
- Maximum internal memory capacity 128GB with 4 DDR4 slots for better multi-processor performance.
- Equipped with a 2.5 Gigabit Ethernet connection for fast network connection and smooth Internet use.
- Multiple M.2 slots and SATA III connectors for flexible storage solutions and RAID support.
- Comprehensive rear I/O ports, including USB 3.2 Gen 2 Type-C and HDMI, provide a variety of connections.
- Supports a variety of memory clock frequencies up to 5066 MHz for optimal performance.
Processor | |
|---|---|
| Supported processor sockets | LGA 1700 |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Core™ i3/i5/i7/i9, Intel® Celeron®, Intel® Pentium® Gold |
Features | |
| Motherboard chipset | Intel B660 |
| Motherboard format type | ATX |
| Supported Windows operating systems | Windows 10 x64, Windows 11 x64 |
| Audio output channels | 7.1 channels |
Memory | |
| Maximum internal memory | 128GB |
| Number of memory slots | 4 |
| Memory channels | Dual channel |
| Supported memory types | DDR4-SDRAM |
| Supported memory clock frequencies | 3466, 3000, 2133, 4000 MHz, 4800, 3333, 2400, 2800, 5066, 3400, 3866, 3600, 4600, 2666, 4266, 3733, 4400, 5000, 2933 |
Weight and dimensions | |
| Width | 305mm |
| Depth | 244 mm |
| Height | 53 mm |
Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
Internal I/O | |
| USB 2.0 ports | 2 |
| Number of SATA III connectors | 4 |
| Number of M.2 (M) slots | 3 |
BIOS | |
| BIOS type | UEFI AMI |
Storage controls | |
| Supported storage device types | HDDs and SSDs |
| Number of supported storage devices | 7 |
| RAID support | Yes |
Rear panel I/O ports | |
| USB 3.2 Gen 1 Type-A ports | 1 |
| USB 3.2 Gen 2 Type-C ports | 1 |
| HDMI ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
Expansion slots | |
| PCI Express x16 slots | 1 |
| PCI Express x1 slots | 2 |
Other features | |
| Weight | 891 grams |
