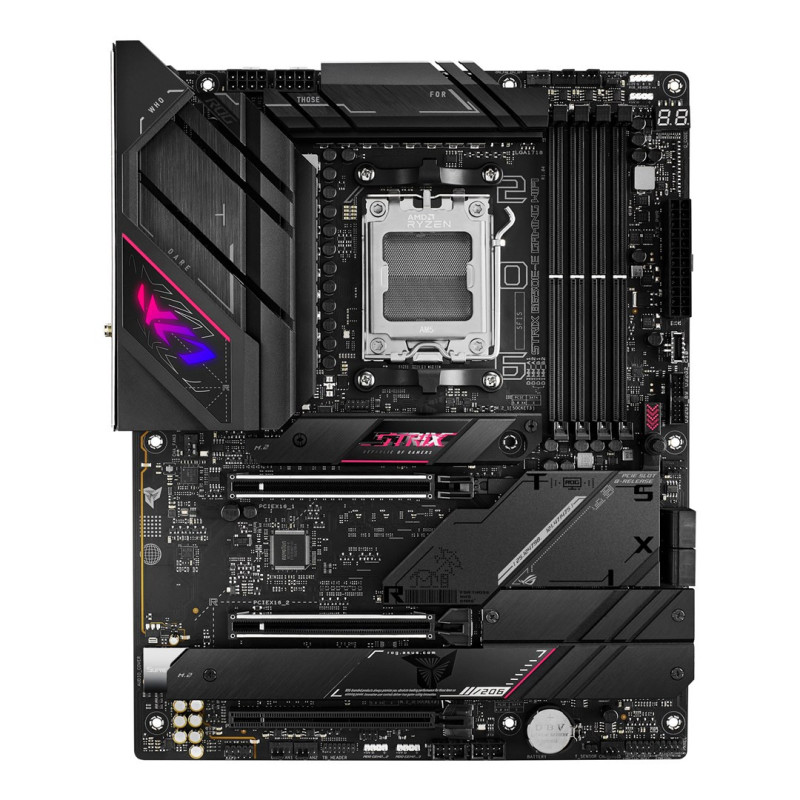

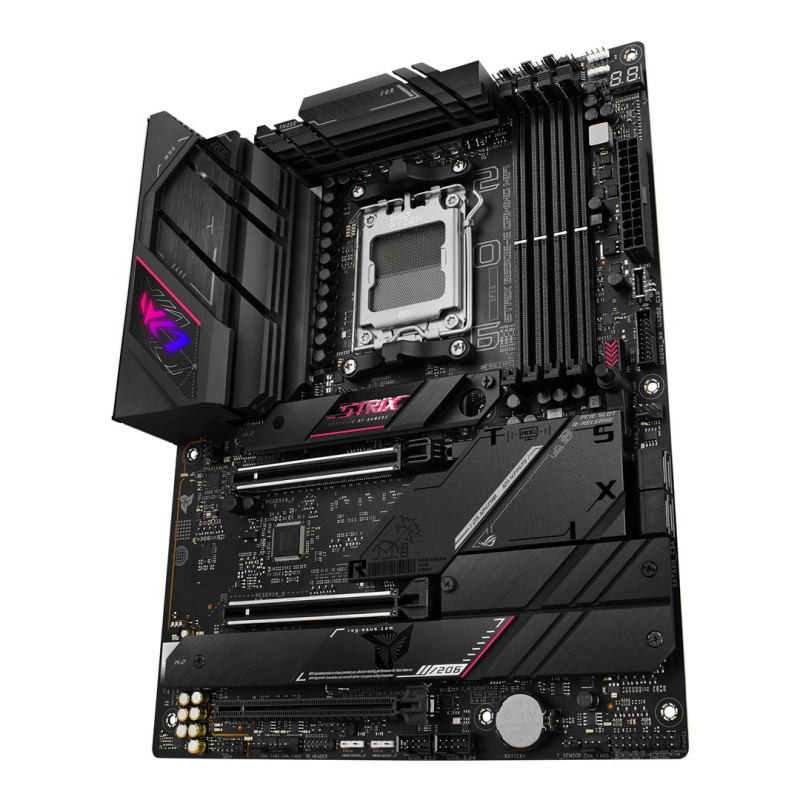

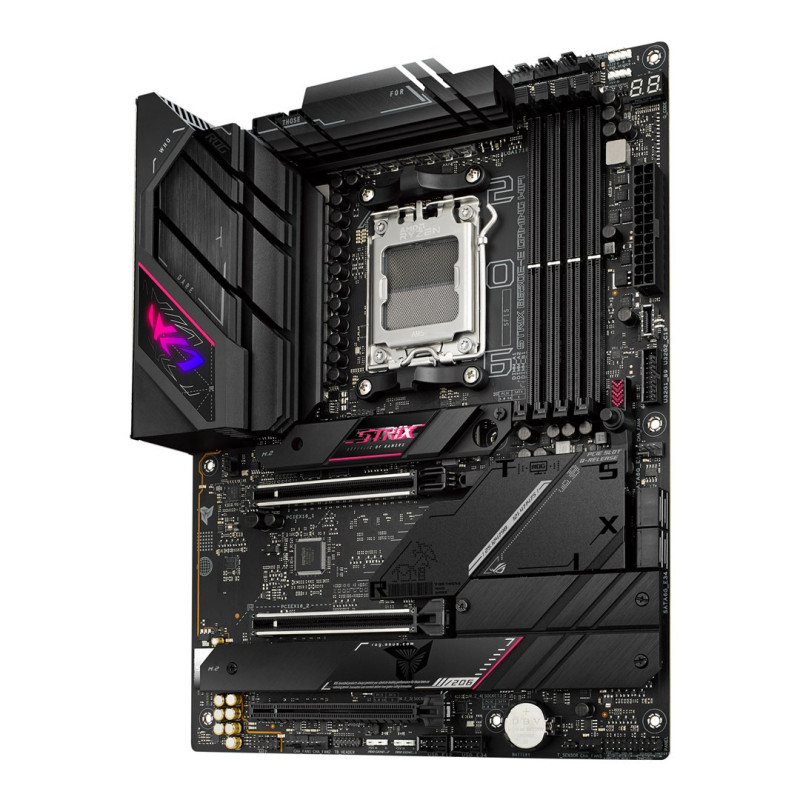

Motherboard - ASUS ROG Strix B650E-E Gaming WiFi AMD B650 AM5 ATX
Product reference:
14-4711081906209
The ASUS ROG STRIX B650E-E GAMING WIFI motherboard offers excellent performance with 4 SATA III connectors and M.2 support, as well as six USB 3.2 Gen 2 Type-A ports and a PCI Express x16 slot for fast data transfer and expansion capabilities.
Motherboard - ASUS ROG Strix B650E-E Gaming WiFi AMD B650 AM5 ATX
Product reference:
14-4711081906209
The ASUS ROG STRIX B650E-E GAMING WIFI motherboard offers excellent performance with 4 SATA III connectors and M.2 support, as well as six USB 3.2 Gen 2 Type-A ports and a PCI Express x16 slot for fast data transfer and expansion capabilities.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
ASUS ROG Strix B650E-E Gaming WiFi AM5 Socket
This motherboard is a high-performance solution for gaming and content creation. It features an AM5 socket that supports AMD Ryzen 7000 series processors and 4 SATA III connectors for storage expansion.
Main features
- UEFI AMI BIOS with Clear CMOS button
- Four M.2 (M) slots for SSD and PCIe devices
- Two PCI Express x16 (Gen 5.x) connectors for graphics cards and expansion cards
- One Ethernet LAN (RJ-45) port and one microphone input port on the rear
Processor | |
|---|---|
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 series |
| Processor manufacturer | AMD |
Image | |
| Support for parallel processing technology | Not supported |
Features | |
| Motherboard chip | AMD B650 |
| Audio chip | Realtek ALC4080 |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | AMD |
| Supported Windows operating systems | Windows 11 x64, Windows 10 |
| Motherboard format type | ATX |
| Power supply type | ATX |
Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slot type | DIMMs |
| Supported memory frequency (max) | 6400MHz |
| Supported memory frequencies | 6200, 5200, 6000, 5600, 5000, 4800, 6400, 5800, 5400 |
| Unbuffered memory | Yes |
| Maximum internal memory | 128GB |
| Memory channels | Dual channel |
Weight and dimensions | |
| Depth | 244 mm |
| Width | 305mm |
Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth version | 5.2 |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Wi-Fi standards | Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax), 802.11g, 802.11b, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Internal I/O | |
| RGB LED pin connector | Yes |
| 12V power connector | Yes |
| CPU cooler connector | Yes |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| Thunderbolt connectors | 1 |
| ATX power connector (24-pin) | Yes |
| Number of chassis cooler connections | 5 |
| Number of SATA III connectors | 4 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) ports | 1 |
| Number of USB 2.0 ports | 2 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) ports | 1 |
BIOS | |
| BIOS type | UEFI AMI |
| Clear CMOS button | Yes |
Packaging details | |
| Package height | 77 mm |
| Package depth | 273 mm |
| Package weight | 2.44 kg |
| Package width | 343 mm |
Package contents | |
| Cables included | SATA |
| User manual | Yes |
Storage controls | |
| Supported storage device types | HDDs and SSDs |
| Supported storage device interfaces | M.2, SATA III |
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
Rear I/O ports | |
| Line-in | Yes |
| Headphone outputs | 1 |
| Number of USB 3.2 Gen 2x2 Type-C ports | 1 |
| S/PDIF out port | Yes |
| Number of HDMI ports | 1 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone input | Yes |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 6 |
| DisplayPort version | 1.4 |
| Number of DisplayPorts | 1 |
| HDMI version | 2.1 |
| Number of USB 2.0 ports | 4 |
Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| Number of M.2 (M) slots | 4 |
Other features | |
| Back-to-BIOS button | Yes |
Safety warning | |
| Warnings | Do not disassemble to avoid damage to internal components and voiding the warranty. |
