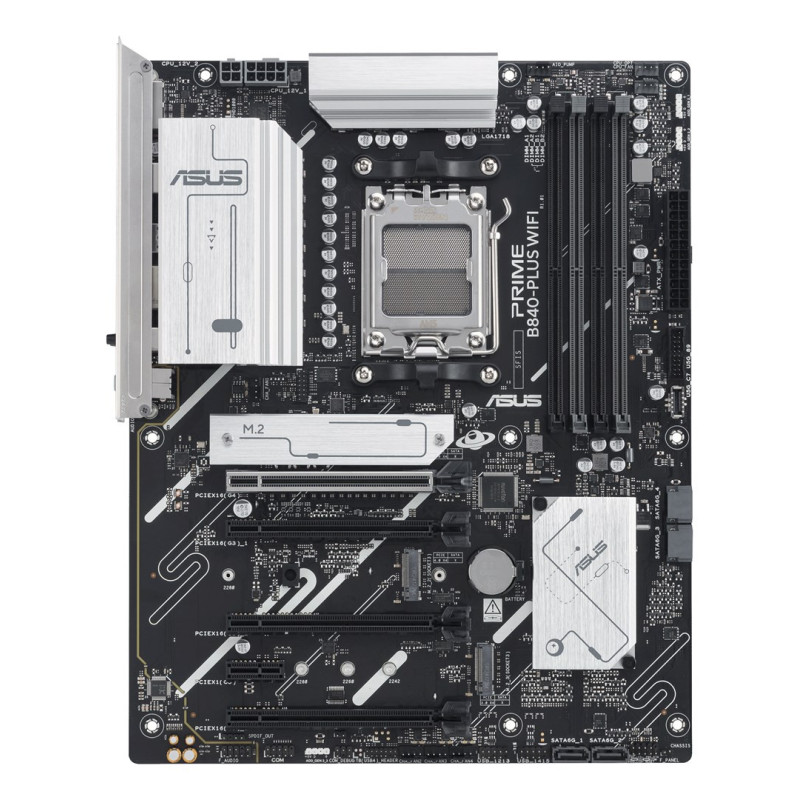

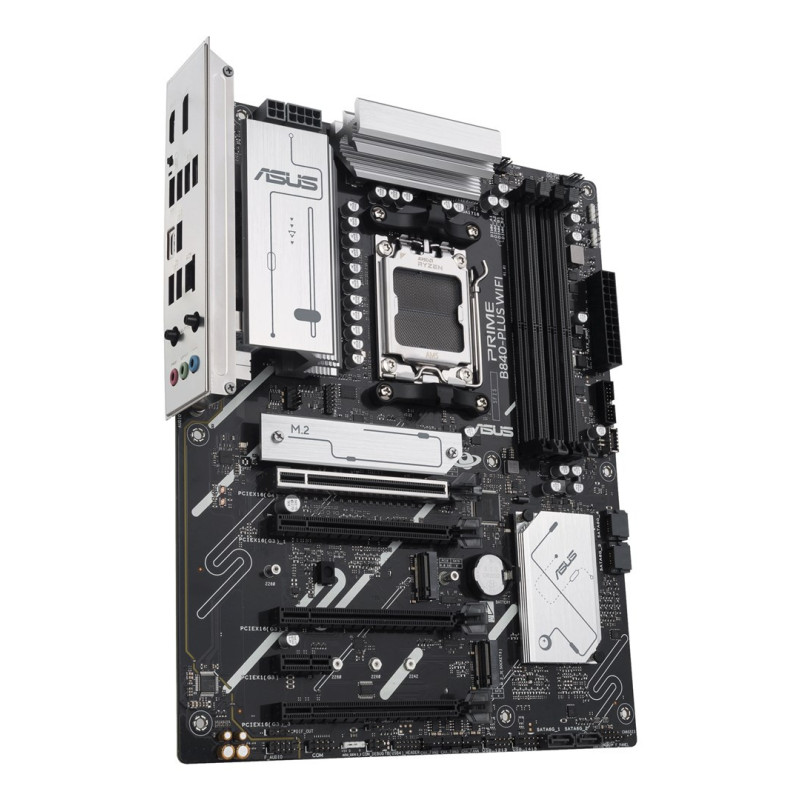

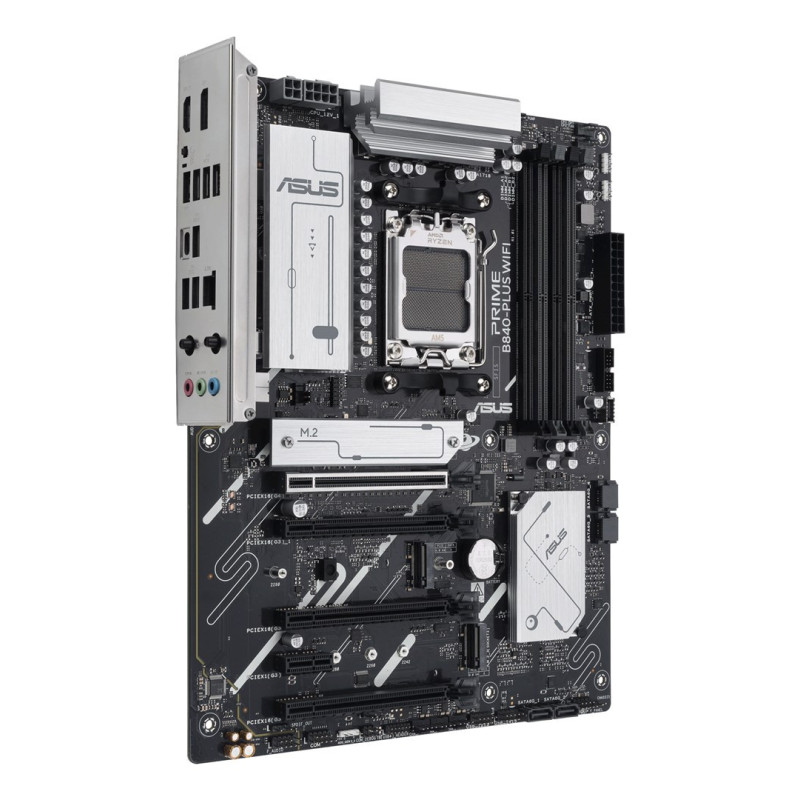

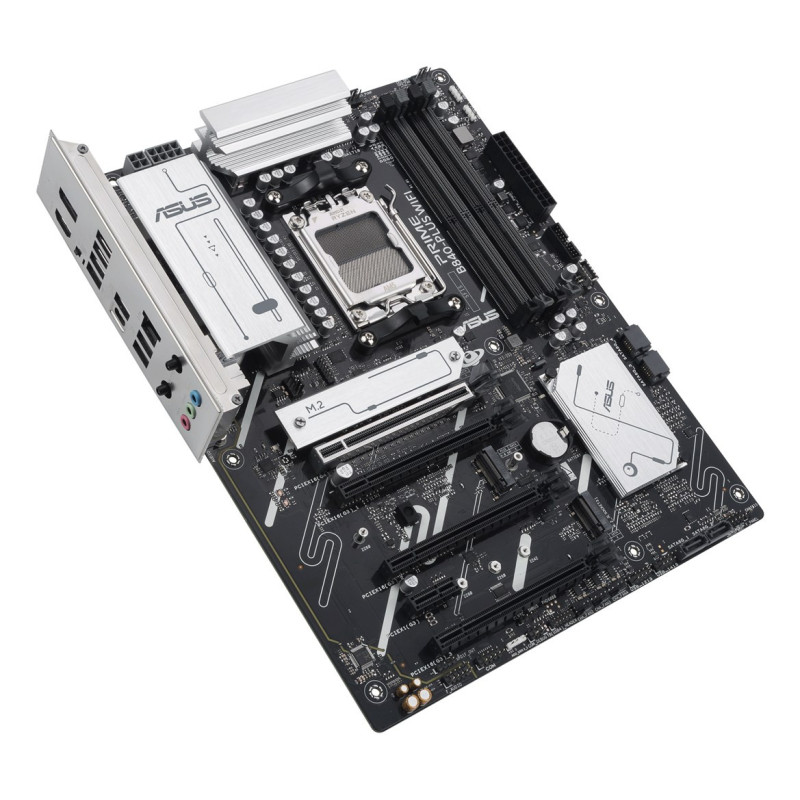

ASUS PRIME B840-PLUS WIFI AMD B840 Socket AM5 ATX
Product reference:
6-90MB1IZ0-M0EAY0
ASUS PRIME B840-PLUS WIFI AMD B840 Socket AM5 ATX
ASUS PRIME B840-PLUS WIFI AMD B840 Socket AM5 ATX
Product reference:
6-90MB1IZ0-M0EAY0
ASUS PRIME B840-PLUS WIFI AMD B840 Socket AM5 ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Product colour | Black, Aluminium |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B840 |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 11, Windows 10 x64 |
| ECC сompatibility | ECC & Non-ECC |
| Unbuffered memory | Yes |
| Maximum internal memory | 192 GB |
| Memory channels | Dual-channel |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Width | 305 mm |
| Depth | 244 mm |
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| 12V power connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Thunderbolt headers | 1 |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| USB 2.0 connectors | 2 |
| ATX Power connector (24-pin) | Yes |
| S/PDIF out connector | Yes |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 4 |
| BIOS type | UEFI AMI |
| Antenna included | Yes |
| Screws included | Yes |
| Cables included | SATA |
| Number of HDDs supported | 4 |
| RAID levels | 1, 10, 5 |
| RAID support | Yes |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 7 |
| WiFi-AP antenna jack | 1 |
| DisplayPorts quantity | 1 |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 3rd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 3.0 |
| Number of M.2 (M) slots | 3 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 3 |
| Warnings | Dispose of in accordance with local regulations for electronic waste., Do not disassemble to avoid damage to internal components and loss of warranty., Avoid contact with liquids to prevent electronic damage. |
