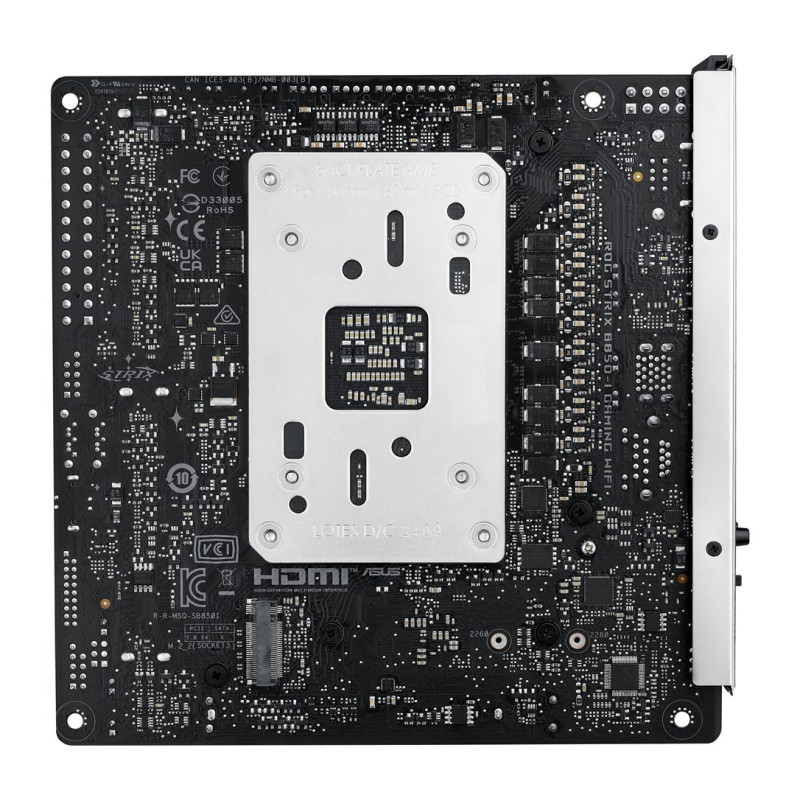

ASUS ROG STRIX B850-I GAMING WIFI AMD B850 Socket AM5 mini ITX
Product reference:
6-90MB1K30-M0EAY0
ASUS ROG STRIX B850-I GAMING WIFI AMD B850 Socket AM5 mini ITX
ASUS ROG STRIX B850-I GAMING WIFI AMD B850 Socket AM5 mini ITX
Product reference:
6-90MB1K30-M0EAY0
ASUS ROG STRIX B850-I GAMING WIFI AMD B850 Socket AM5 mini ITX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Supported processor sockets | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 pixels |
| On-board graphics card | No |
| Motherboard chipset | AMD B850 |
| Power source type | ATX |
| Windows operating systems supported | Windows 11 |
| Motherboard form factor | mini ITX |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC4080 |
| Motherboard chipset family | AMD |
| Product colour | Black |
| ECC сompatibility | ECC & Non-ECC |
| Unbuffered memory | Yes |
| Memory channels | Dual-channel |
| Maximum internal memory | 96 GB |
| Supported memory clock speed (max) | 8400 MHz |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Depth | 170 mm |
| Width | 170 mm |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Bluetooth version | 5.4 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| Number of water pump connectors | 1 |
| Number of RGB LED pin headers | 2 |
| Number of CPU fan connectors | 1 |
| Number of temperature sensor headers | 1 |
| USB 2.0 connectors | 1 |
| Number of SATA III connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Thunderbolt headers | 1 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of chassis fan connectors | 4 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Front panel connector | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Clear CMOS button | Yes |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| Antenna included | Yes |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 4 |
| Number of HDDs supported | 2 |
| Digital audio optical out | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| S/PDIF out port | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| Line-in | Yes |
| WiFi-AP antenna jack | 2 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Weight | 1.06 kg |
| Quick installation guide | Yes |
| Warnings | Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste. |
