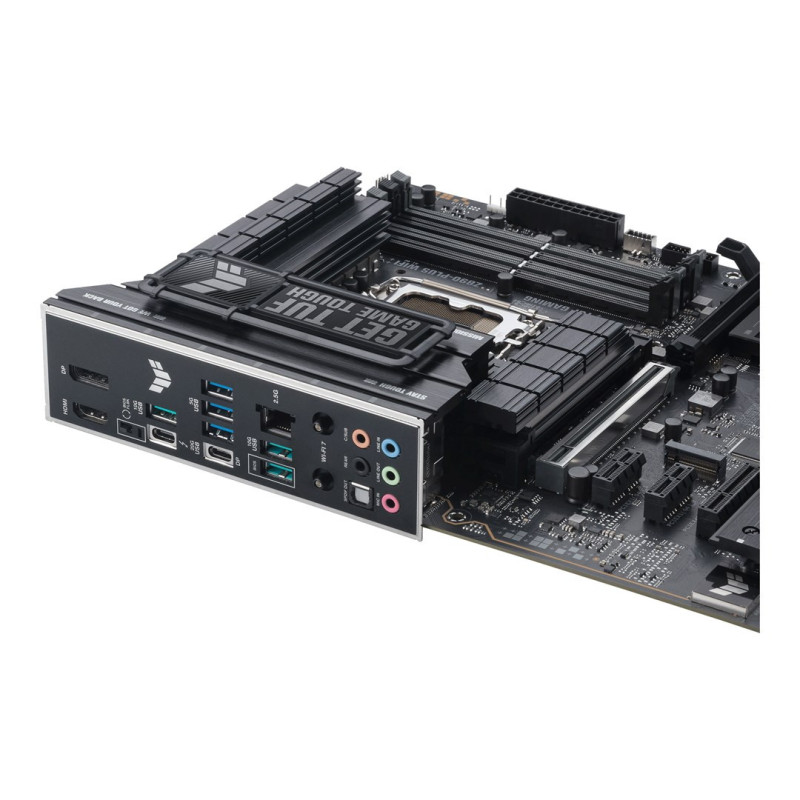

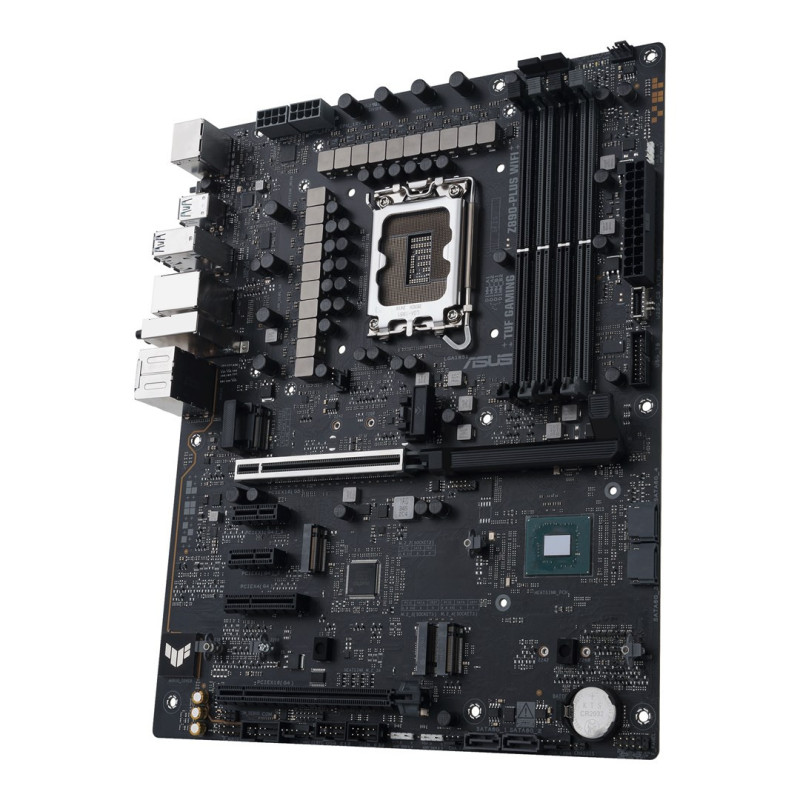

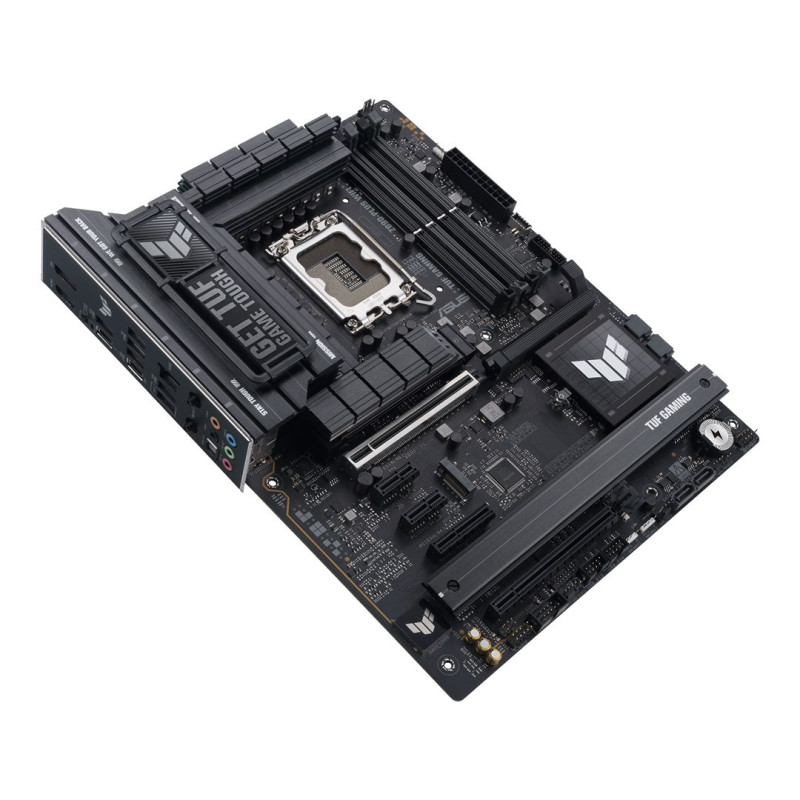

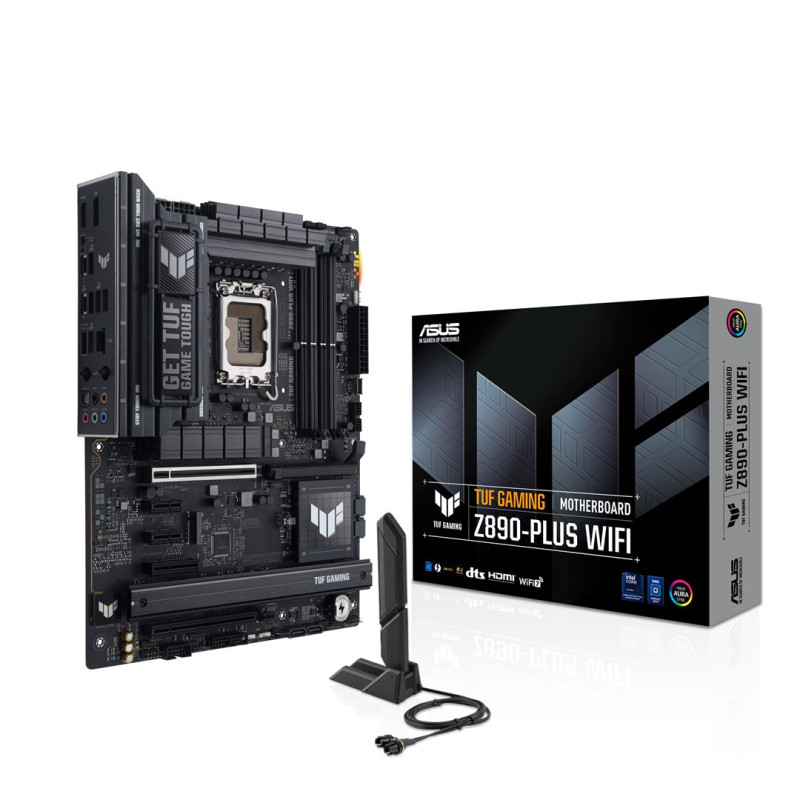

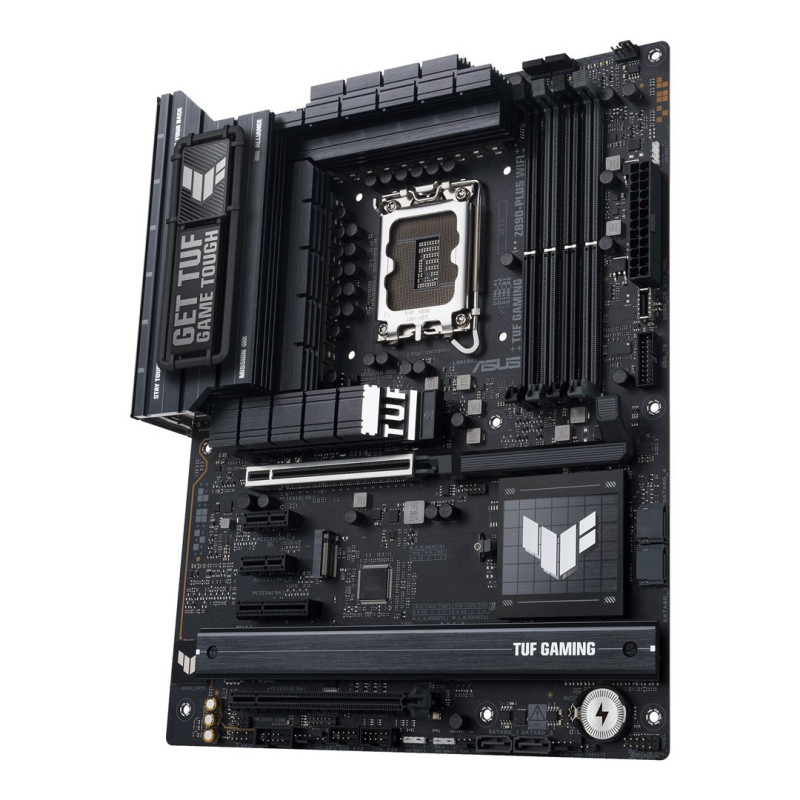

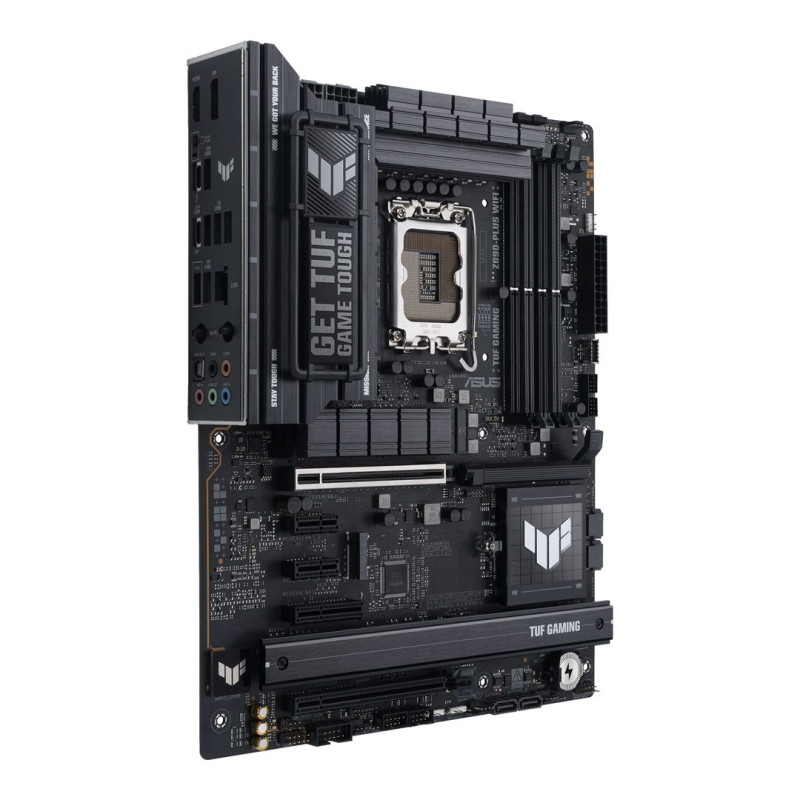

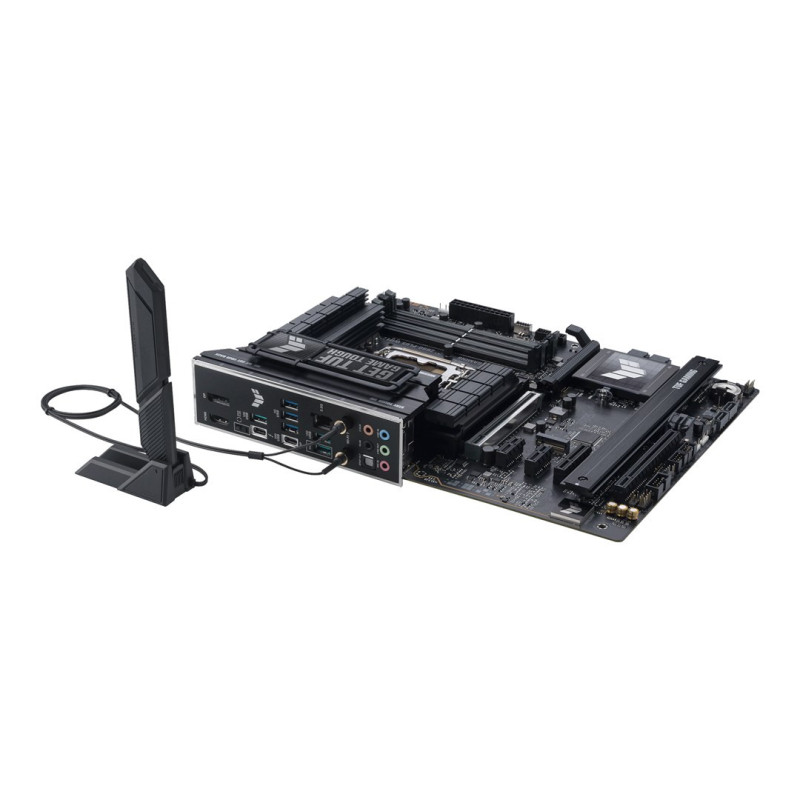

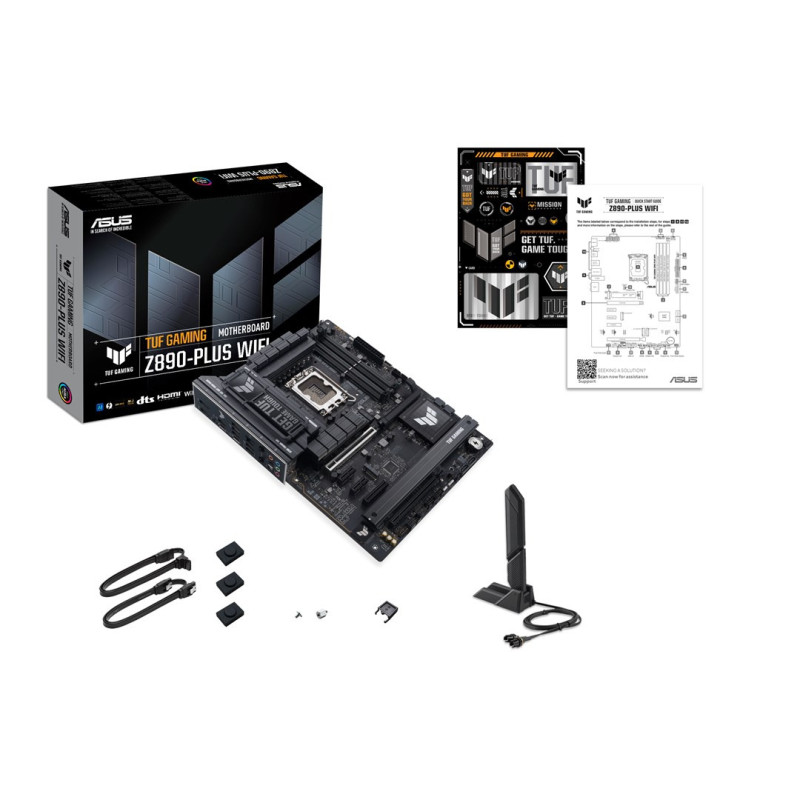

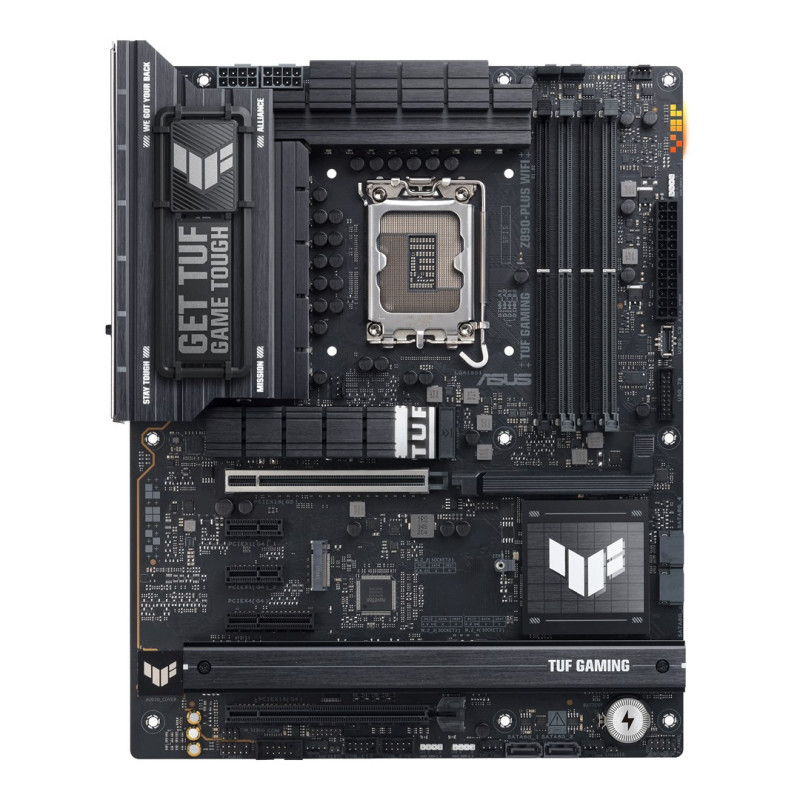

ASUS TUF GAMING Z890-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) ATX
Product reference:
6-90MB1IQ0-M0EAY0
ASUS TUF GAMING Z890-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) ATX
ASUS TUF GAMING Z890-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) ATX
Product reference:
6-90MB1IQ0-M0EAY0
ASUS TUF GAMING Z890-PLUS WIFI Intel Z890 LGA 1851 (Socket V1) ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Processor socket | LGA 1851 (Socket V1) |
| On-board graphics card | No |
| Parallel processing technology support | Not supported |
| Audio output channels | 7.1 channels |
| Cooling type | Passive |
| Windows operating systems supported | Windows 11 |
| Motherboard chipset | Intel Z890 |
| Audio chip | Realtek ALC1220P |
| Motherboard chipset family | Intel |
| Power source type | ATX |
| Product colour | Black |
| Motherboard form factor | ATX |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Supported memory clock speed (max) | 8600 MHz |
| Number of memory slots | 4 |
| Maximum internal memory | 192 GB |
| ECC сompatibility | Non-ECC |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Width | 305 mm |
| Depth | 244 mm |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Ethernet LAN | Yes |
| Bluetooth version | 5.4 |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Chassis intrusion connector | Yes |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| EPS power connector (8-pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| Thunderbolt headers | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| CPU fan connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of chassis fan connectors | 4 |
| USB 2.0 connectors | 2 |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| RAID levels | 10, 1, 5 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| Number of storage drives supported | 8 |
| Line-in | Yes |

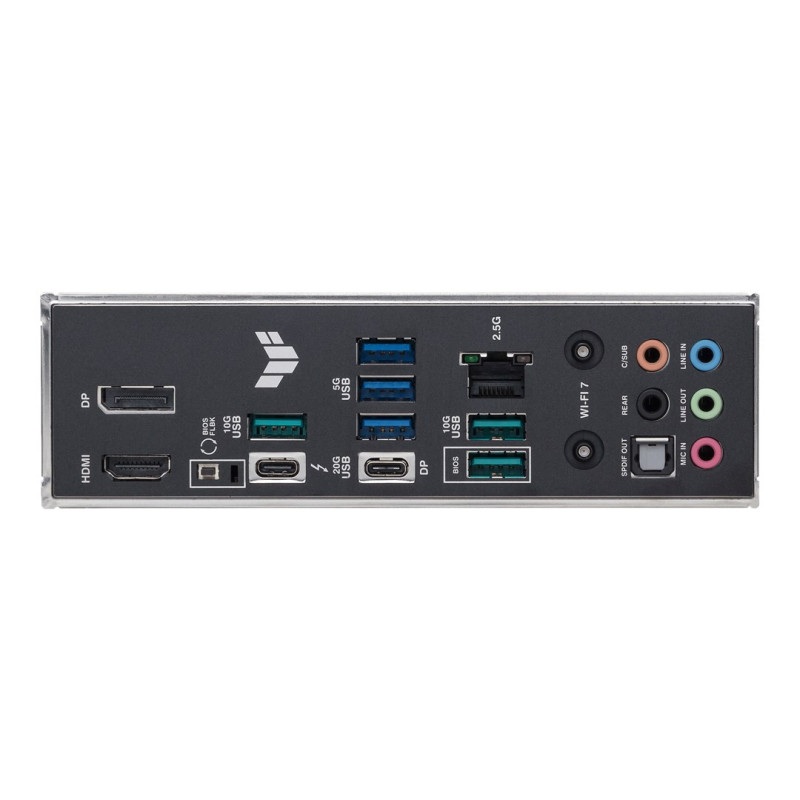

| DisplayPort version | 1.4 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| WiFi-AP antenna jack | 2 |
| Thunderbolt ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPorts quantity | 1 |
| S/PDIF out port | Yes |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x4 (Gen 1.x) slots | 2 |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| Quick installation guide | Yes |
| Back-to-BIOS button | Yes |
