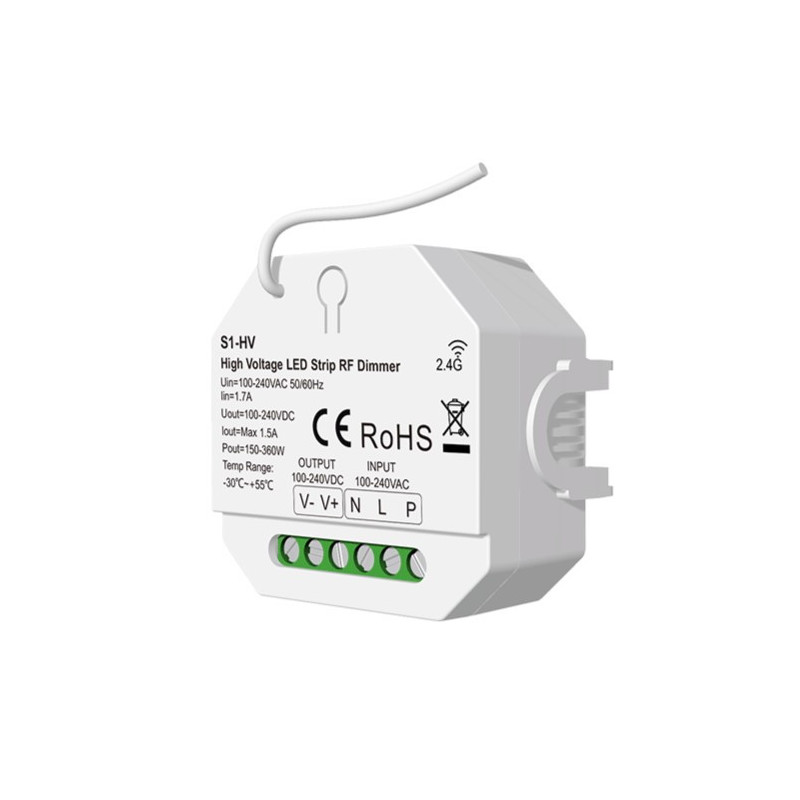

Lighting Controller - S1-HV Dimmer 1Ch 230V 150-360W Push-Dimm
Product reference: 14-9990001084585

High-voltage LED strip controller for single-color strips, controls up to 25 m with a maximum power of 360 W. Offers smooth dimming with 4096 levels and is compatible with RF 2.4 GHz remote controllers.

Apšvietimo Valdiklis - S1-HV Dimeris 1Ch 230V 150-360W Push-Dimm

Lighting Controller - S1-HV Dimmer 1Ch 230V 150-360W Push-Dimm

Product reference: 14-9990001084585

High-voltage LED strip controller for single-color strips, controls up to 25 m with a maximum power of 360 W. Offers smooth dimming with 4096 levels and is compatible with RF 2.4 GHz remote controllers.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
3210 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
4 - 5
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

S1-HV Dimmer, 1Ch, 230V, 150-360W, Push-Dimm


High voltage LED strip dimmer for single color strips, controls up to 25m with a maximum power of 360W. Offers smooth dimming with 4096 levels and compatibility with RF 2.4 GHz remote controllers.


  • Controls single-color LED strips up to 25 meters with a maximum power of 360W.
  • Offers smooth dimming with 4096 levels from 0 to 100% and a fade time of up to 3 seconds.
  • Compatible with RF 2.4 GHz remote controls, allowing you to connect up to ten remote controls.
  • Compact design fits into standard wall mounting boxes, with easy Push-Dimm function.

Features

Product type Lighting controller
Model S1-HV Dimmer

Specifications

Channel number 1
Input voltage 100V-240V AC
Input current 1.7A
Output voltage 100V-240V AC
Output current 1.5A
Maximum output power 150-360W
PWM frequency 2kHz
Operating distance Up to 30m (in open space)
Operating temperature -30~+55°C
Dimensions 56 x 49.5 x 28 mm
Weight 67g
Color White

Certificates

Compliance CE, EMC, LVD, RED, RoHS
