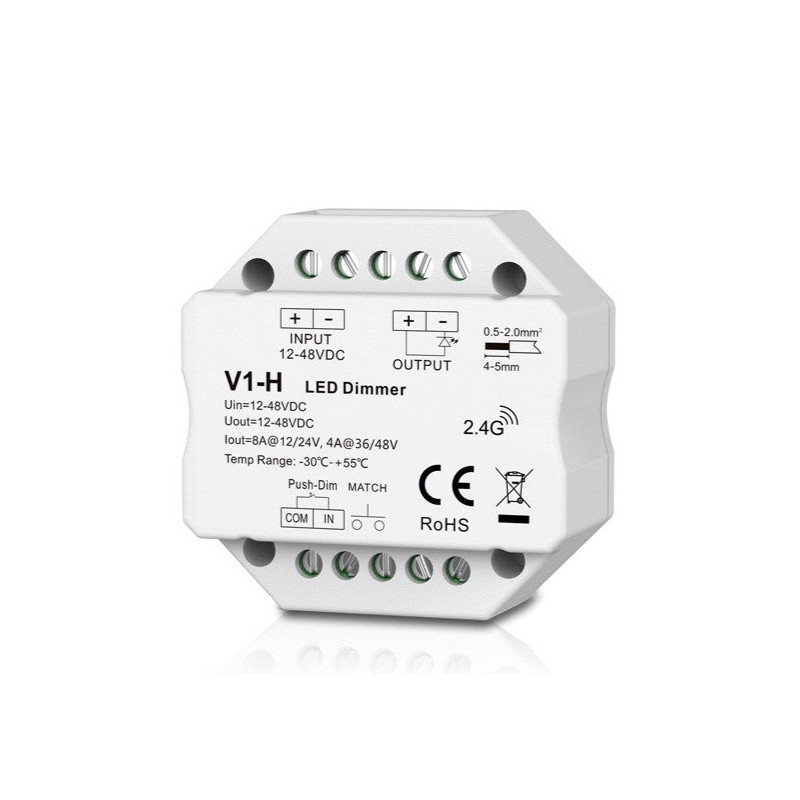

LED Controller - V1-H 12-48V 8A Push-Dimm
Product reference: 14-9990001084554

The V1-H controller operates at 12-48V DC with a maximum output of 8A and supports smooth dimming with 4096 levels. It features a Push-Dimm function, compatibility with RF remote controls, and built-in protection against reverse polarity and short circuit.

LED Valdiklis - V1-H 12-48V 8A Push-Dimm

LED Controller - V1-H 12-48V 8A Push-Dimm

Product reference: 14-9990001084554

The V1-H controller operates at 12-48V DC with a maximum output of 8A and supports smooth dimming with 4096 levels. It features a Push-Dimm function, compatibility with RF remote controls, and built-in protection against reverse polarity and short circuit.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
2479 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
4 - 5
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

V1-H Controller, 12-48V, 1x 8A, Push-Dimm


The V1-H Controller operates at 12-48V DC with a maximum output of 8A and supports smooth dimming with 4096 levels. It features Push-Dimm function, compatibility with RF remote controllers and built-in protection against reverse polarity and short circuit.


  • Compatible with single-color LED strips and panels, offering smooth dimming with 4096 levels from 0 to 100%.
  • The Push-Dimm function allows for easy control using a standard momentary switch.
  • Supports RF 2.4 GHz remote controls, allowing up to ten remote controls to be connected and synchronized operation.
  • The compact design fits into standard wall mounting boxes, with integrated protection against reverse polarity and short circuit.

Features

Product Type LED Controller
Model V1-H

Specifications

Voltage 12V - 48V DC
Output Voltage 12V - 48V DC
Output Current 8A @ 12/24V; 4A @ 36/48V
Power 96W @ 12V; 192W @ 24V; 144W @ 36V; 192W @ 48V
PWM Frequency 500Hz
Grayscale 4096 levels
Adjustment Range 0-100%
Regulation Curve Logarithmic
Operating Distance Up to 30m (in open space)
Protection Class IP20 (not waterproof)
Suitable Wire Cross-Section 0.5-2 mm²
Operating Temperature -30°C to +55°C
Dimensions 52 x 52 x 26 mm
Color White
Weight 49g

Certificates

Certificates CE, EMC, RoHS
