Network Video Recorder - Hikvision DS-7604NXI-K1 / 4P 4CH 4PoE 10TB 1U Black
Product reference:
14-6936422130183
The Hikvision DS-7604NXI-K1/4P(D) network video recorder supports up to 4 video input channels and has a maximum resolution of 3840 x 2160 pixels. It has 4 Power over Ethernet (PoE) ports and can install one hard drive with a maximum capacity of 10 TB.
Network Video Recorder - Hikvision DS-7604NXI-K1 / 4P 4CH 4PoE 10TB 1U Black
Product reference:
14-6936422130183
The Hikvision DS-7604NXI-K1/4P(D) network video recorder supports up to 4 video input channels and has a maximum resolution of 3840 x 2160 pixels. It has 4 Power over Ethernet (PoE) ports and can install one hard drive with a maximum capacity of 10 TB.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

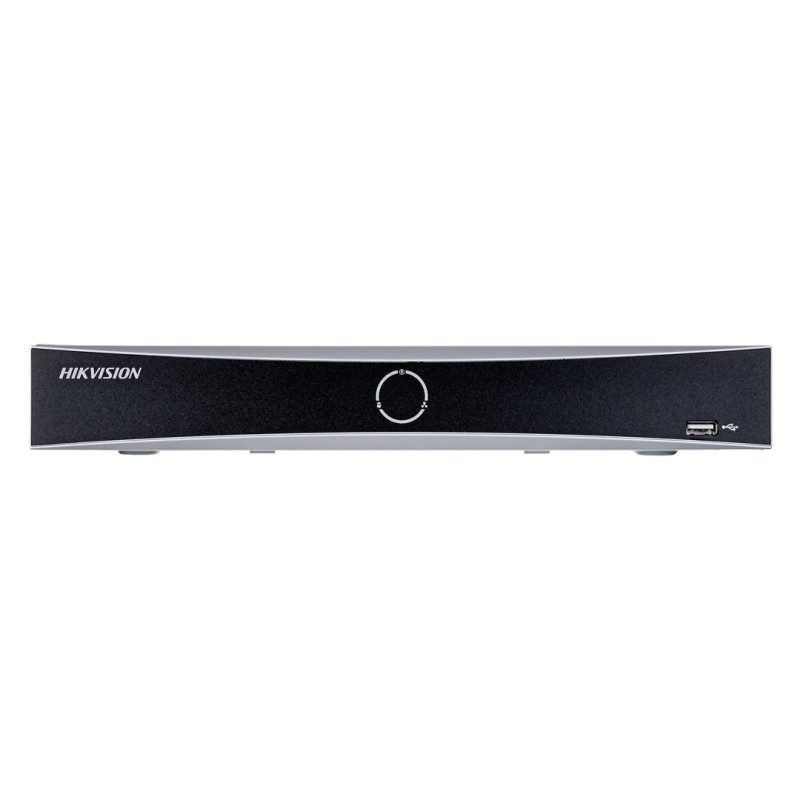

Hikvision DS-7604NXI-K1/4P(D) Network Video Recorder Black
The Hikvision DS-7604NXI-K1/4P(D) network video recorder supports up to 4 video input channels and has a maximum resolution of 3840 x 2160 pixels. It has 4 Power over Ethernet (PoE) ports and can accommodate one hard drive with a maximum capacity of up to 10 TB.
- Supports up to 4 video input channels with a maximum resolution of 3840 x 2160 pixels.
- Equipped with 4 Power over Ethernet (PoE) ports, allowing you to easily connect cameras.
- Compact 1U mounting design, ideal for space saving.
- Uses advanced video formats, including H.265 and H.264, for efficient storage and playback.
Features | |
|---|---|
| Certificates of conformity | Federal Communications Commission (FCC), CE |
| Installation capacity | 1U |
| Product color | Black |
| Rack mounting | Yes |
Electricity | |
| Output voltage | 48V |
| Typical energy consumption | 10W |
| Output current | 1.35 A |
| Total Power over Ethernet (PoE) budget | 50W |
Operating conditions | |
| Operating temperature | -10 - 55 °C |
| Operating relative humidity | 10 - 90% |
Weight and dimensions | |
| Height | 48mm |
| Weight | 1kg |
| Depth | 240mm |
| Width | 320mm |
Operation | |
| Facial recognition | Yes |
| Output bandwidth | 80 Mbps |
| Input bandwidth | 40 Mbps |
| Supported video formats | H.265, H.264, H.265+, H.264+ |
| Maximum frame rate | 30fps |
Wireless LAN features | |
| Wi-Fi | No |
Ports and interfaces | |
| Network standards | IEEE 802.3af, IEEE 802.3at |
| Audio RCA inputs | 1 |
| Power over Ethernet (PoE) | Yes |
| Number of USB 2.0 ports | 2 |
| Ethernet LAN data transfer speed | 10, 100 |
| VGA (D-Sub) output ports | 1 |
| HDMI output | Yes |
| Audio RCA outputs | 1 |
| Ethernet LAN (RJ-45) ports | 5 |
| Number of internal SATA ports | 1 |
| Number of HDMI ports | 1 |
| Power over Ethernet (PoE) ports quantity | 4 |
| Supported network protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS |
Hard drive | |
| Number of HDDs supported | 1 |
| Maximum capacity | 10TB |
| HDD interface | SATA |
