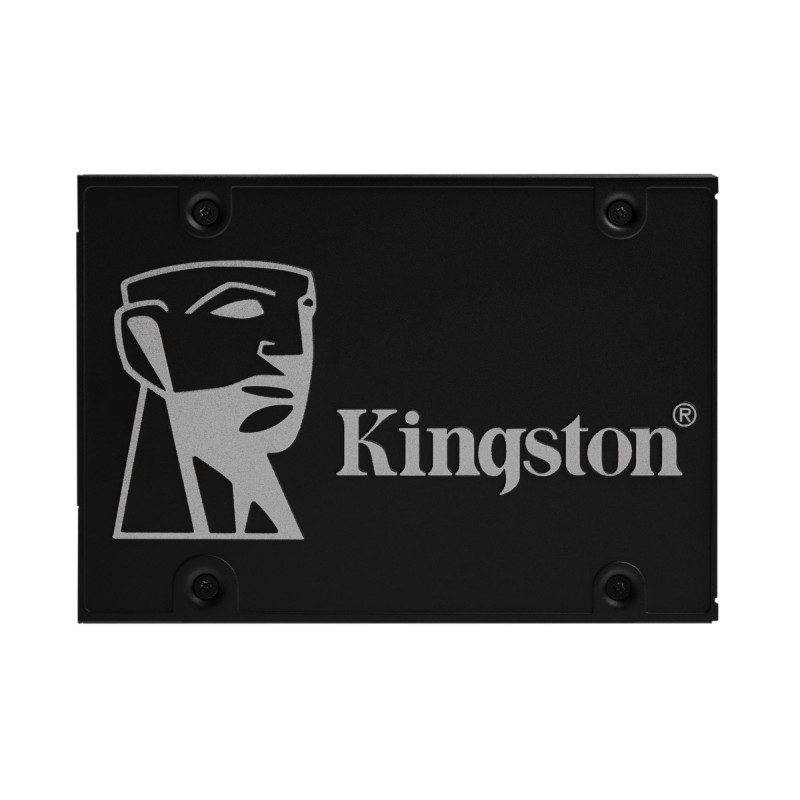

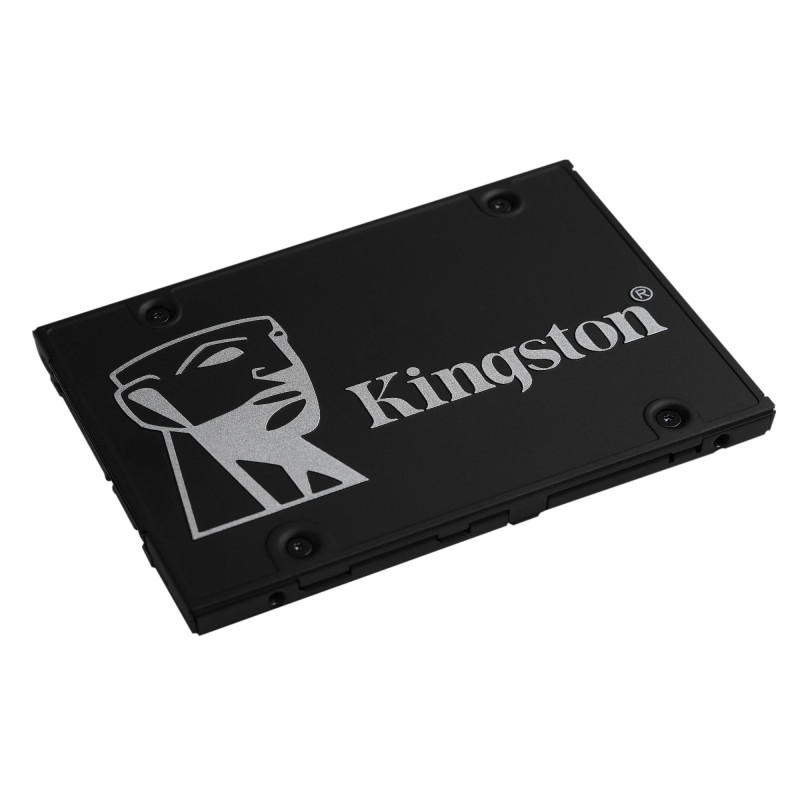

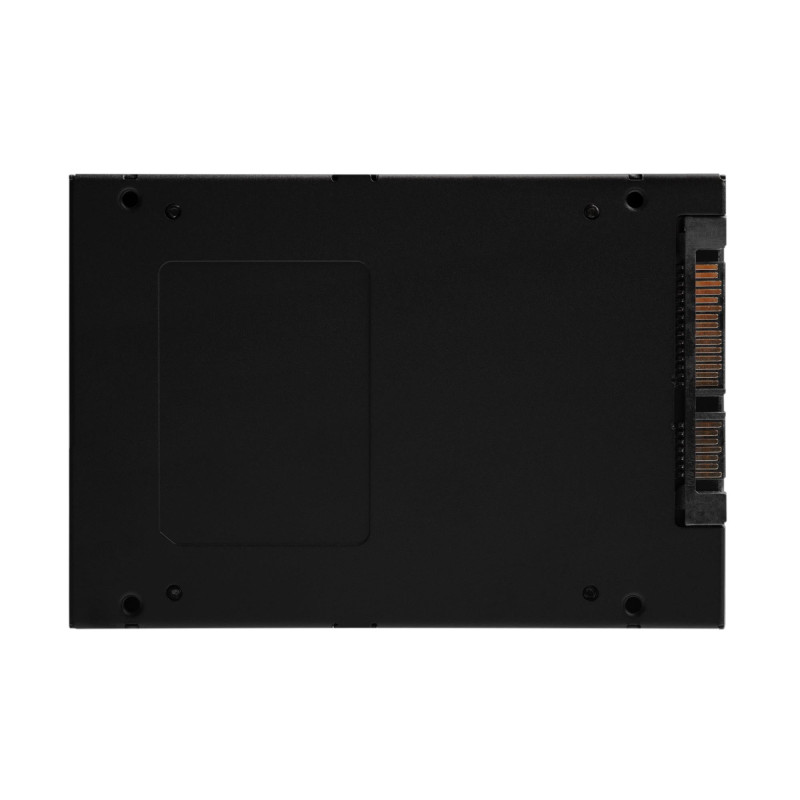

SSD, KINGSTON, KC600, 512GB, SATA 3.0, TLC, Write speed 520 MBytes / sec, Read speed 550 MBytes / sec, 2,5", TBW 300 TB,
Product reference: 2-740617300253

SSD, KINGSTON, KC600, 512GB, SATA 3.0, TLC, Write speed 520 MBytes / sec, Read speed 550 MBytes / sec, 2,5", TBW 300 TB,

Product reference: 2-740617300253
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
15059
161,92 €
Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

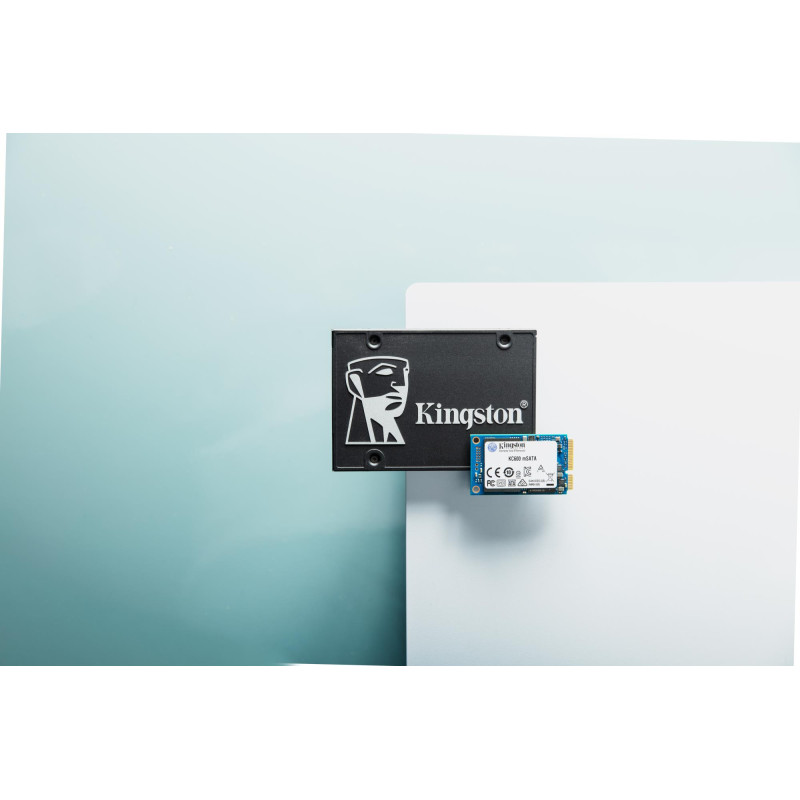

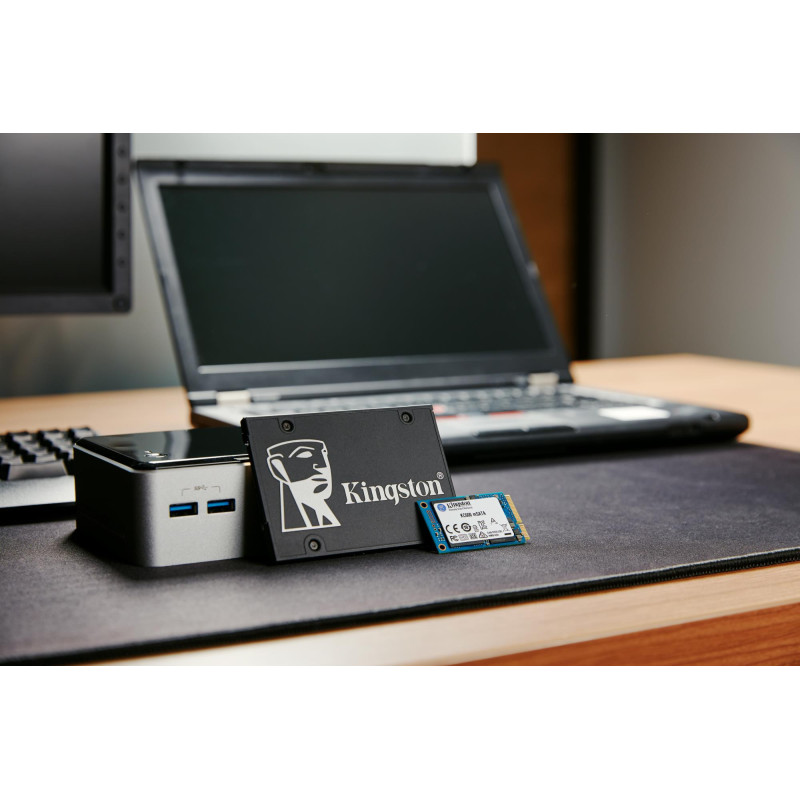

Kingston's KC600 is a full-capacity SSD designed to provide remarkable performance and optimised to provide functional system responsiveness with incredible boot, loading and transfer times. It comes in both 2.5" and mSATA form factors using SATA Rev 3.0 interface with backwards compatibility. The KC600 utilises the latest 3D TLC NAND technology while supporting a full security suite that includes AES 256-bit hardware encryption, TCG Opal and eDrive. It features read/write speeds of up to 550/520MB/s* to efficiently store your data up to 2TB**. It's available in a bundle kit that provides everything you need for a smooth and easy desktop and notebook installation and upgrade.

Remarkable performance
Using the latest 3D TLC NAND technology, it enables read/write speeds of up to 550/520MB/s.*

Full-security suite
Protect and secure your data with Kingston's self-encrypting drive.

Easy installation/upgrade

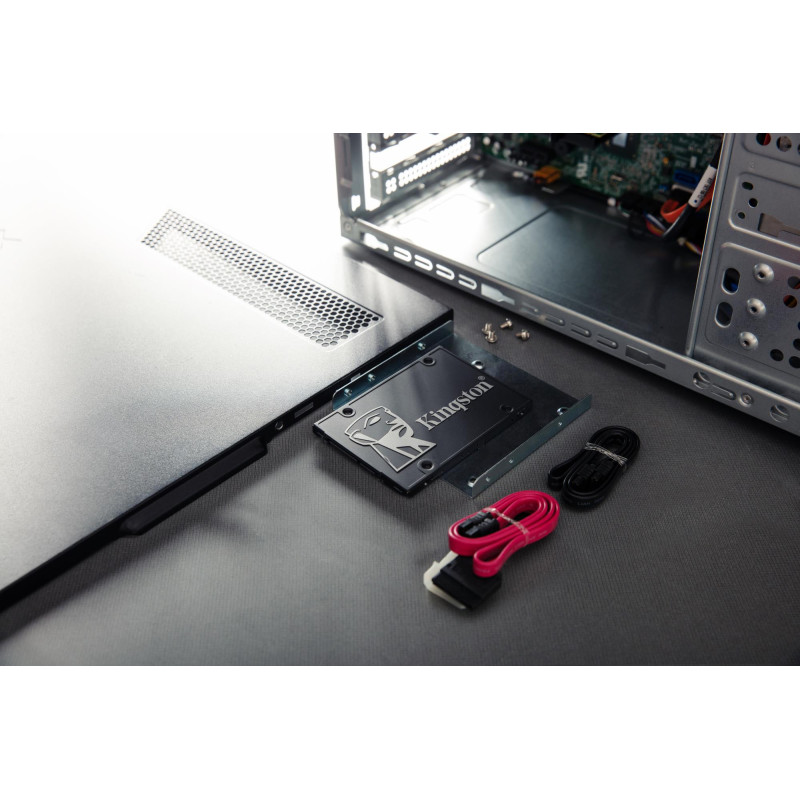

KC600 is available in an upgrade bundle kit that has everything you need to install your drive easily.

Multiple capacities
KC600 is available in a range of full capacities from 256GB to 2TB.**

  • Remarkable performance
  • Features the latest 3D TLC NAND technology
  • Supports a full security suite (TCG Opal, AES 256-bit, eDrive)
  • Available in range of full capacities

* Some of the listed capacity on a Flash storage device is used for formatting and other functions and is thus not available for data storage. As such, the actual available capacity for data storage is less than what is listed on the products. For more information, go to Kingston's Flash memory guide at kingston.com/flashguide.
** Based on "out-of-box performance" using a SATA Rev 3.0 motherboard. Speed may vary due to host hardware, software and usage. IOMETER random 4K read/write is based on 8GB partition.
*** Limited warranty based on 5 years or "SSD Life Remaining" which can be found using the Kingston SSD Manager (Kingston.com/SSDManager). A new, unused product will show a wear indicator value of one hundred (100), whereas a product that has reached its endurance limit of program erase cycles will show a wear indicator value of one (1). See Kingston.com/wa for details.
**** Total Bytes Written (TBW) is derived from the JEDEC Client Workload (JESD219A). ***** Operating system software support: Windows® 10, 8.1, 8, 7 (SP1).


Summary Kingston Technology 512G SSD KC600 SATA3 2.5". SSD capacity: 512 GB, SSD form factor: 2.5", Read speed: 550 MB/s, Write speed: 520 MB/s, Data transfer rate: 6 Gbit/s, Component for: PC/Laptop
Vendor Homepage https://www.kingston.com/
Unit Box Height 0.01
Unit Box Length 0.183
Unit Box Width 0.13
Component for PC/Laptop
Controller type SMI SM2259
Data transfer rate 6 Gbit/s
Hardware encryption Yes
Interface Serial ATA III
Mean time between failures (MTBF) 1000000 h
Memory type 3D TLC
Random read (4KB) 90000 IOPS
Random write (4KB) 80000 IOPS
Read speed 550 MB/s
Security algorithms 256-bit AES
SSD capacity 512 GB
SSD form factor 2.5"
Write speed 520 MB/s
Power consumption (average) 0.2 W
Power consumption (idle) 0.06 W
Power consumption (read) 1.3 W
Power consumption (write) 3.2 W
Depth 100.1 mm
Height 7 mm
Weight 40 g
Width 69.9 mm
Package depth 9.14 mm
Package height 184.15 mm
Package weight 62.19 g
Package width 129.54 mm
Non-operating vibration 20 G
Operating temperature (T-T) 0 - 70 °C
Operating vibration 2.17 G
Storage temperature (T-T) -40 - 85 °C
Country of origin China
Harmonized System (HS) code 84717070
Master (outer) case gross weight 699.95 g
Master (outer) case height 69.85 mm
Master (outer) case length 203.2 mm
Master (outer) case width 135.89 mm
Products per master (outer) case 10 pc(s)
SSD series KC600
Units per Shipping Box 1
Unit Calculated Volume 0.0002379 cubm
Unit Calculated Weight 0.06 kg
