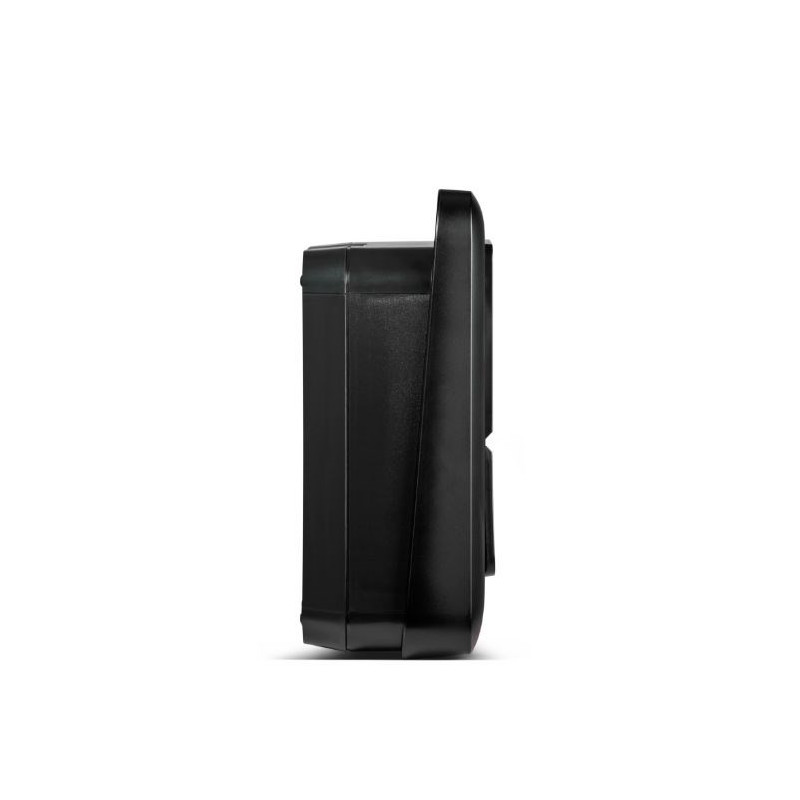

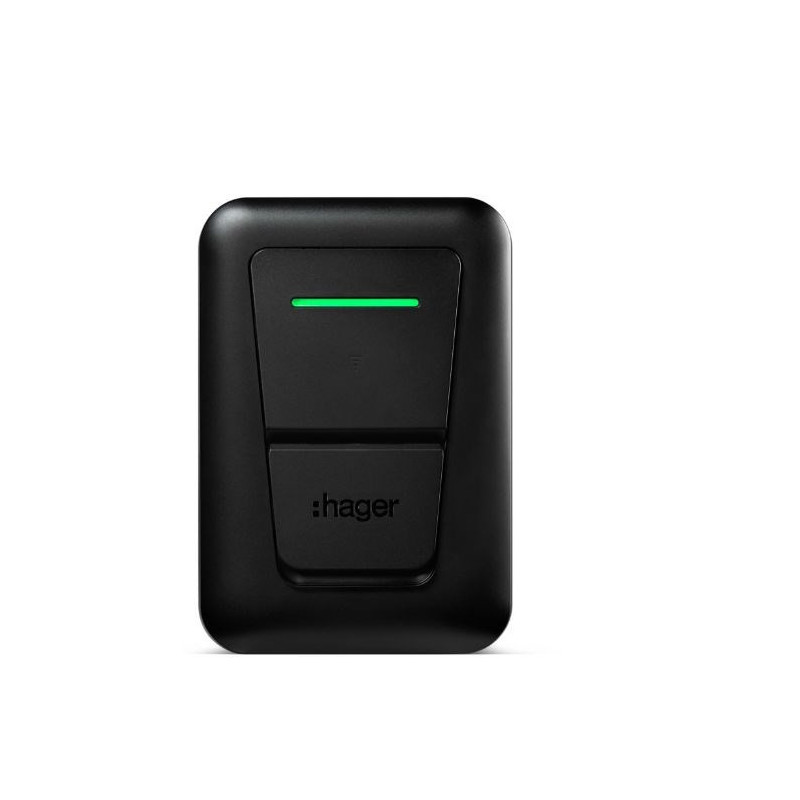

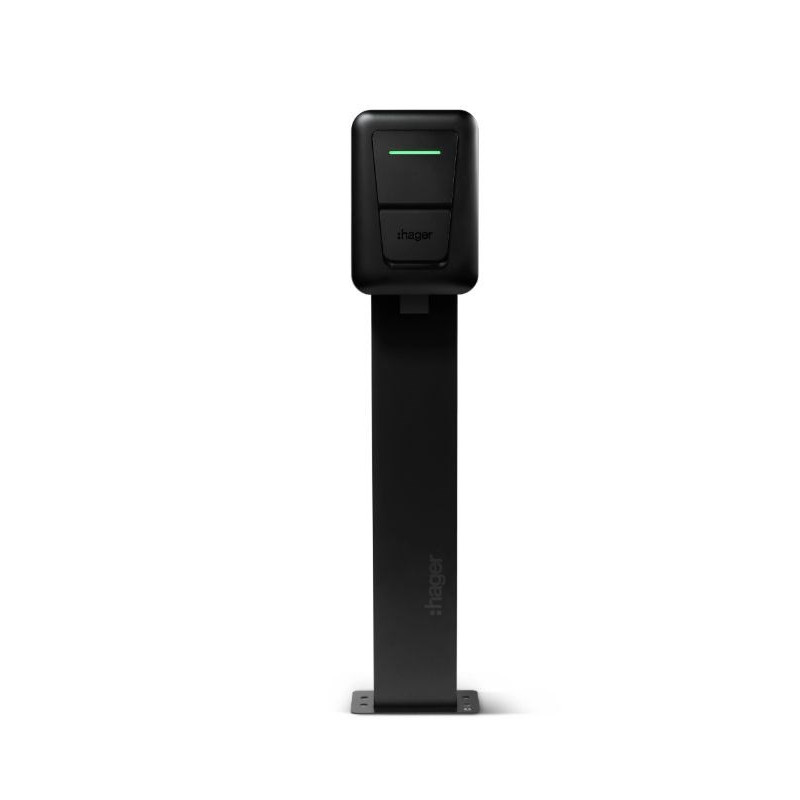

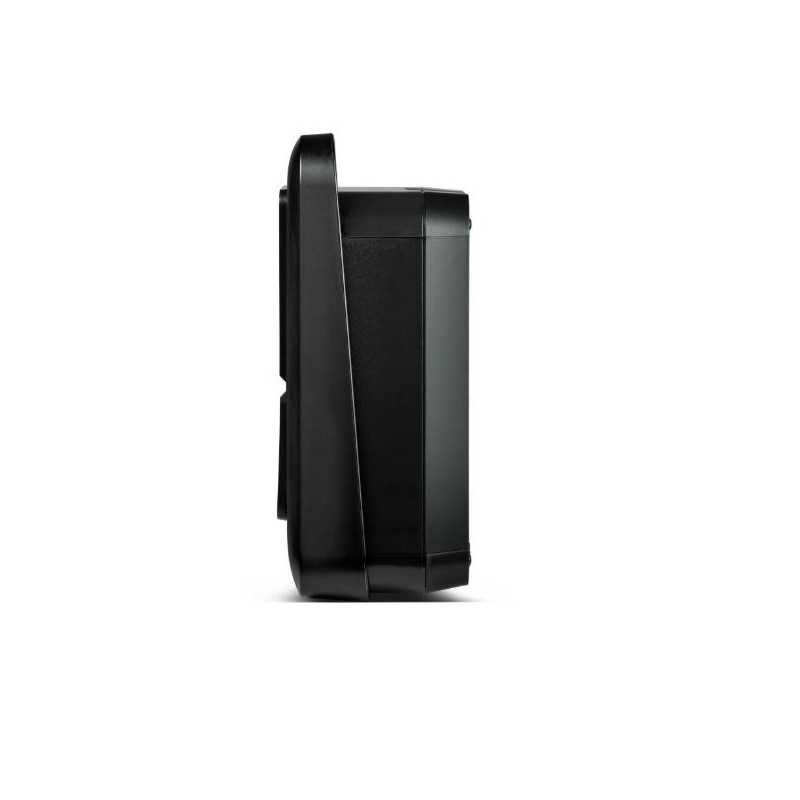

EVCS Hager witty one 11kW 3f RFID Bluetooth charging station with T2 socket
Product reference:
6-XVR111S
EVCS Hager witty one 11kW 3f RFID Bluetooth charging station with T2 socket
EVCS Hager witty one 11kW 3f RFID Bluetooth charging station with T2 socket
Product reference:
6-XVR111S
EVCS Hager witty one 11kW 3f RFID Bluetooth charging station with T2 socket
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
6 - 11
business days
| Easy assembly | Yes |
| Vehicle connection | Type 2 |
| Housing colour | Black |
| Cable colour | Black |
| Housing material | Plastic |
| Mounting style | Wall mount |
| Cable length | 4.5 m |
| Charging power | 11 Kw |
| Rated current | 16 A |
| Nominal frequency | 50 - 60 Hz |
| Connector type | Typ 2S. |
| Connected load (max) | 0,1 - 11 kW |
| Maximum operating temperature range (T-T) | -25 +50°C |
| Number of phases | 3 |
| Rated voltage | 400 V |
| RoHS compliance | Y |
| Degree of protection IK | IK10 |
| International Protection (IP) code | IP55 |

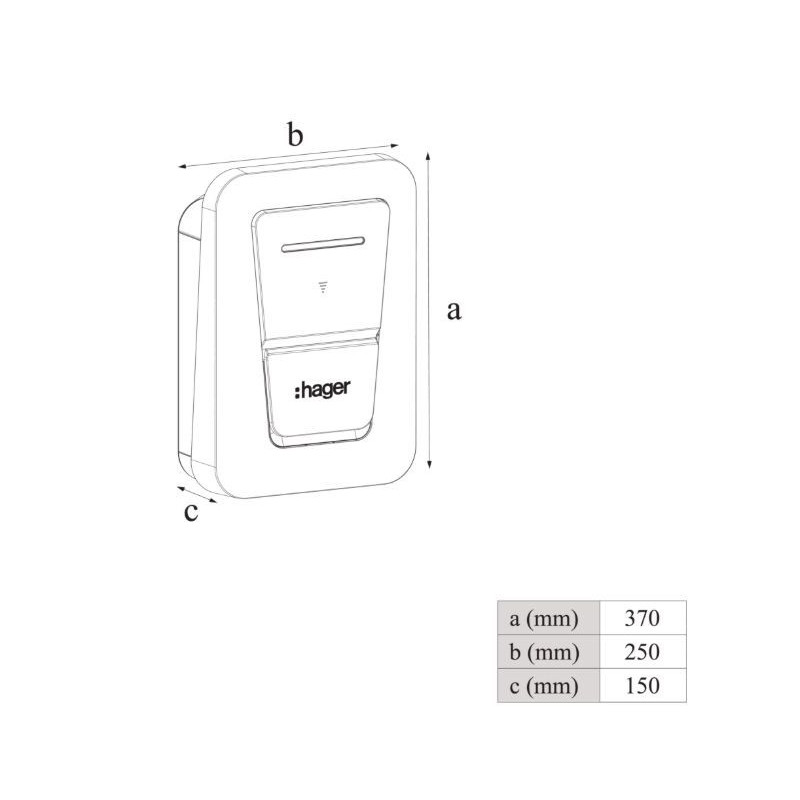

| Width | 250 mm |
| Depth | 150 mm |
| Height | 370 mm |
| Weight | 6.11 kg |
| Warnings | Disconnect the unit from the power supply during maintenance or servicing., Before use, make sure the device is correctly installed by a qualified electrician., Do not use the unit in a damp or wet environment to avoid the risk of electric shock. |
| Hazard pictogram(s) | Substances under pressure, Corrosion |
