Electric Vehicle Charging Station - Green Cell Evgc021a2275 Gray Aluminum with 3-in-1 LED Display
Product reference:
14-5904326374669
The Green Cell EVGC021A2275 electric vehicle charging station with 22,000 W power and 3-phase output ensures fast and reliable charging, while IP54 protection and Wi-Fi function provide additional convenience.
Electric Vehicle Charging Station - Green Cell Evgc021a2275 Gray Aluminum with 3-in-1 LED Display
Product reference:
14-5904326374669
The Green Cell EVGC021A2275 electric vehicle charging station with 22,000 W power and 3-phase output ensures fast and reliable charging, while IP54 protection and Wi-Fi function provide additional convenience.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Green Cell EVGC021A2 3-in-1 LED Display Charger

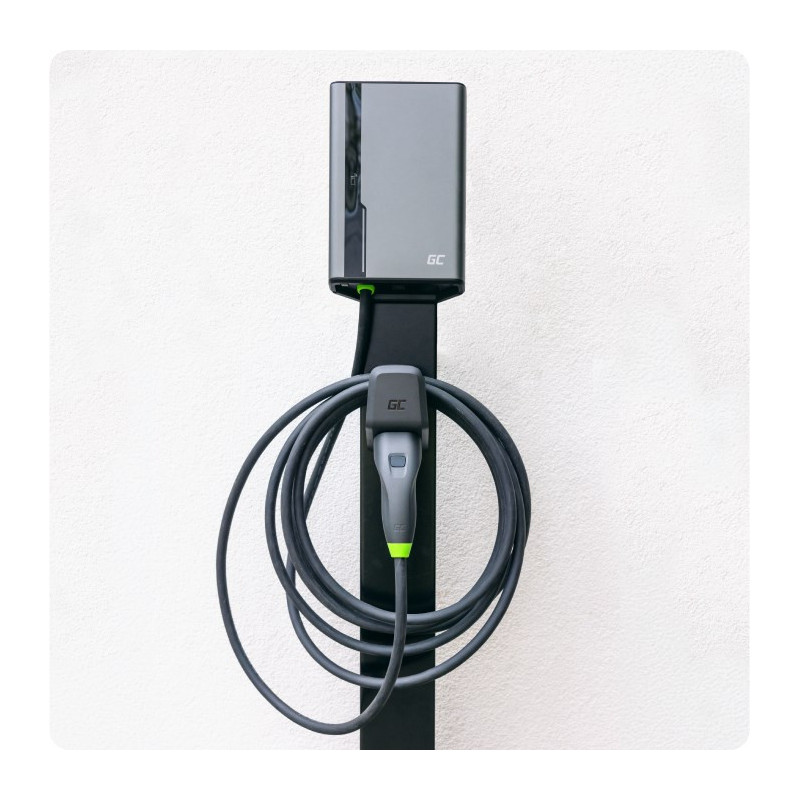

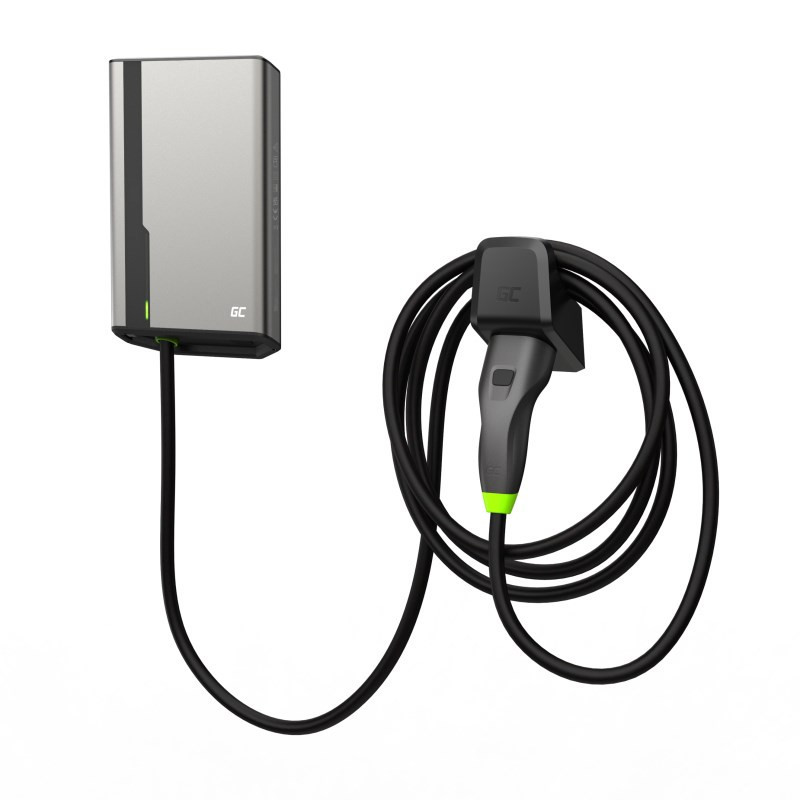

The Green Cell EVGC021A2275 electric vehicle charging station is a high-quality wall-mounted charging station designed for safe and efficient charging of electric vehicles.
Technical data | |
|---|---|
| Warranty period | 2 years |
Features | |
| Vehicle charging standard | Mode 3 |
| Direct current fault monitoring | Yes |
| Vehicle connector plug | Type 2 |
| Mechanical impact protection code | IK10 |
| Power supply type | AC |
| International Protection (IP) Code | IP54 |
| Wi-Fi | Yes |
| Overcurrent protection | Yes |
| Software update | Yes |
Design | |
| Integrated energy meter | Yes |
| Integrated charging cable | Yes |
| Housing material | Aluminum |
| Built-in screen | Yes |
| Body color | Gray |
| LED indicators | Activity, Error, Failure, Power, Charging |
| Wire color | Black |
| Mounting type | Wall-mounted |
| Display technology | LED |
Power | |
| Maximum charging power | 22 kW |
| Minimum operating power (single phase) | 1.4 kW |
| Three-phase output voltage | 400V |
| Maximum operating current (three-phase) | 32 A |
| Single-phase output voltage | 230V |
| Phase number | 3 |
| Maximum operating current per phase | 32 A |
Weight and dimensions | |
| Charging cable length | 7.5 meters |
| Height | 338 mm |
| Weight | 6.72 kg |
| Width | 211 mm |
| Depth | 73 mm |
