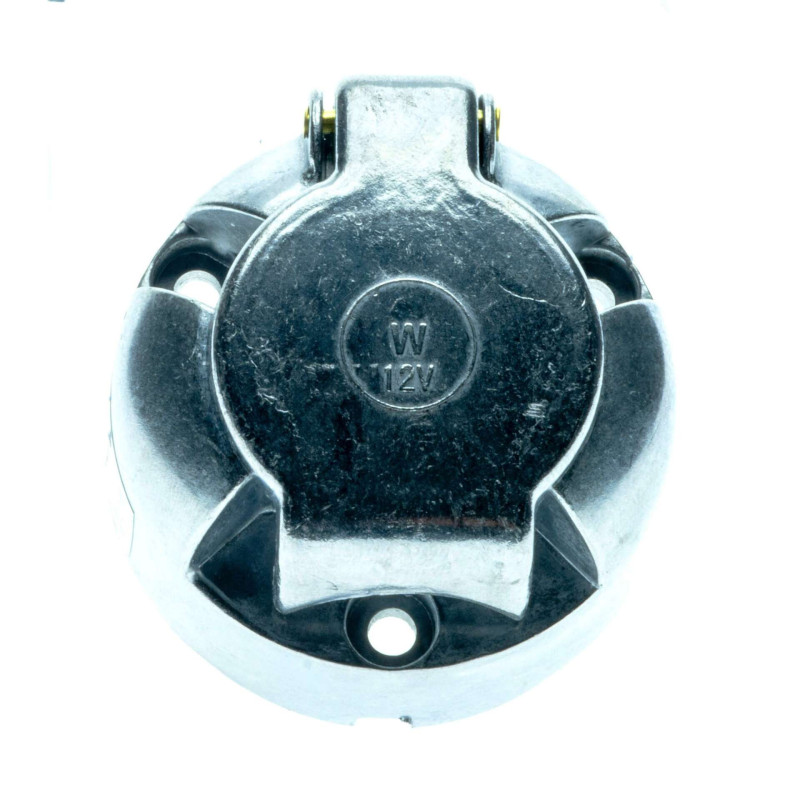

7-pin 12V Trailer Socket - Aluminum

EPTA02 7-Pin Trailer Socket (Aluminum) A durable electrical socket designed to connect a vehicle's electrical system to a trailer, flatbed truck, or caravan. The aluminum version provides increased resistance to weather conditions and mechanical damage. The 7-pin harness is primarily intended for lightweight trailers with a GVWR of up to 750 kg. Connector Diagram (ISO 1724 Compliant):

• Pole 1 (L) - Function: left turn signal - Wire: yellow
• Pole 2 (54G) - Function: Fog Lights - Wire: Blue
• Pole 3 (31) - Function: ground - Wire: white
• Pole 4 (R) - Function: Right turn signal - Wire: Green
• Pole 5 (58R) - Function: right side lights - Wire: brown
• Pole 6 (54) - Function: Brake lights - Wire: Red
• Pole 7 (58L) - Function: left side lights - Wire: black

• Type: 7-pin
• Standard: ISO 1724
• Voltage: 12V
• Maximum load: 16A
• Material: Aluminum

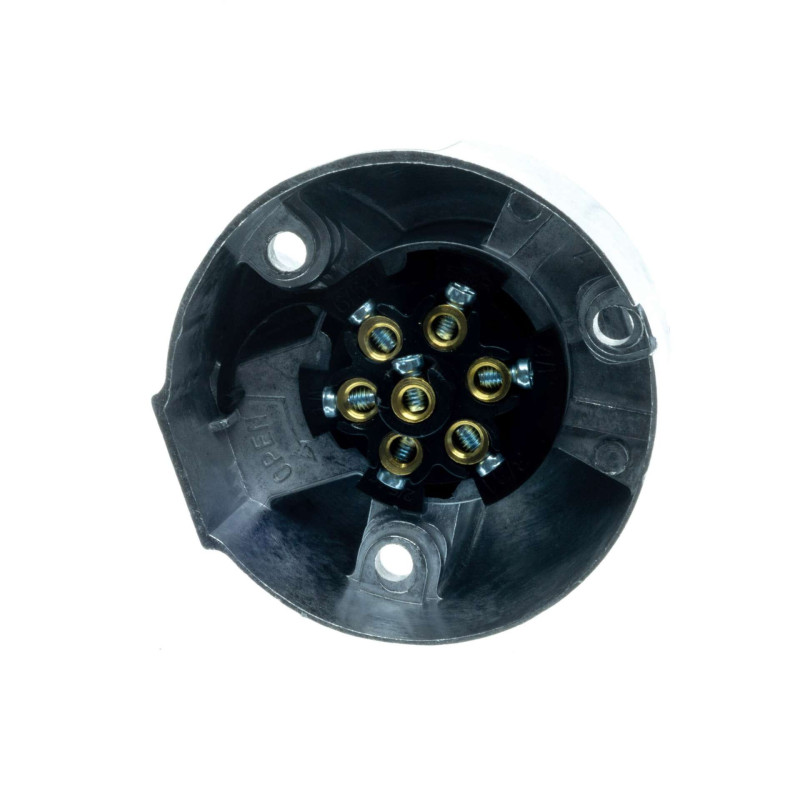

• Connectors: 4 round plugs (female) Ø5.5 mm, 3 round plugs (male) Ø5.5 mm
• Mounting: 3 mounting holes
• Housing: Tight, closed with a spring-loaded flap
• Application: Transport trailers, trailers, caravans, agricultural machinery
