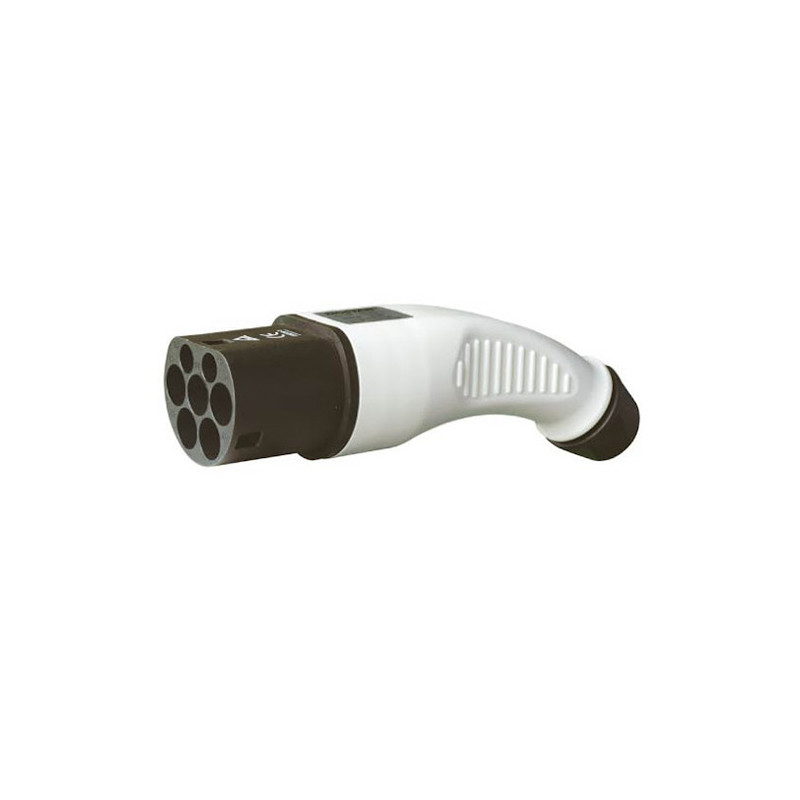

Electric vehicle charging station plug Duosida Type 2 (Male), 32A, 3-phase

Electric vehicle charging station plug Duosida Type 2 (Male), 32A, 3-phase

Plug for electric vehicles Type 2 (Male) (to the station), 32A, 3-phase, without cable. The plug is designed to create your own charger by choosing the desired cable length and connectors.Technical data:

• EV connector type: IEC 62196, Type 2 (European), Mennekes, 7 pins.


• Rated current: 32A.


• Operating voltage: 415V AC.


• Maximum charging power: 22kW (3-phase).


• Material: thermoplastic, fire resistance UL94 V-0.


• Cable contacts: copper alloy, silver plating.


• Adaptable cable dimensions: 5x6mm²+ 1x0.75mm² (3-phase).


• Number of contacts 7.


• Safety class: IP44.


• Operating temperature: -30°C~+50°C.


• Certificates: CE, TUV.


• Color: black / white.
