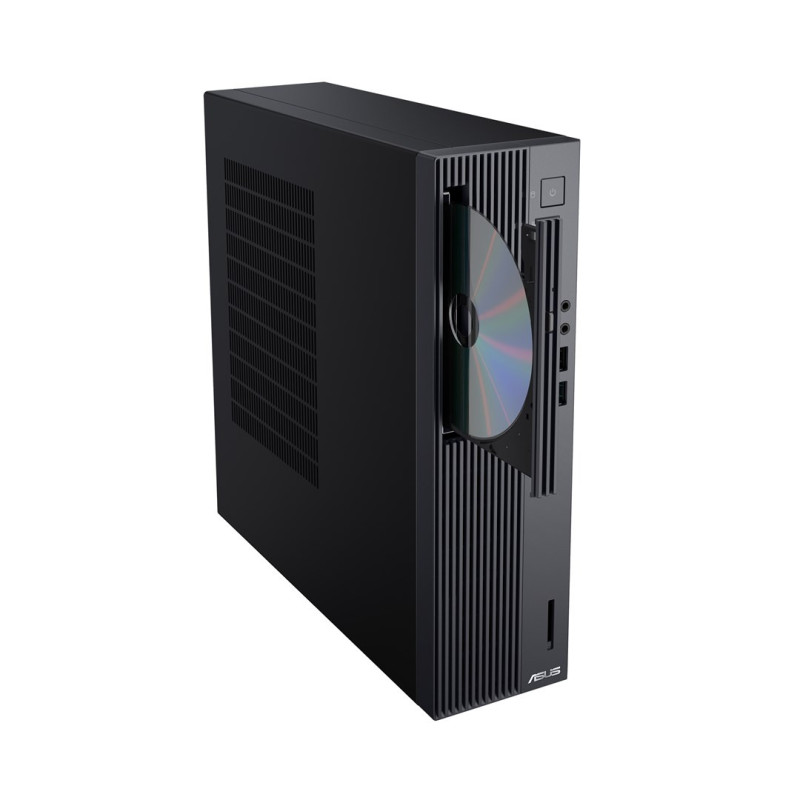

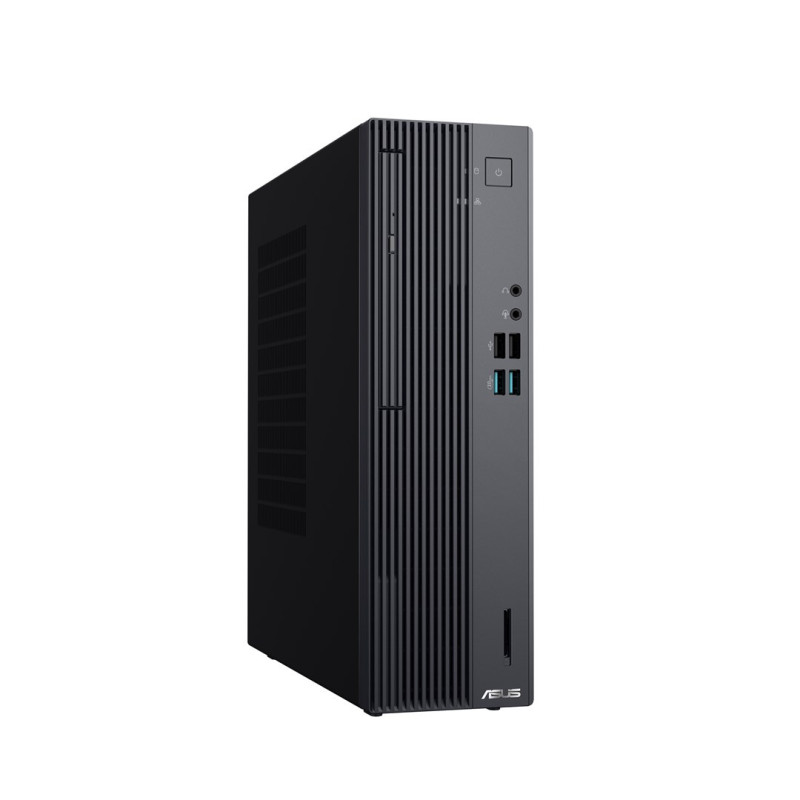

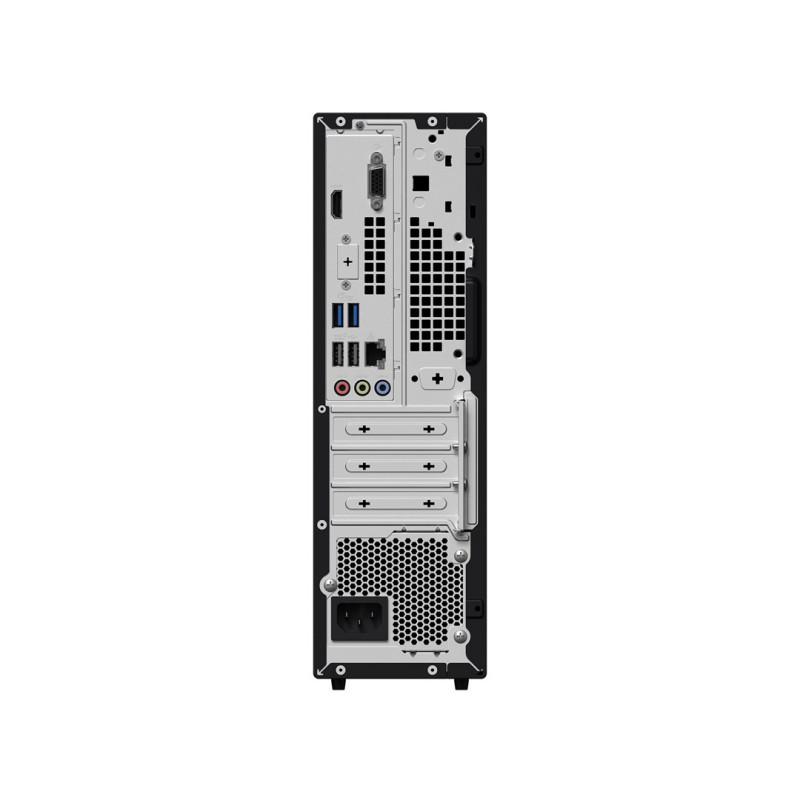

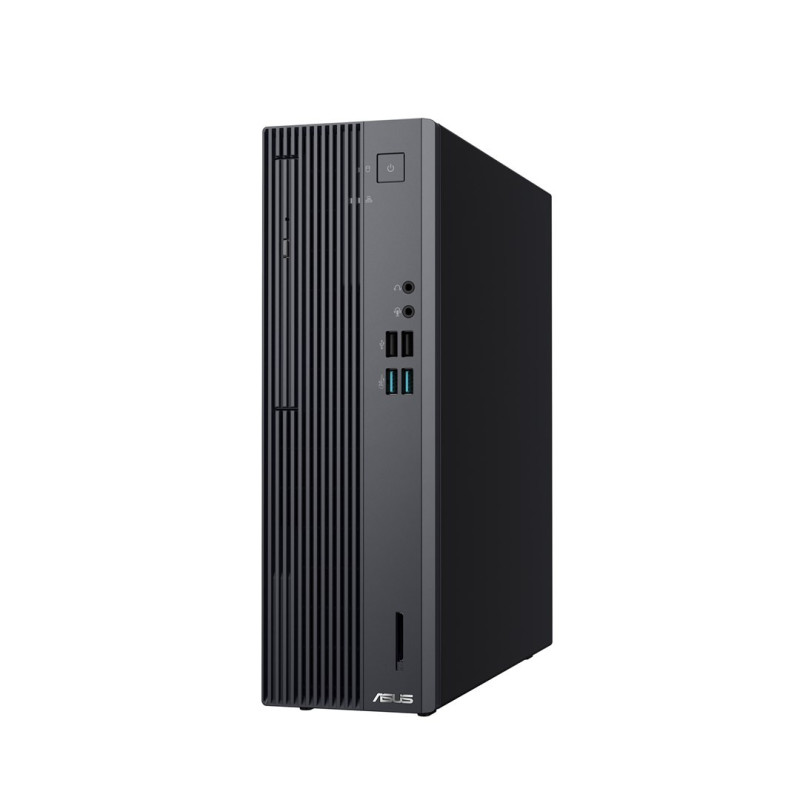

ASUS ExpertCenter D501SER-514500261X SFF i5-14500 16GB DDR5 SSD512 UHD Graphics 770 W11Pro 3Y OnSite
Product reference:
6-D501SER-514500261X
ASUS ExpertCenter D501SER-514500261X SFF i5-14500 16GB DDR5 SSD512 UHD Graphics 770 W11Pro 3Y OnSite
ASUS ExpertCenter D501SER-514500261X SFF i5-14500 16GB DDR5 SSD512 UHD Graphics 770 W11Pro 3Y OnSite
Product reference:
6-D501SER-514500261X
ASUS ExpertCenter D501SER-514500261X SFF i5-14500 16GB DDR5 SSD512 UHD Graphics 770 W11Pro 3Y OnSite
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Processor boost frequency | 5 GHz |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor model | i5-14500 |
| Processor cores | 14 |
| Processor threads | 20 |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Performance cores | 6 |
| Efficient cores | 8 |
| Processor generation | Intel® Core™ i5 (14th gen) |
| Processor base power | 65 W |
| Efficient-core base frequency | 1.9 GHz |
| Performance-core base frequency | 2.6 GHz |
| Maximum turbo power | 154 W |
| Performance-core Max Turbo Frequency | 5 GHz |
| Efficient-core Max Turbo Frequency | 3.7 GHz |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card | Yes |
| On-board graphics card model | Intel UHD Graphics 770 |
| On-board GPU manufacturer | Intel |
| Internal memory | 16 GB |
| Internal memory type | DDR5-SDRAM |
| Maximum internal memory | 64 GB |
| Memory slots | 2x DIMM |
| Product colour | Black |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| 80 PLUS certification | 80 PLUS Bronze |
| Power supply | 180 W |
| Width | 93 mm |
| Depth | 296 mm |
| Height | 309 mm |
| Weight | 5 kg |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Ethernet LAN data rates | 10, 1000 Mbit/s, 100 |
| Ethernet LAN | Yes |
| Antenna type | 2 x 2 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Cabling technology | 10/100/1000Base-T(X) |
| Bluetooth version | 5.4 |
| Market positioning | Business |
| Trusted Platform Module (TPM) | Yes |
| Product type | PC |
| Audio output channels | 7.1 channels |
| Audio system | High Definition Audio |
| Motherboard chipset | Intel B760 |
| Trusted Platform Module (TPM) version | 2.0 |
| Mouse included | Yes |
| Keyboard included | Yes |
| Mouse connectivity | Wired |
| Keyboard connectivity | Wired |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Operating system installed | Windows 11 Pro |
| Compliance certificates | REACH, RoHS |
| Optical drive type | Y |
| Storage media | SSD |
| Total storage capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Number of storage drives installed | 1 |
| NVMe | Yes |
| Total SSDs capacity | 512 GB |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI version | 1.4 |
| Combo headphone/mic port | Yes |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
