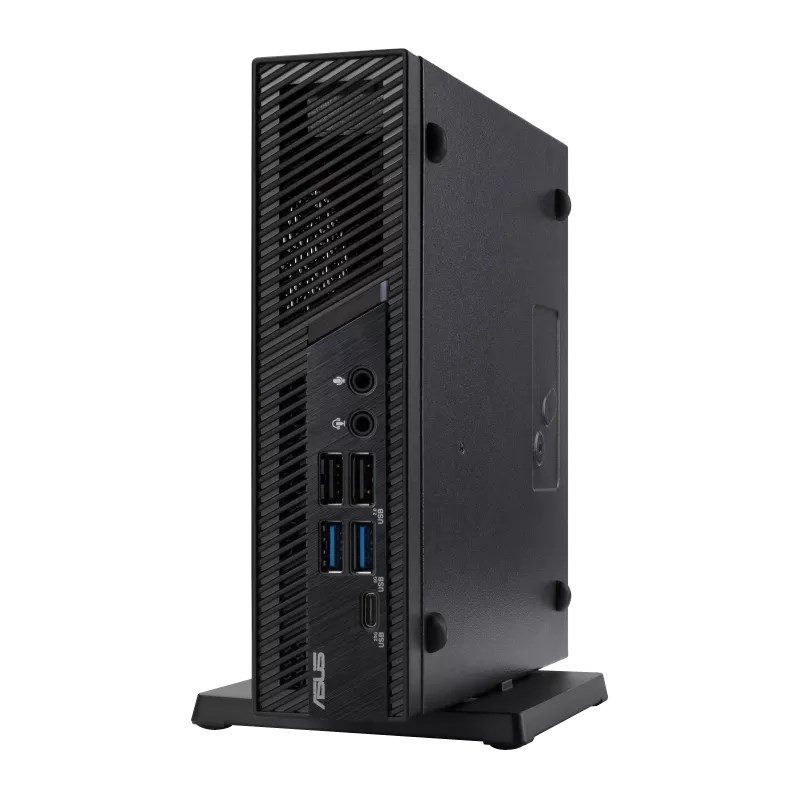

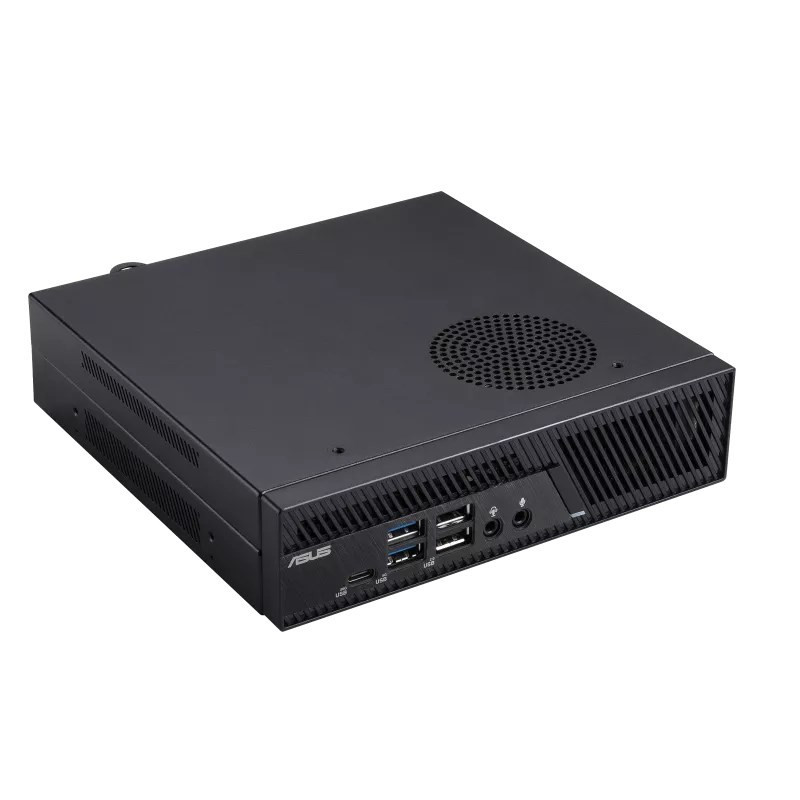

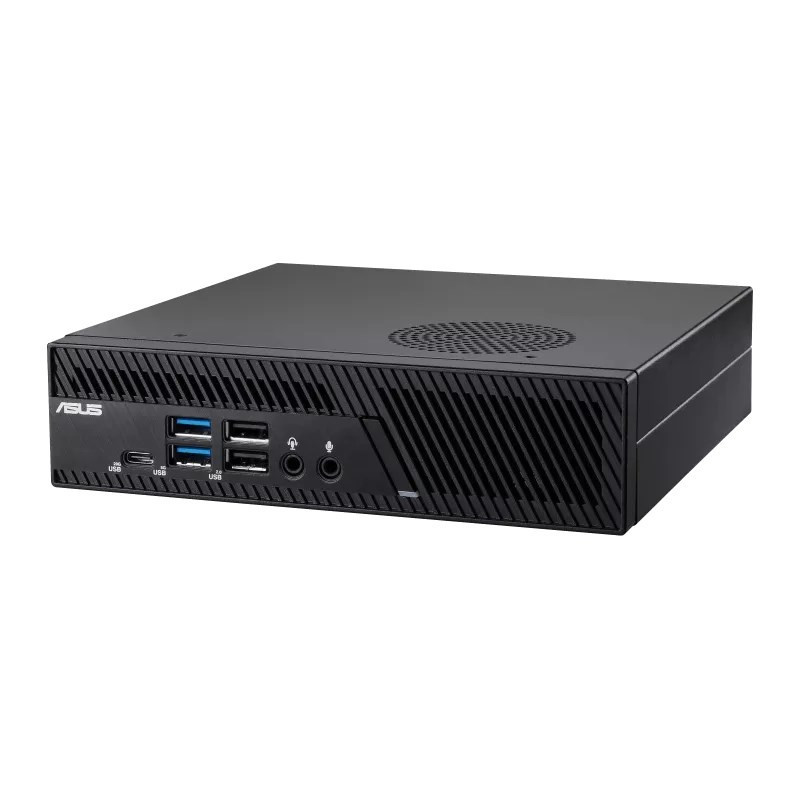

ASUS PB63-B5046AH Intel® Core™ i5 i5-13400 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black
Product reference:
6-90MS02R1-M001E0
ASUS PB63-B5046AH Intel® Core™ i5 i5-13400 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black
ASUS PB63-B5046AH Intel® Core™ i5 i5-13400 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black
Product reference:
6-90MS02R1-M001E0
ASUS PB63-B5046AH Intel® Core™ i5 i5-13400 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
6 - 11
business days
| Performance-core Max Turbo Frequency | 4.6 GHz |
| Maximum turbo power | 154 W |
| Efficient cores | 4 |
| Processor base power | 65 W |
| Processor generation | 13th gen Intel® Core™ i5 |
| Efficient-core base frequency | 1.8 GHz |
| Performance cores | 6 |
| Performance-core base frequency | 2.5 GHz |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Processor boost frequency | 4.6 GHz |
| Processor cores | 10 |
| Processor model | i5-13400 |
| Processor threads | 16 |
| Processor family | Intel® Core™ i5 |
| Processor manufacturer | Intel |
| Processor cache | 20 MB |
| Processor cache type | Smart Cache |
| On-board GPU manufacturer | Intel |
| On-board graphics card model | Intel UHD Graphics 730 |
| Discrete graphics card model | Not available |
| Discrete graphics card | No |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card | Yes |
| Internal memory | 16 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 2x SO-DIMM |
| Colour name | Black |
| Product colour | Black |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| VESA mounting | Yes |
| Chassis type | Mini PC |
| Placement supported | Horizontal/Vertical |
| Package weight | 2.61 kg |
| Weight | 1.18 kg |
| Package width | 360 mm |
| Package height | 68 mm |
| Height | 44.2 mm |
| Depth | 175 mm |
| Package depth | 240 mm |
| Width | 175 mm |
| Ethernet LAN data rates | 1000 Mbit/s, 10, 100 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Bluetooth version | 5.2 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Cabling technology | 10/100/1000Base-T(X) |
| Product type | Mini PC |
| Market positioning | Business |
| Display included | No |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Optical drive type | No |
| SSD capacity | 512 GB |
| NVMe | Yes |
| Total storage capacity | 512 GB |
| SSD form factor | M.2 |
| Storage media | SSD |
| Number of SSDs installed | 1 |
| SSD interface | PCI Express 4.0 |
| Total SSDs capacity | 512 GB |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| DisplayPorts quantity | 2 |
| DC-in jack | Yes |
| Headphone outputs | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Microphone in | Yes |
| Warnings | Avoid exposure to extreme temperatures and humidity., Do not open the enclosure to avoid risk of electric shock., Do not dispose of with the normal household waste; special disposal required. |
