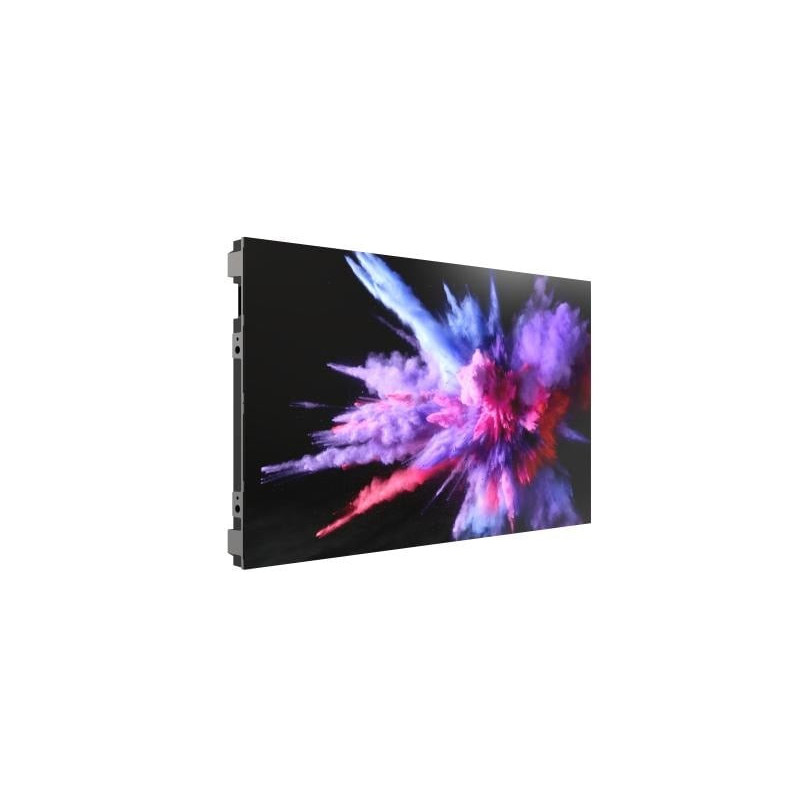

LED module Hikvision DS-D4012BW-2FC
Product reference: 26-6942160460444
  • Type: LED module
  • Model: DS-D4012BW-2FC
  • Brand: Hikvision
  • Usage: Indoor
  • Resolution: 480 × 270
  • Dimensions: 600 mm × 337.5 mm × 29.3 mm
  • Protection class: IP60
LED module Hikvision DS-D4012BW-2FC

LED module Hikvision DS-D4012BW-2FC

Product reference: 26-6942160460444
  • Type: LED module
  • Model: DS-D4012BW-2FC
  • Brand: Hikvision
  • Usage: Indoor
  • Resolution: 480 × 270
  • Dimensions: 600 mm × 337.5 mm × 29.3 mm
  • Protection class: IP60
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
85148 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • Product model
  • Product model DS-D4012BW-2FC
  • Product type
  • Product type Fine Pixel Pitch Indoor Full-color LED Display
  • Cabinet
  • Pixel Configuration Flip-chip COB
  • Point step 1.25mm (0.049")
  • Pixel Pitch Category P1.2
  • Pixel Density 640000 dots/㎡
  • Modules Component 2 × 2
  • Size 600 mm × 337.5 mm × 29.3 mm (23.622" × 13.287" × 1.154")
  • Resolution 480 × 270
  • Area 0.2025㎡
  • Weight 3.4 kg
  • Cabinet Material Aluminum die casting
  • Maintenance Method Front maintenance for all components
  • Module
  • Size 300 × 168.75 mm
  • Module Resolution 240 × 135
  • Screen
  • White Balance Brightness 600 cd/㎡
  • Color Temperature 3000-10000 K adjustable
  • Viewing angle 160°(H)/160°(V)
  • Contrast ratio 15000:1
  • Color Uniformity ≤ ± 0.003Cx, Cy
  • Brightness Uniformity ≥ 97％
  • Processing performance
  • Driving Method Constant current driving
  • Scanning Amount 60
  • Frame rate 60Hz
  • Update frequency 3840Hz
  • Grayscale 16 bits
  • System parameters
  • Maximum energy consumption ≤ 300W/㎡（600nits）
  • Average costs ≤ 100W/㎡
  • Input voltage 100~240VAC ±10％
  • Work environment
  • Operating temperature -10 to 40 (14 to 104)
  • Moisture resistance 10% to 90% RH (without condensation)
  • Storage conditions temperature -20 to 60 (-4 to 140)
  • Storage conditions humidity 10% to 90% RH (without condensation)
  • Home
  • Packaging Dimensions (W × H × D) 722 (W) mm × 438 (H) mm × 193 (D) mm (28.425'' × 17.244'' × 7.598'')
  • In the package

    Regulatory Compliance and Safety Information × 1

    Several connecting screws, light beads, driver IC, iron sheets
  • GW 4.56 kg（1 package in 1 box）
  • Weight without packaging 3.4 kg
  • Holder
  • Modular Bracket DS-DL116033W 1*1;DS-DL126033W 1*2;DS-DL226033W 2*2

Weight3.4 kg
