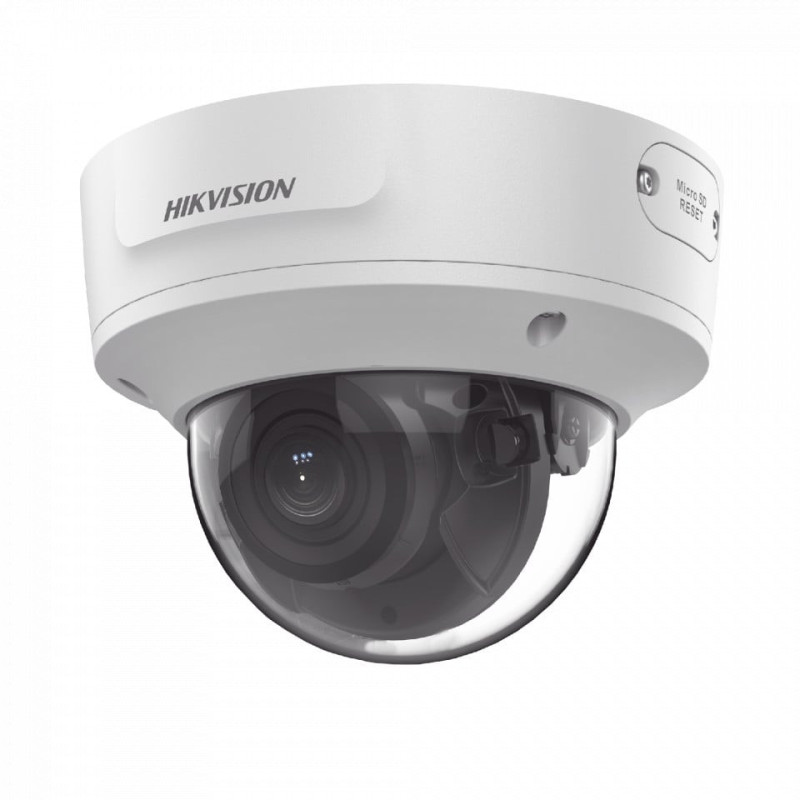

Hikvision dome DS-2CD2743G2-IZS (white, 4 MP, 40 m. AND 30 m. LED, AcuSense)
Product reference: 26-6941264070573
  • MP (MegaPixel): 4 MP
  • Lens: 2.8 mm, horizontal FOV: 95°
  • Technology: AcuSense
  • Built-in microphone: Yes
  • Night illumination: 40 m. IR; 30 m. LED
  • microSD slot: Yes, 512GB
  • Operating conditions: -30 °C to 60 °C
  • Safety level: IP67
  • Video compression: H.265+
  • WiFi: No
  • Bracket/base (optional): DS-1280ZJ-DM55
  • Outdoor/Indoor: Outdoor
Hikvision dome DS-2CD2743G2-IZS (white, 4 MP, 40 m. AND 30 m. LED, AcuSense)

Hikvision dome DS-2CD2743G2-IZS (white, 4 MP, 40 m. AND 30 m. LED, AcuSense)

Product reference: 26-6941264070573
  • MP (MegaPixel): 4 MP
  • Lens: 2.8 mm, horizontal FOV: 95°
  • Technology: AcuSense
  • Built-in microphone: Yes
  • Night illumination: 40 m. IR; 30 m. LED
  • microSD slot: Yes, 512GB
  • Operating conditions: -30 °C to 60 °C
  • Safety level: IP67
  • Video compression: H.265+
  • WiFi: No
  • Bracket/base (optional): DS-1280ZJ-DM55
  • Outdoor/Indoor: Outdoor
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
24149 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
Camera
Image sensor:1/3" Progressive Scan CMOS
Min. Lighting:Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
Closing speed:1/3 s to 1/100,000 s
Slow closing:Yes
P/N:P/N
Wide dynamic range:120 dB
Day Night:ICR cut
Angle settings:Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lentils
Lens Types FOV:2.8 to 12 mm, horizontal FOV 95.8° to 29.2°, vertical FOV 50.6° to 16.4°, diagonal FOV 114.6° to 33.4°
Aperture:F1.6
Lens installation:φ14
DOROUS
DORI:2.8 to 12 mm: D: 64 m to 200 m, O: 25.4 m to 79.4 m, R: 12.8 m to 40 m, I: 6.4 m to 20 m
Lighting
IR Lighting:Up to 40m
Wavelength:850nm
Max resolution:2688 × 1520
Main Stream:50Hz: 25fps (2688×1520, 1920×1080, 1280×720) 60Hz: 30fps (2688×1520, 1920×1080, 1280×720)
Auxiliary Flow:50Hz: 25fps (640×480, 640×360) 60Hz: 30fps (640×480, 640×360)
Tertiary Stream:50Hz: 25fps (1280×720, 640×480, 640×360) 60Hz: 30fps (1280×720, 640×480, 640×360)
Image compression:Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Video bit rate:32 Kbps to 8 Mbps
H.264 type:Baseline Profile/Main Profile/High Profile
H.265 type:Main Profile
H.264+:Main stream supports
H.265+:Main stream supports
SVC:Yes
ROI:1 fixed region for main stream and sub-stream
Sound
Ambient noise filtering:Yes
Audio sample frequency:8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio compression:G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio bit rate:64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC) /32-192Kbps(MP2L2)/8-320Kbps(MP3)
Network
Live video monitoring:Up to 6 channels
APIs:Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
Protocols:TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE
User/Broadcaster:Up to 32 users. 3 user levels: administrator, operator and user
Security:Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network storage:MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto network replenishment (ANR)
Customer:iVMS-4200, Hik-Connect, Hik-Central
Internet browsers:Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
Day/Night switch:Day, Night, Auto, Schedule
Line crossing detection:BLC, HLC, 3D DNA
Changing image settings:Yes
Image settings:Rotate, mirror, privacy masks, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Interface
Sound:-S: 1 input (line in), max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm:-S: 1 input, 1 output (max. 12 VDC, 30 mA)
Container:Built-in micro SD, up to 256 GB
Hardware recovery:Yes
Communication Interface:1 RJ45 10M/100M self-adaptive Ethernet port
Smart features
Simple functions:Motion detection (human and vehicle), video tampering alarm, exception
Smart features:Line crossing detection, intrusion detection
Facial recognition:Yes
Home
Connection methods:Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Email
Menu languages:33 languages ​​English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Main functions:Anti-flicker, heartbeat, password reset via e-mail, pixel counter
Storage conditions:-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Start-up and operating conditions:-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Energy source:12 VDC ± 25%, reverse polarity protection PoE: 802.3af, Class 3
Energy consumption and power:12 VDC, 0.88 A, max. 10.5 W PoE: (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5 W
Power switch:Ø5.5 mm coaxial power plug
Material:Upper cover and base: metal Bubble: plastic
Camera dimensions:Ø153.3 × 111.6 mm (Ø6.1″ × 4.4″)
Package dimensions:244 × 174 × 173 mm (9.7" × 6.9" × 6.9")
Camera weight:Approx. 880 g (1.9 lb.)
Weight with packaging:Approx. 1419 g (3.1 lb.)
Approvals
EMC:FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Security:UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environmental protection:CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Water and dust resistance:IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)

Weight1.047 kg
