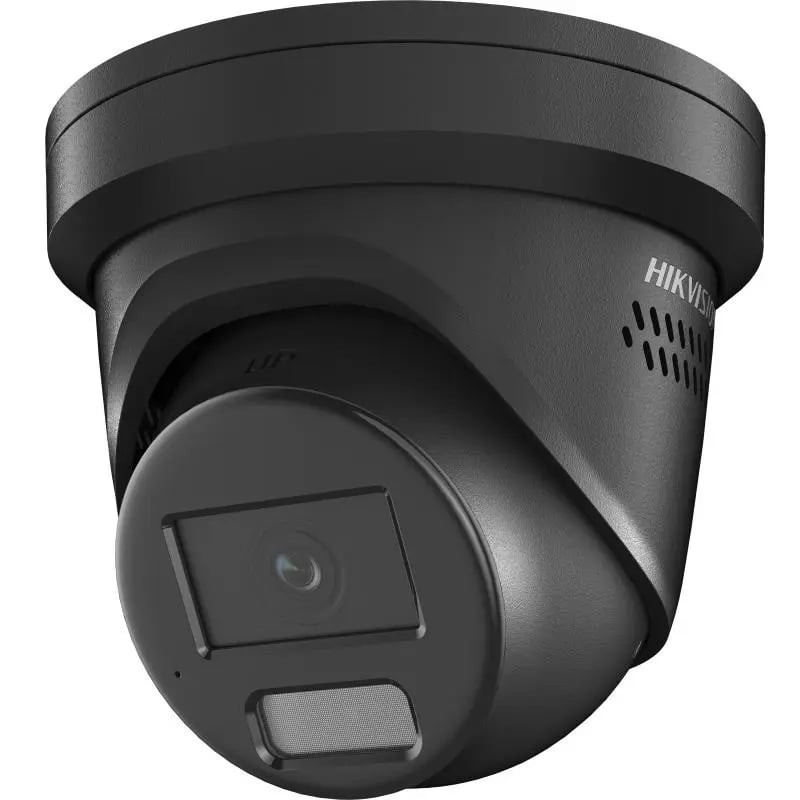

Hikvision dome DS-2CD2347G2H-LIU F2.8 (black, 4 MP, 30 m IR 30 m LED, Hybrid Light)

Product reference: 26-6942160436500

Hikvision dome DS-2CD2347G2H-LIU F2.8 (black, 4 MP, 30 m IR 30 m LED, Hybrid Light)

Product reference: 26-6942160436500

You have 3 products in compare list, please remove someone and try again

Add to compare

16554 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Approvals
EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
Environmental protection CE-RoHS: 2011/65/EU
Protection IP67: IEC 60529-2013
Security UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

Sound
Audio bit rate -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
Audio Compression -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio sampling frequency -U: 8kHz/16kHz/32kHz/44.1kHz/48kHz
Removing extraneous sounds -U: Yes

DOROUS
DOROUS 2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m

Smart features
Facial recognition Yes
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

Features
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Interface Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email
Smart features Scene change detection

General data
Measurements Ø138.3mm × 115.4mm (Ø5.4" × 4.5")
Main functions Heartbeat, mirror, password reset via email, pixel counter, anti-banding
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Material Cover: Metal, main body: Metal
Package size 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
Power supply 12 VDC ± 25%, 0.41 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6 W
Working conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Storage conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Weight Approx. 770 g (1.7 lb.)
Weight with packaging Approx. 1040 g (2.3 lb.)

Day/Night mode Day, Night, Auto, Schedule
Photo beautification BLC,HLC,3D DNA
Photo parameters converter Yes
Photo settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Privacy mask 4 programmable polygon privacy masks
SNR ≥ 52 dB
Wide Dynamic Range (WDR) 130 dB

Interface
Built-in microphone -U: Yes
Web interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Internal memory Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reboot button Yes

Lens
Aperture F1.0
Depth of field 2.8 mm: 2.5 m to ∞4 mm: 3.1 m to ∞
Focal Length FOV 2.8 mm, horizontal FOV 111.1°, vertical FOV 57.6°, diagonal FOV 138.5°4 mm, horizontal FOV 95.2°, vertical FOV 48.3°, diagonal FOV 117.4°
Iris type Fixed
Lens installation M16
Lens type Fixed focal lens, 2.8 and 4 mm optional

Network
API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Customer iVMS-4200, Hik-Connect, Hik-Central
Internal memory NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Live video viewing Up to 6 channels
User/port Up to 32 users3 user levels: administrator, operator, and user
Browser Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Bit rate control CBR,VBR
H.264 type Baseline Profile, Main Profile, High Profile
H.265 type Main Profile
Main stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Scalable Video Coding (SVC) H.264 and H.265 encoding
Secondary flow 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)*The third stream is supported under certain settings.
Video bit rate 32 Kbps to 8 Mbps
Video Compression Main stream: H.265/H.264/H.264+/H.265+,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,*Third stream is supported under certain settings.

Weight

0.82 kg
