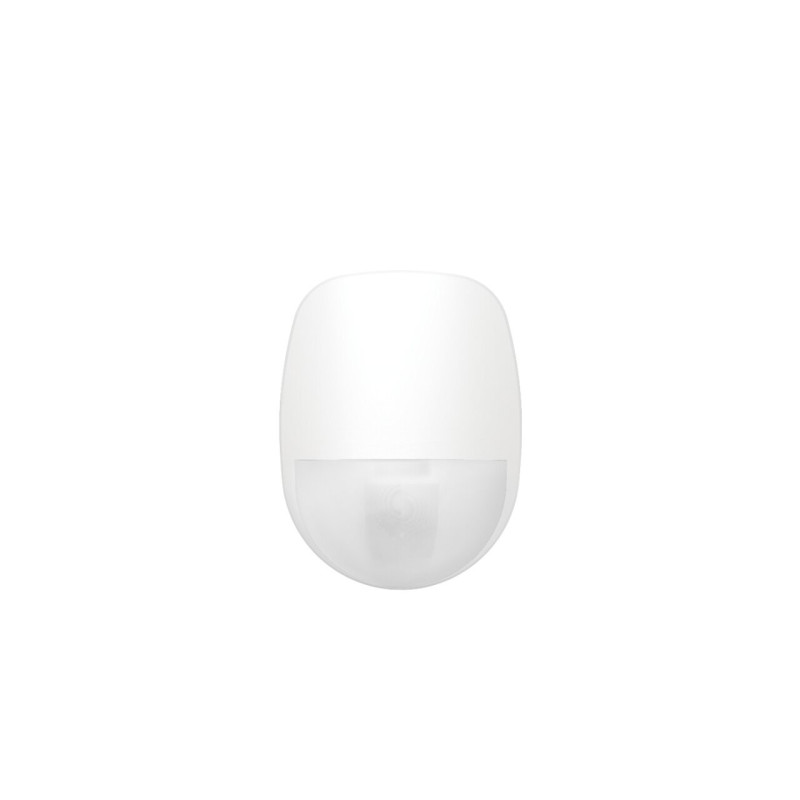

Curtain motion sensor Hik-vision Ellipse ALARM DS-PDC15-EG2
Product reference:
26-6941264064367
- Up to 15 m capture range
- Digital temperature compensation
- Optional EOL resistors for signaling and anti-tamper wiring
- Enclosed optics to protect against insects
- Approvals (EN Grade2/CE/FCC/CB/IC/RCM)
- 9 to 16 V wide voltage range with reverse polarity protection
Curtain motion sensor Hik-vision Ellipse ALARM DS-PDC15-EG2
Product reference:
26-6941264064367
- Up to 15 m capture range
- Digital temperature compensation
- Optional EOL resistors for signaling and anti-tamper wiring
- Enclosed optics to protect against insects
- Approvals (EN Grade2/CE/FCC/CB/IC/RCM)
- 9 to 16 V wide voltage range with reverse polarity protection
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 6
business days
Not available
- Fixing
- Fixing method Passive Infrared
- Capture range 15m
- Locking angle 6.3°
- Capture zones 18
- Capture speed 0.3～2m/s
- White light filter 6500lux
- Digital temperature compensation Support
- Protection against counterfeiting Support
- Functions
- Digital compensation Support
- Closed optics Support
- Protection against counterfeiting Front
- Interface
- Alarm output Normally Closed
- LED indicator Blue(Alarm)
- Transmission
- Transmission method Wired
- Electrical characteristics
- Power source 9 - 16 VDC
- Voltage 12VDC
- Energy consumption 11mA Max
- Home
- Working conditions (temperature) -10 °C to 55 °C (14 °F to 131 °F)
- Storage conditions -20 °C to 60 °C (-4 °F to 140 °F)
- Operating conditions (humidity) 10% to 90%
- Size(WxHxD) 65.4mm x 86.8mm x 45.5mm
- Weight 68 grams
- Installation height 2.4 m to 3.6 m
- Installation method Wall
- Usage Indoor
- Holder Optional wall ceiling accessories
| Weight | 0.071 kg |
