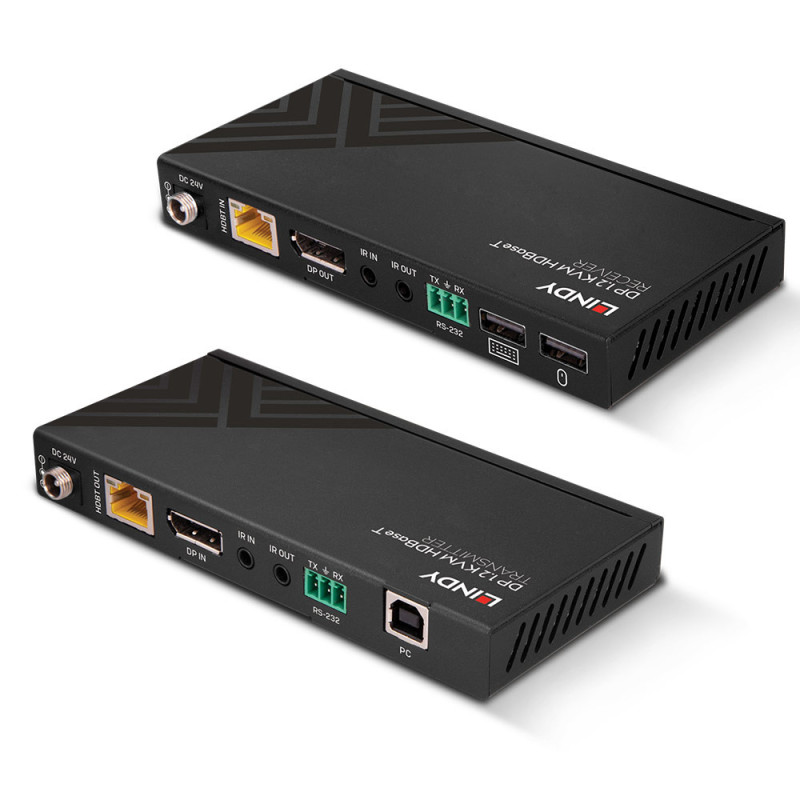

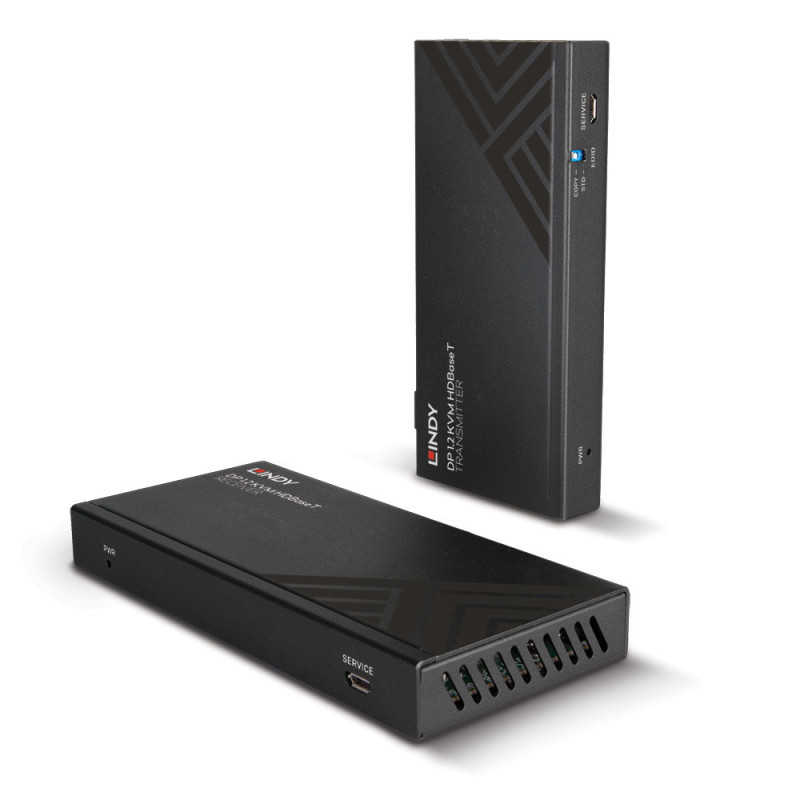

LINDY Cat.6 DisplayPort 1.2, USB, IR RS-232 HDBaseT KVM Extender 150m
Extend DisplayPort 1.2, USB, IR and RS-232 signals up to 150m using Cat.6 cables, with a maximum resolution of 3840x2160@60Hz. It supports bi-directional IR, RS-232 and has a bandwidth of 21.6Gbps.
- Extends DisplayPort, USB, IR, and RS-232 signals up to 150 m (492.12 ft) for versatility.
- Supports high-definition images up to 3840x2160@60Hz with 21.6Gbps bandwidth to ensure stunning visuals.
- There is bidirectional IR and RS-232 control, allowing for seamless integration into existing systems.
- A complete kit with transmitter, receiver, cables and mounting accessories is included for easy setup.
Features | |
|---|---|
| Product type | KVM Extender |
| Model | 150m Cat.6 DisplayPort 1.2, USB, IR RS-232 HDBaseT KVM Extender |
Specifications | |
| AV interface | DisplayPort 1.2 |
| Interface standard | DisplayPort 1.2, USB 1.1 |
| Supported bandwidth | 21.6Gbps |
| Maximum distance | 150m (492.12 feet) |
| Maximum resolution | 3840x2160@60Hz 4:4:4 8bit |
| HDCP support | 2.2 |
| EDID bandwidth | Dip switch with copy function |
| IR support | 20 - 60KHz |
| Serial interface | RS-232 bandwidth |
| Transmission protocol | HDBaseT |
| Transmission medium | Cat.6 |
| Chipset | VS010-A0 |
| Special features | Bidirectional IR, RS-232 and PoC |
Connectors | |
| Transmitter input | DP (Female), USB Type B (Female), 3.5mm IR (Female) |
| Transmitter output | RJ-45 (Female), 3.5mm IR (Female) |
| Receiver input | RJ-45 (Female), 3.5mm IR (Female) |
| Receiver output | DP (Female), 2x USB Type A (Female), 3.5mm IR (Female) |
| Bidirectional connections | RS-232 3-pin terminal block |
| Power supply | 5.5/2.1mm |
Physical properties | |
| Dimensions (approximate) | 140x65x18mm (5.51x2.56x0.71in) per unit |
| Housing material | Metal |
| Net weight | 0.8kg (1.76lb) |
| Working temperature | 0°C - 40°C (32°F - 104°F) |
| Storage temperature | -20°C - 60°C (-4°F - 140°F) |
| Humidity | 20 - 90% RH (non-condensing) |
| Power requirements | 24VDC 1A |
| Color | Black |
Miscellaneous | |
| Packaging type | Cardboard box |
| Package dimensions | 245x75x185mm (9.65x2.95x7.28in) |
| Total weight | 1.02kg (2.25lb) |
| Product compliance | CE, UKCA, FCC, RoHS, REACH California Proposition 65 |
