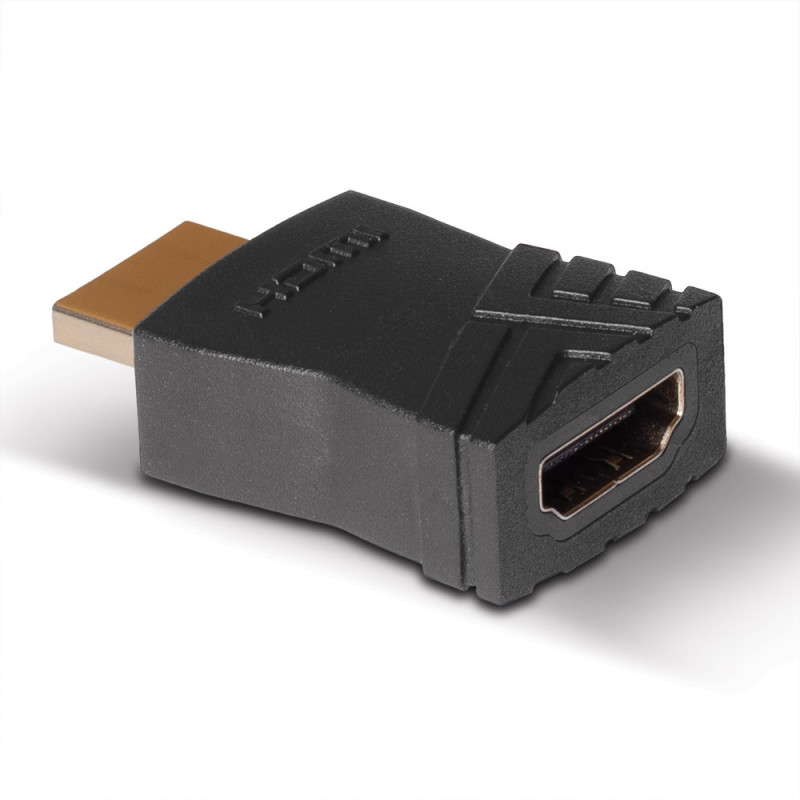

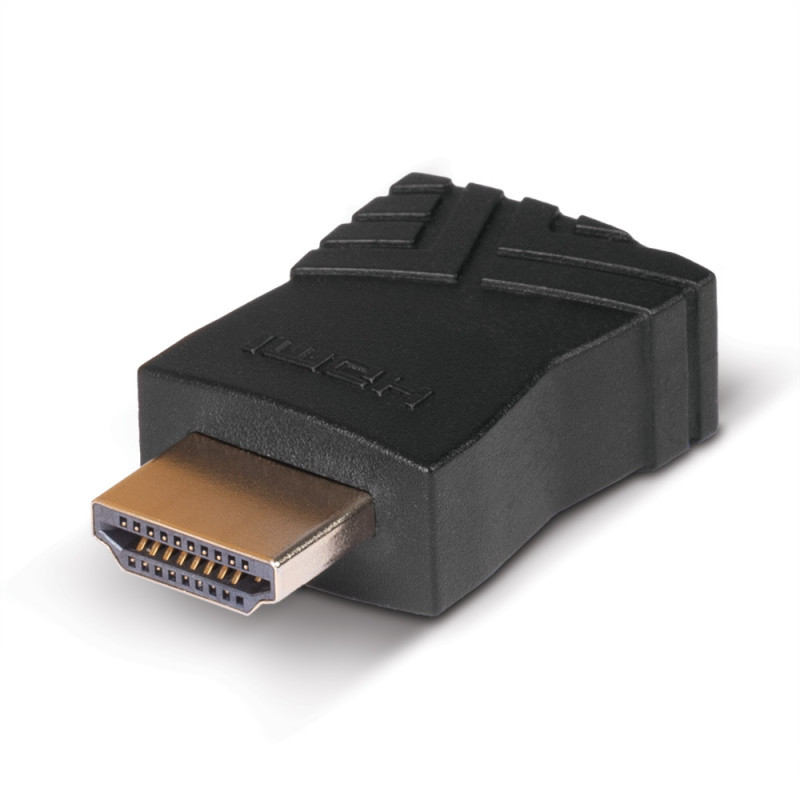

HDMI NON-CEC Adapter Type AM/F supports maximum resolution of 3840x2160@60Hz and 18Gbps bandwidth. It has CEC pin disconnection design, which helps to solve CEC connection problems.
HDMI NON-CEC Adapter Type AM/F supports maximum resolution of 3840x2160@60Hz and 18Gbps bandwidth. It has CEC pin disconnection design, which helps to solve CEC connection problems.
Guarantee
24 month
Delivery from Lithuania in
2 - 3
business days
HDMI NON-CEC Adapter Type AM/F supports maximum resolution of 3840x2160@60Hz and bandwidth of 18Gbps. It features a CEC pin disconnection design to fix CEC connection issues.
Features | |
|---|---|
| Product type | HDMI NON-CEC Adapter Type AM/F |
Specifications | |
| AV interface | HDMI® |
| Interface standard | HDMI® |
| Supported bandwidth | 18Gbps |
| Maximum resolution | 3840x2160@60Hz 4:4:4 8Bit |
| Audio EDID | LPCM 2-channel, 16/20/24 bit depths 32/44/48/88/96/176/192 kHz |
| HDCP support | 2.2 |
| Special features | CEC Pin disconnected |
Connectors | |
| Entrance | HDMI® Type A Female |
| Exit | HDMI® Type A Male |
| Power supply | Via HDMI® source interface |
Physical properties | |
| Dimensions (approximate) | 20 x 40 x 10 mm (0.78 x 1.57 x 0.39 in) |
| Housing | PVC |
| Net weight | 0.008 kg (0.02 lb) |
| Working temperature | 0°C - 60°C (32°F - 140°F) |
| Storage temperature | -10°C - 70°C (14°F - 158°F) |
| Humidity | 0 - 80% RH (non-condensing) |
| Color | Black |
Miscellaneous | |
| Packaging type | Polyethylene bag |
| Package dimensions | 136 x 138 mm (5.35 x 5.43 in) |
| Gross weight | 0.013 kg (0.03 lb) |
| Product compliance | CE, FCC, RoHS REACH, UKCA |
Safety warning | |
| Use the product for its intended purpose to avoid potential hazards. | |
