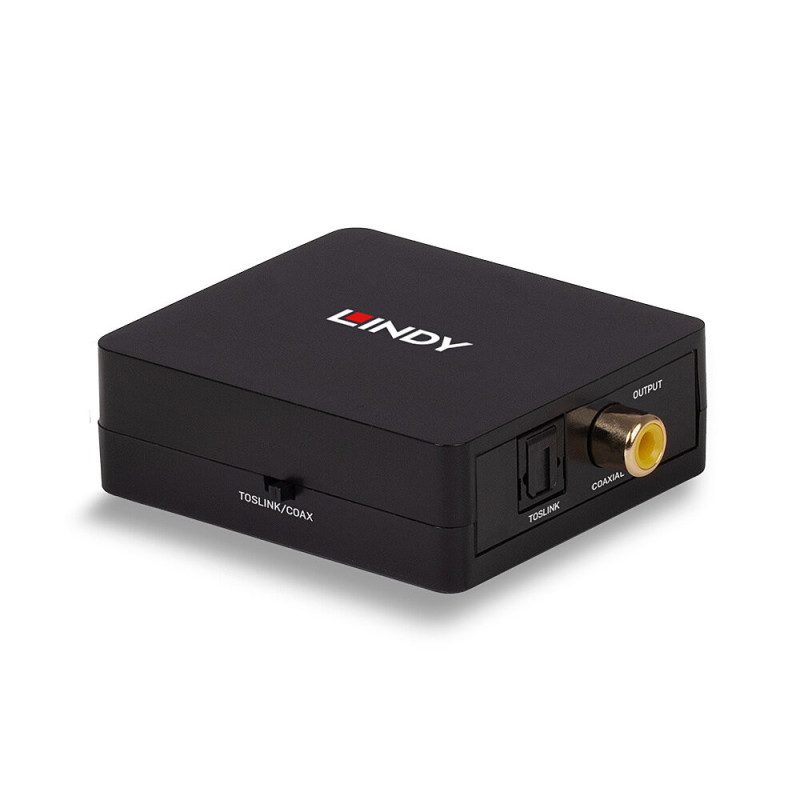

Audio Converter - Bi-Directional SPDIF TosLink Converter 192KHz 2.0 / 5.1 Audio
Product reference:
14-4002888754576
The bi-directional SPDIF and TosLink audio signal converter supports LPCM 2.0, DD 2/5.1 and DTS 5.1 audio formats. It features a maximum audio sampling rate of 192KHz, 75 Ohm input/output impedance and a compact design with dimensions of 60.5x54x20.5 mm.
Audio Converter - Bi-Directional SPDIF TosLink Converter 192KHz 2.0 / 5.1 Audio
Product reference:
14-4002888754576
The bi-directional SPDIF and TosLink audio signal converter supports LPCM 2.0, DD 2/5.1 and DTS 5.1 audio formats. It features a maximum audio sampling rate of 192KHz, 75 Ohm input/output impedance and a compact design with dimensions of 60.5x54x20.5 mm.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Not available
Bidirectional digital SPDIF audio converter
Bi-directionally converts SPDIF and TosLink audio signals, supporting LPCM 2.0, DD 2/5.1 and DTS 5.1 audio formats. Features include a maximum audio sampling rate of 192KHz, 75 Ohm input/output impedance and a compact design measuring 60.5x54x20.5mm.
- Supports multiple audio formats including LPCM 2.0, DD 2/5.1 and DTS 5.1, ensuring versatile audio playback.
- High-quality audio performance with maximum sample rates of 192KHz and a signal-to-noise ratio of 142 dB.
- Compact and lightweight design for easy integration into any sound system.
- Both Toslink (Optical) and SPDIF (Coaxial) connectors are included, providing flexible connection options.
Features | |
|---|---|
| Product type | Audio converter |
| Model | Bidirectional digital SPDIF audio converter |
Specifications | |
| Audio interface | Toslink (Optical), SPDIF |
| Chipset | MIC-74HC04 |
| Maximum supported audio sample rate | 192KHz |
| Input impedance | 75 Ohms |
| Output impedance | 75 Ohms |
| Output voltage | 1VRMS |
| Frequency response | ±0.5dB |
| Signal-to-noise ratio | 142 dB |
Connectors | |
| Entrance | Toslink (Optical) / SPDIF (Coaxial) |
| Exit | Toslink (Optical) / SPDIF (Coaxial) |
| Power supply | Mini-USB |
Physical properties | |
| Dimensions (WxDxH) | 60.5 x 54 x 20.5 mm |
| Housing | Plastic |
| Net weight | 0.04 kg |
| Working temperature | 0°C - 40°C |
| Safety temperature | -20°C - 60°C |
| Humidity | 20-90% RH (non-condensing) |
| Power requirements | 5VDC 1A |
| Color | Black |
Package contents | |
| Coaxial/Optical audio converter, USB power cable, LINDY manual | |
