Adapter - HDMI ARC Audio Adapter, 192kHz, RCA, 3.5mm, Black
Product reference:
14-4002888383639
The HDMI ARC audio extractor allows you to extract audio from HDMI displays with analog audio outputs, including RCA and 3.5mm. It supports a maximum audio sampling rate of up to 192kHz and operates in a temperature range of 0°C to 40°C.
Adapter - HDMI ARC Audio Adapter, 192kHz, RCA, 3.5mm, Black
Product reference:
14-4002888383639
The HDMI ARC audio extractor allows you to extract audio from HDMI displays with analog audio outputs, including RCA and 3.5mm. It supports a maximum audio sampling rate of up to 192kHz and operates in a temperature range of 0°C to 40°C.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days

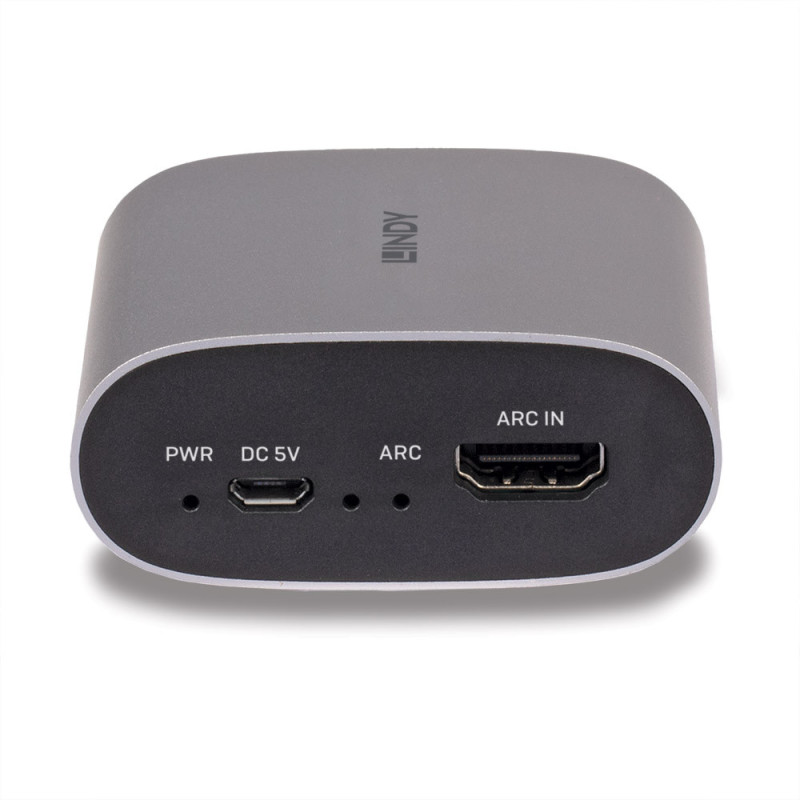

HDMI ARC Audio Adapter, 192kHz, RCA, 3.5mm, Black
The HDMI ARC audio extractor allows you to extract audio from HDMI displays with analog audio output options, including RCA and 3.5mm. It supports a maximum audio sampling rate of up to 192kHz and operates in a temperature range of 0°C to 40°C.
- Extracts audio from HDMI® displays, providing a variety of audio output options.
- Supports analog audio outputs, including 3.5mm and RCA connectors.
- Compact design, measuring 70 x 65 x 27mm, perfect for any setting.
- A 1 m USB cable is included for convenient power connection.
Features | |
|---|---|
| Product type | HDMI ARC audio extractor |
| Model | N/A |
Specifications | |
| Video interface | HDMI® |
| Interface standard | HDMI® 1.4 |
| Audio interface | Analog audio 3.5mm RCA |
| Chip | SPHE8107S |
| Maximum supported audio sample rate | 192kHz |
| Output impedance | 100Ω |
| Frequency response | 20 Hz to 20 kHz -0.05 - +0.05dB |
| Signal-to-noise ratio | 101dB |
Connectors | |
| Entrance | 1 x HDMI® Type A [19-Pin Female] / 1 x Micro USB |
| Exit | 1 x L/R audio output [RCA] / 1 x 3.5mm L/R |
| Power supply | USB 5V/500mA 0.86W (Max) |
Physical properties | |
| Dimensions | 70 x 65 x 27mm (2.75 x 2.55 x 1.06in) |
| Housing | Plastic |
| Net weight | 0.081kg (0.17lb) |
| Operating temperature | 0°C - 40°C (32°F - 104°F) |
| Safety temperature | -20°C - 60°C (-4°F - 140°F) |
| Humidity | 20-90% RH (non-condensing) |
| Color | Silver |
Package contents | |
| 1 x HDMI® ARC audio extractor, 1 x 1m USB cable (USB-A to Micro USB), 1 x User manual | |
