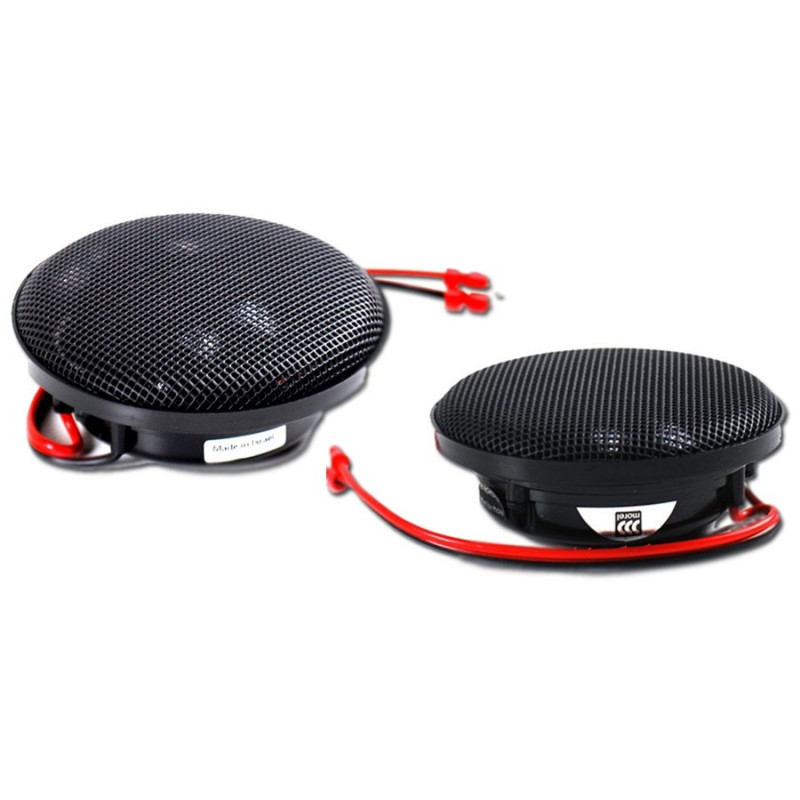

MOREL CDM 880 tweeters

88 mm midrange tweeters

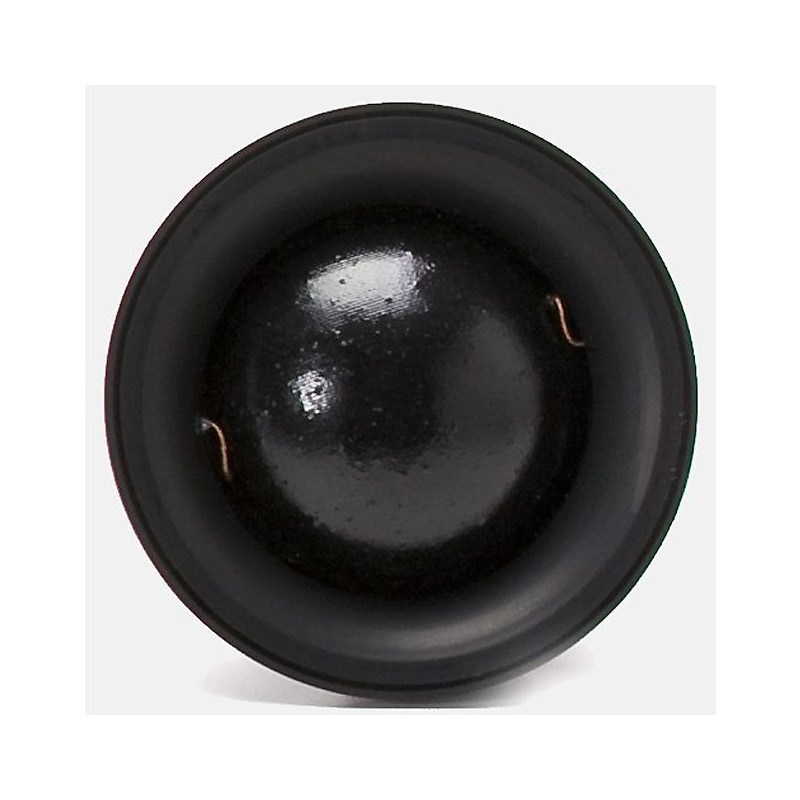

The improved CDM880 Acuflex™ soft dome is optimized for high-end audio systems providing lower resonance and higher X-Max.

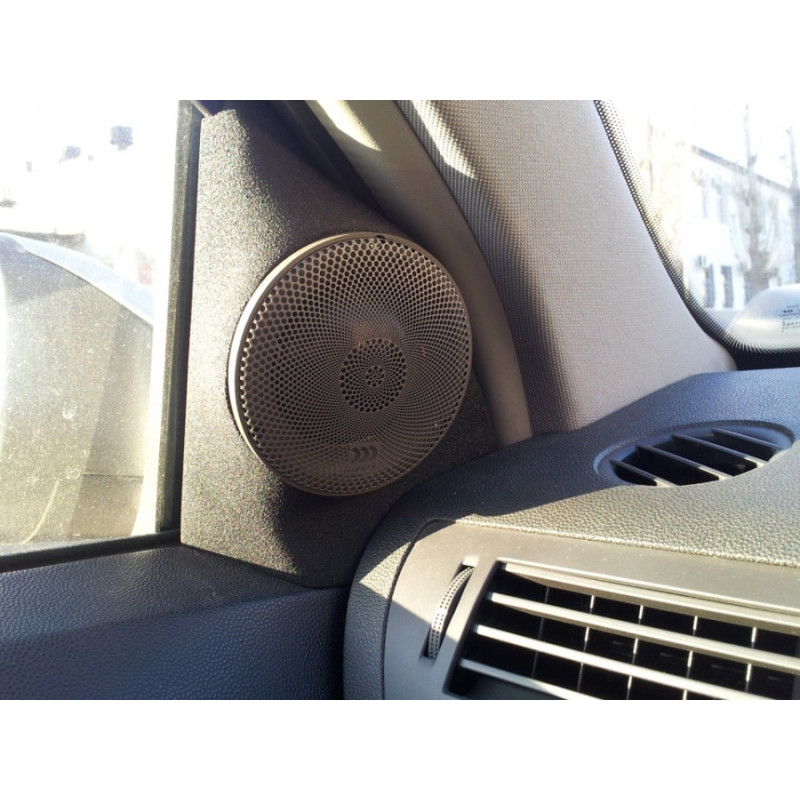

Morel CDM-880A midrange driver for more demanding applications, optimized for high-end systems. It features a soft dome diaphragm and a large-diameter Hexatech aluminum voice coil, which provides the diaphragm with a larger sound radiation surface. It features a low resonance frequency of 390Hz, allowing for full-range midrange reproduction and a deep, clear sound. The CDM-880 is equipped with a CAR filter, ensuring excellent acoustic frequency response while eliminating the need for a rear chamber. Designed for high-quality and easy installation in the driver's seat or front pillars, it achieves a truly immersive sound stage in your vehicle.

Number of speakers included

2

Maximum output power

300

Rated power

100 W

Type

midrange

Form

round

Type

assembly

Speaker size

88 mm

Frequency response Hz

300-6000

Efficiency (2.83V/1M)

89 dB

Impedance

6 ohms

Additional information

• Aculflex coated soft dome membrane
• drive system: double neodymium

Equipment

speaker set, assembly instructions, user manual, warranty card

Guarantee

24 months

Name of manufacturer/importer

Morel

Conformity mark
