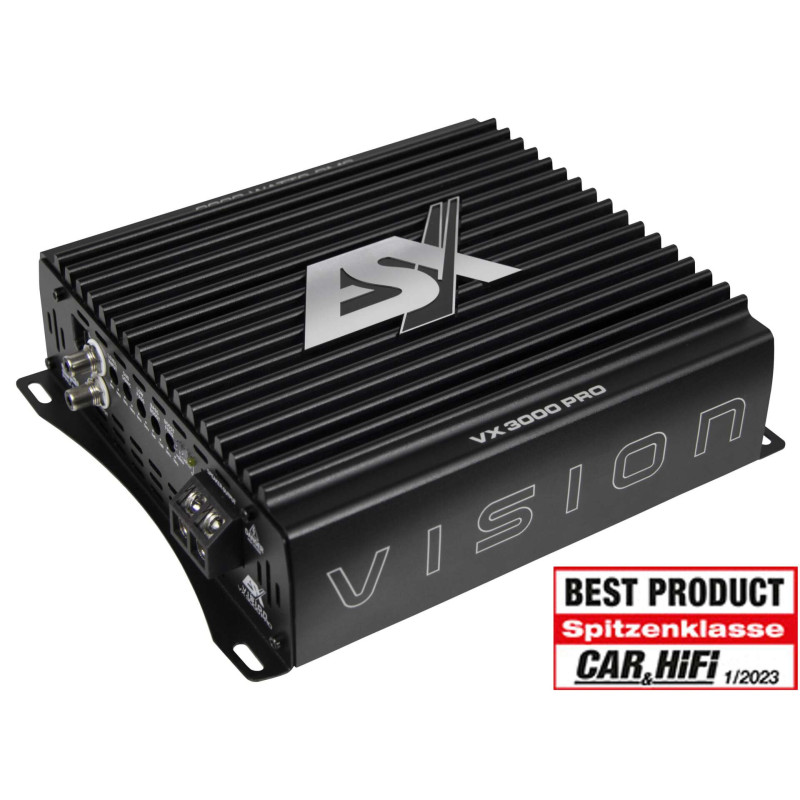

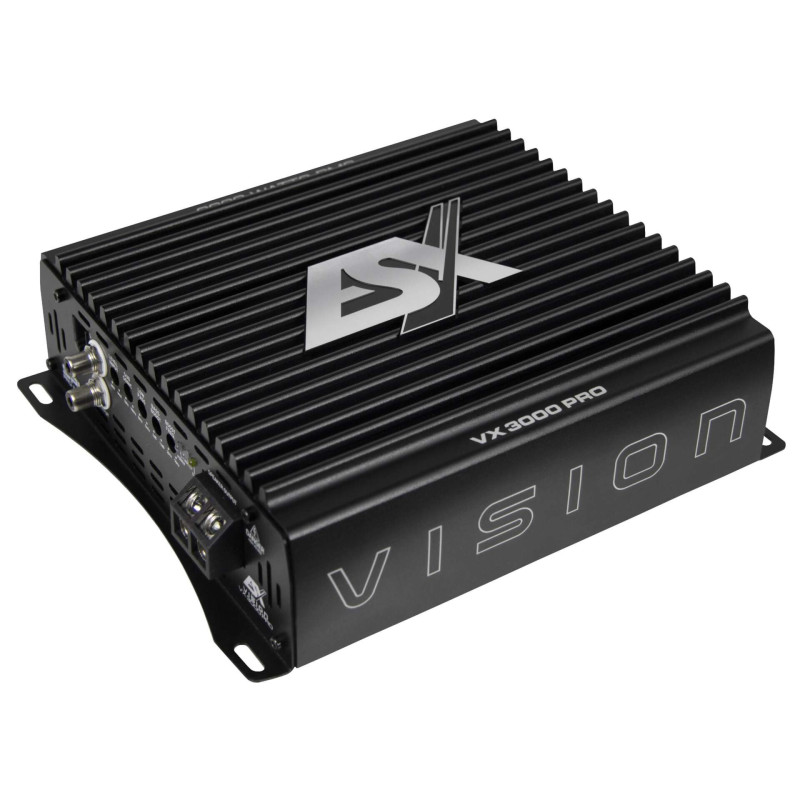

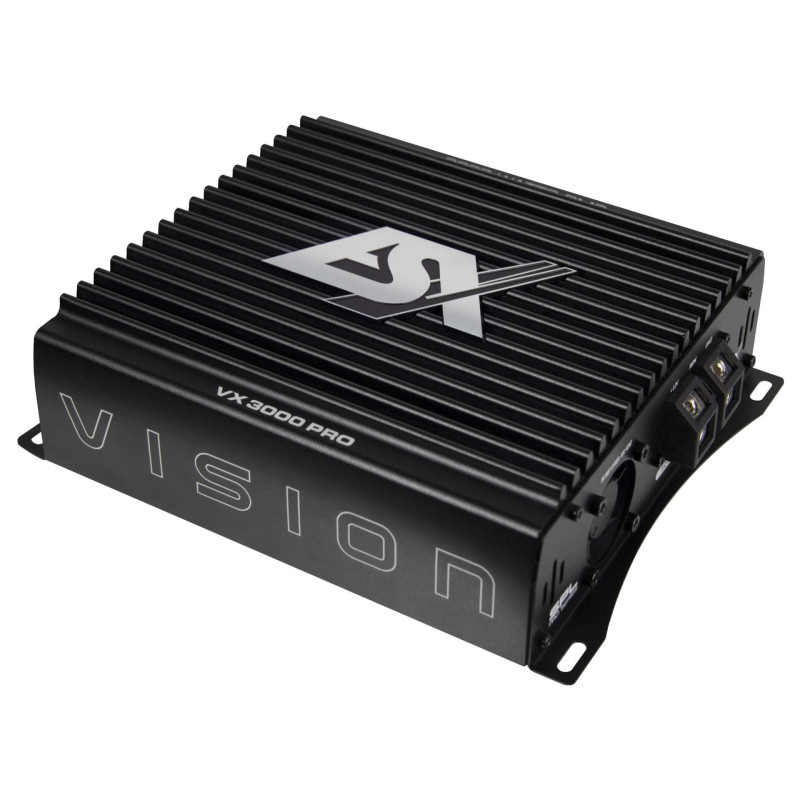

ESX VX3000PRO - single-channel amplifier, RMS power 1 x 3000 Watts at 1 Ohm

ESX VX3000PRO - single-channel amplifier

The ESX VX3000PRO is a powerful monoblock designed to power demanding subwoofers in complex car audio systems. Mono Ultra Class D combines very high efficiency with a compact housing, making the amplifier suitable for both everyday installations and more demanding projects focused on strong, dynamic bass. The manufacturer emphasizes high efficiency reaching up to 96%, solid power and speaker terminals and an aluminum heatsink with good thermal properties.

A major advantage of the VX3000PRO is its wide range of adjustments, which allows for precise matching of the amplifier to the subwoofer and the entire audio system. subsonic filter 10-100 Hz, low-pass filter LPF 50-5000 Hz and Bass Boost 0-12 dB at 30-70 Hz The amplifier is also equipped with inputs. RCA Low Level and RCA High Level, diode Clipping LED and 3-stage security system, which facilitates configuration and increases work safety.

This model is for those who expect a very large power reserve, stable operation, and flexible configuration in installations focused on strong bass. 191 x 66 x 230 mm make installation easier, and modern Class D technology allows for high efficiency while maintaining high output power. In the official specifications, the manufacturer states 1 x 1200 / 2200 / 3300 W RMS at 4 / 2 / 1 Ohm.

Key features:

• single-channel amplifier Mono Ultra Class D
• RMS power: 1 x 1200 W at 4 Ω
• RMS power: 1 x 2200 W at 2 Ohms
• RMS power: 1 x 3300 W at 1 Ohm
• subsonic filter: 10-100 Hz
• LPF filter: 50-5000 Hz
• Bass Boost: 0-12 dB at 30-70 Hz
• RCA Low Level mono input: 0.4 - 3.6 V
• RCA High Level mono input: 1.0 - 9.0V
• efficiency: up to 96%
• dimensions: 191 x 66 x 230 mm
