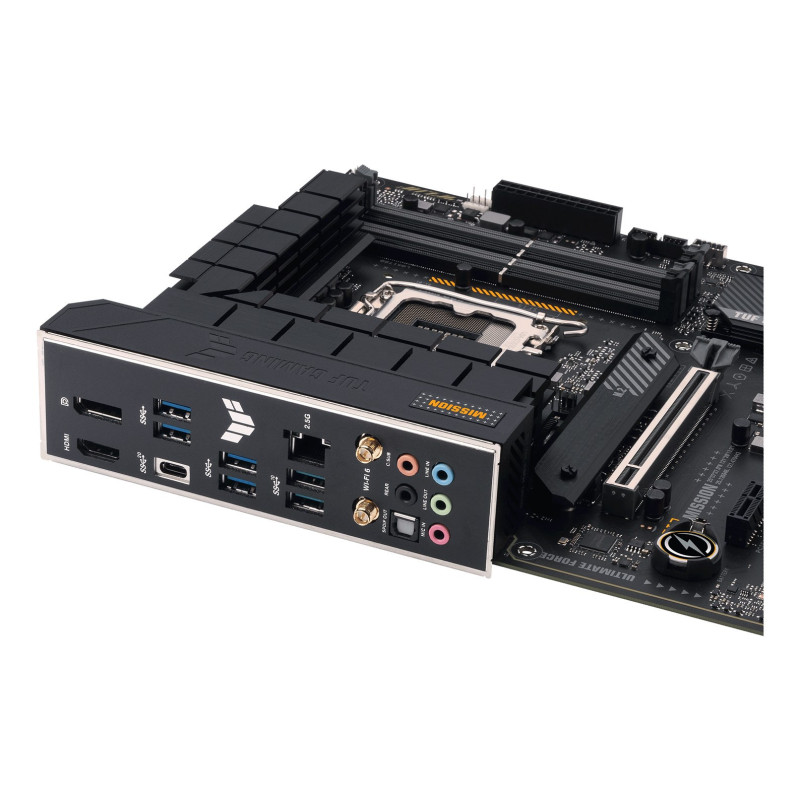

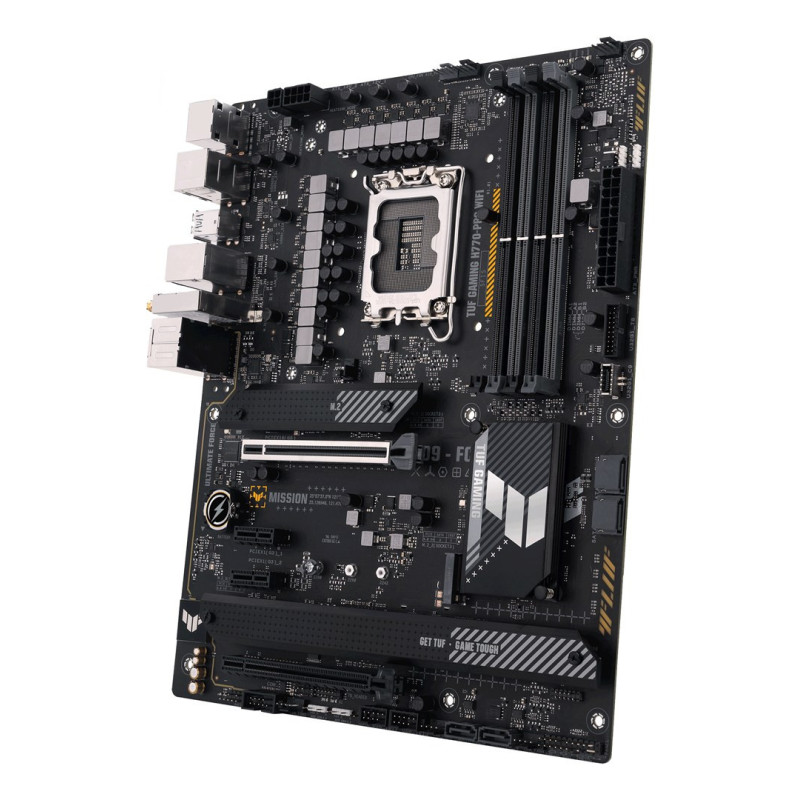

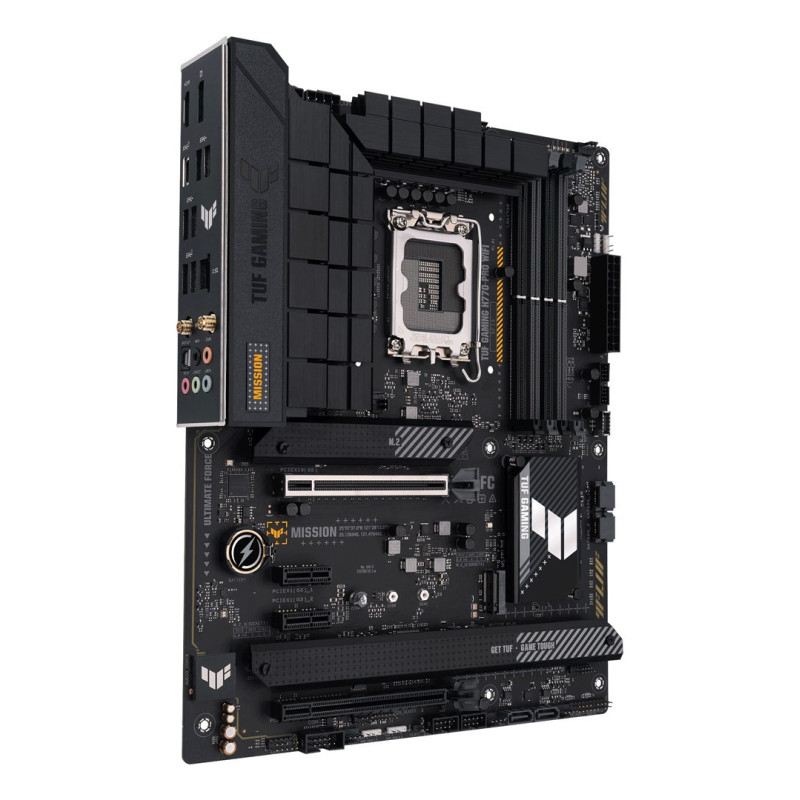

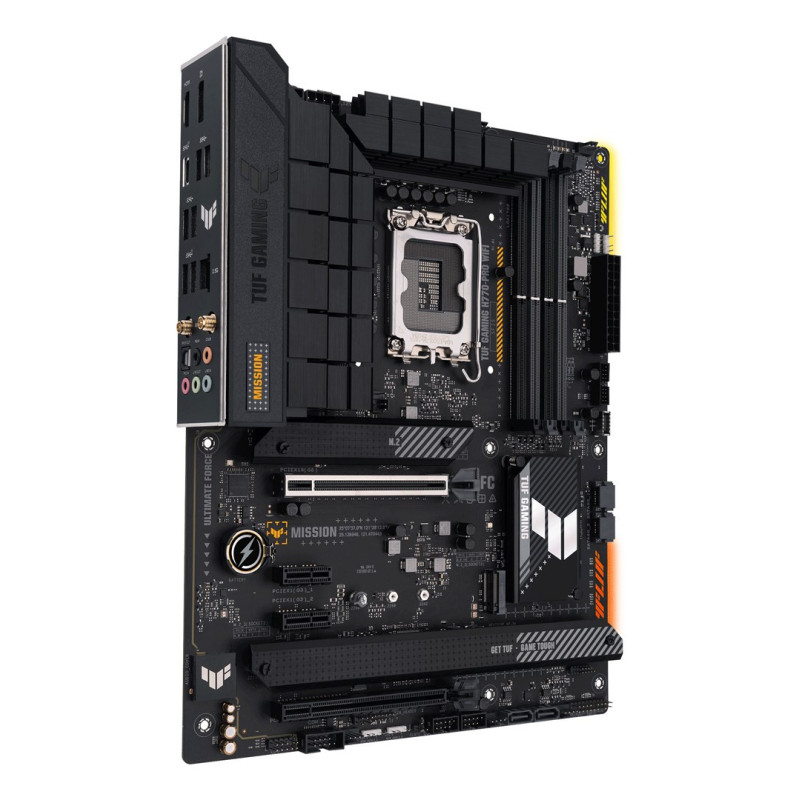

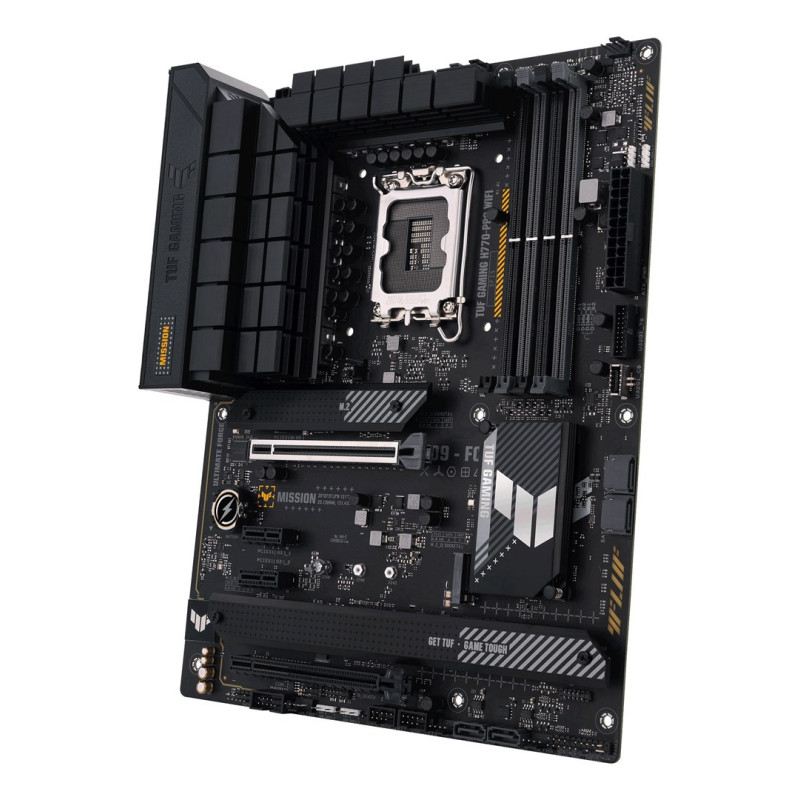

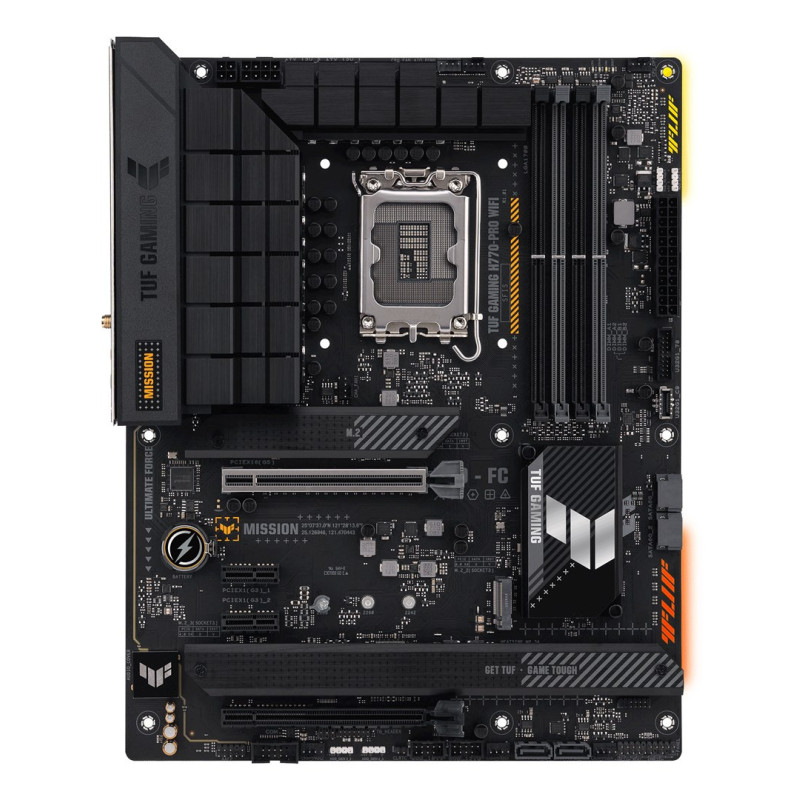

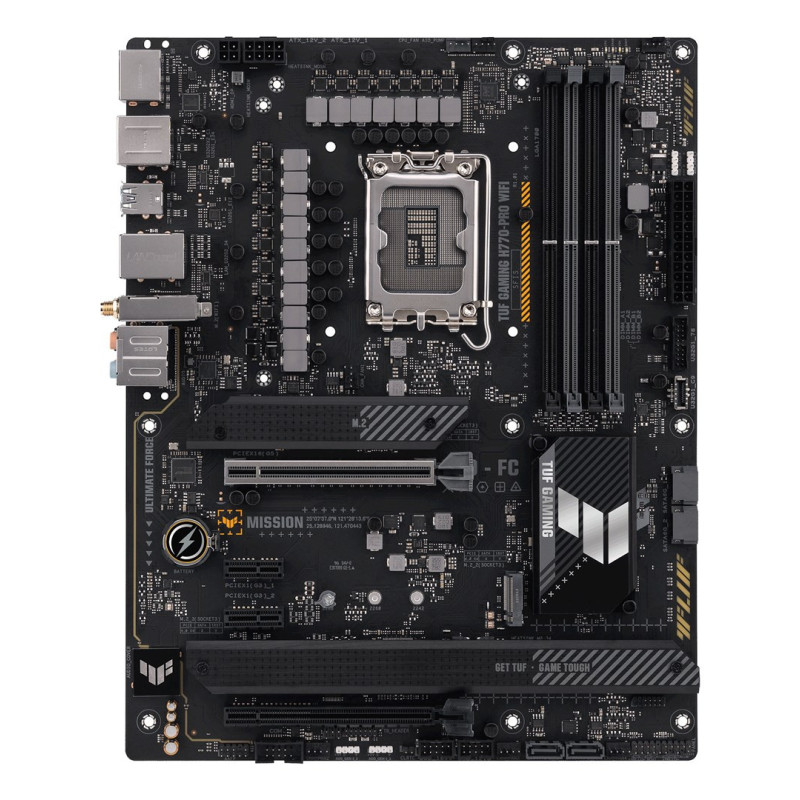

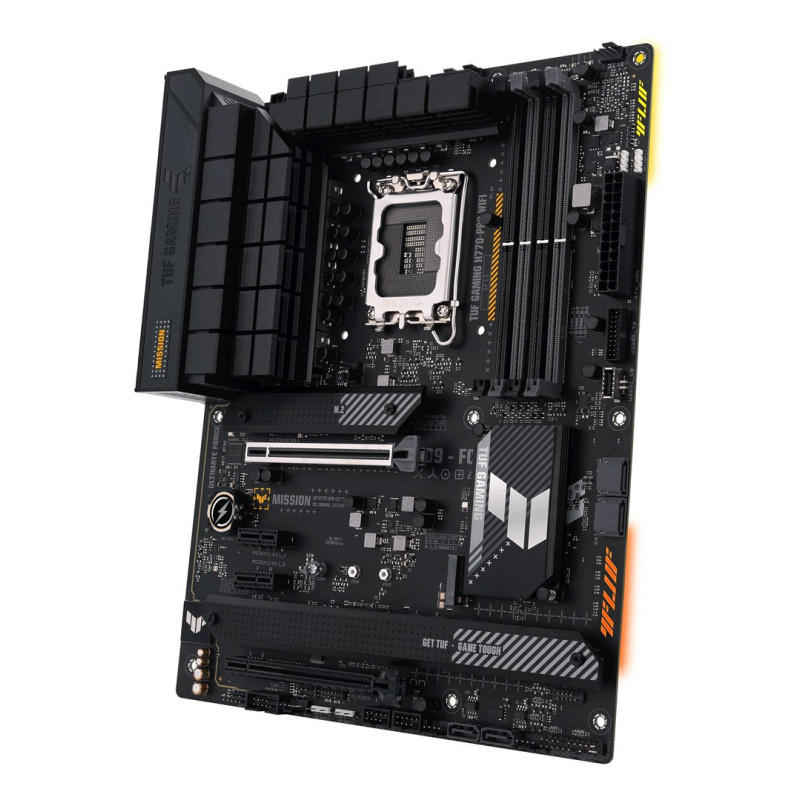

ASUS TUF GAMING H770-PRO WIFI Intel H770 LGA 1700 ATX
Product reference:
6-90MB1D50-M1EAY0
ASUS TUF GAMING H770-PRO WIFI Intel H770 LGA 1700 ATX
ASUS TUF GAMING H770-PRO WIFI Intel H770 LGA 1700 ATX
Product reference:
6-90MB1D50-M1EAY0
ASUS TUF GAMING H770-PRO WIFI Intel H770 LGA 1700 ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Supported processor sockets | LGA 1700 |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 1700 |
| Parallel processing technology support | Not supported |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Motherboard chipset | Intel H770 |
| Power source type | ATX |
| Windows operating systems supported | Windows 11, Windows 10 |
| Cooling type | Passive |
| Supported memory clock speeds | 6800, 6200, 4800, 6400, 5600, 7200, 5000, 7000, 5200, 6600, 6000, 5800, 5400 |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 7200 MHz |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Depth | 244 mm |
| Width | 305 mm |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11b, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), 802.11g, Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Bluetooth version | 5.2 |
| Thunderbolt headers | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| USB 2.0 connectors | 2 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Number of chassis fan connectors | 4 |
| Number of COM connectors | 1 |
| Front panel connector | Yes |
| Chassis intrusion connector | Yes |
| RGB LED pin header | Yes |
| 12V power connector | Yes |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| User guide | Yes |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |
| RAID levels | 1, 10, 5 |
| Number of storage drives supported | 8 |
| Number of HDDs supported | 4 |

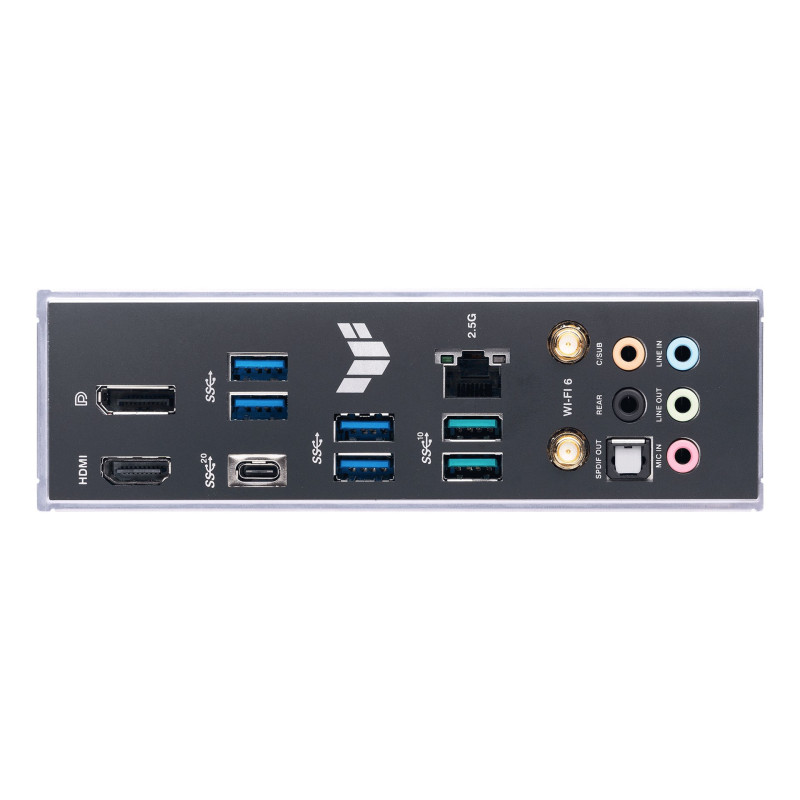

| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| S/PDIF out port | Yes |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| WiFi-AP antenna jack | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Line-in | Yes |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 4 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Warnings | Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with electronics to prevent electrostatic damage., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
