Akyga AK-B1-550 power supply unit 550 W 20+4 pin ATX ATX Grey
Product reference: 6-AK-B1-550

Akyga AK-B1-550 power supply unit 550 W 20+4 pin ATX ATX Grey

  • New

Akyga AK-B1-550 power supply unit 550 W 20+4 pin ATX ATX Grey

Product reference: 6-AK-B1-550

Akyga AK-B1-550 power supply unit 550 W 20+4 pin ATX ATX Grey

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
3220 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
6 - 11
business days

Your message has been successfully sent!
Fill in the required fields*
Not available
Sustainability certificates RoHS
Product colour Grey
Cooling type Active
Fan location Top
Fan diameter 12 cm
Number of fans 1 fan(s)
On/off switch Yes

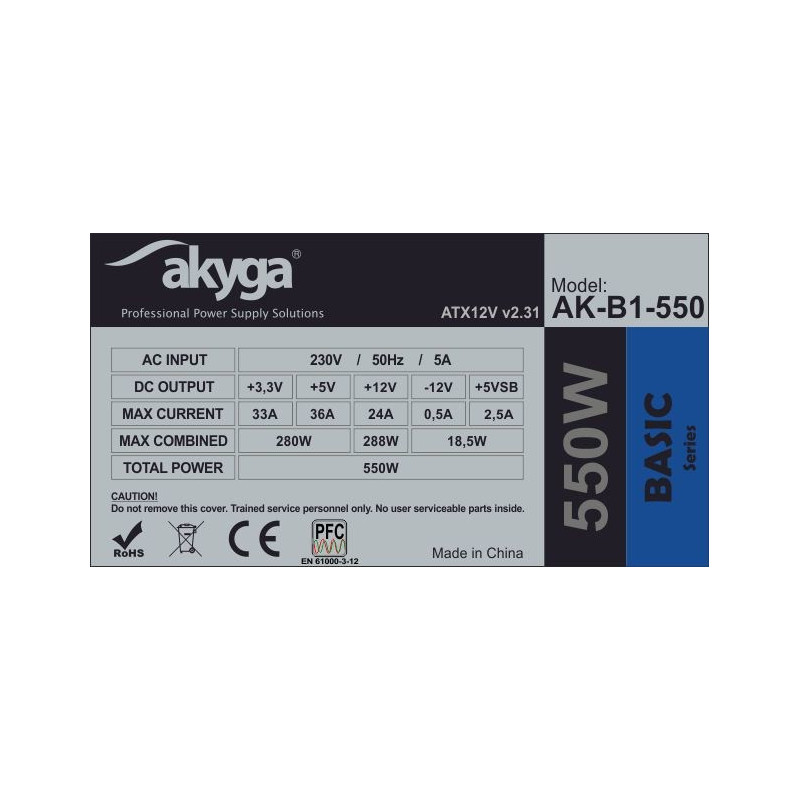

Combined power (+12V) 288 W
Total power 550 W
Max output current (+3.3V) 33 A
AC input voltage 230 V
Combined power (+5V) 280 W
Input current 5 A
Combined power (+3.3V) 280 W
Max output current (+5V) 36 A
Max output current (+12V) 24 A
Power protection features Over current,
Over power,
Short circuit,
Over voltage,
Overheating
Efficiency 70%
Max output current (-12V) 0.5 A
Peak power 550 W
Combined power (+5Vsb) 18.5 W
Max output current (+5Vsb) 2.5 A
Combined power (-12V) 18.5 W
Operating temperature (T-T) 5 - 50 °C
Width 150 mm
Weight 1.04 kg
Height 85 mm
Depth 140 mm
Certification CE, REACH
Purpose PC
Power supply unit (PSU) form factor ATX
Mean time between failures (MTBF) 100000 h
ATX version 2.31
Supported motherboard form factors ATX

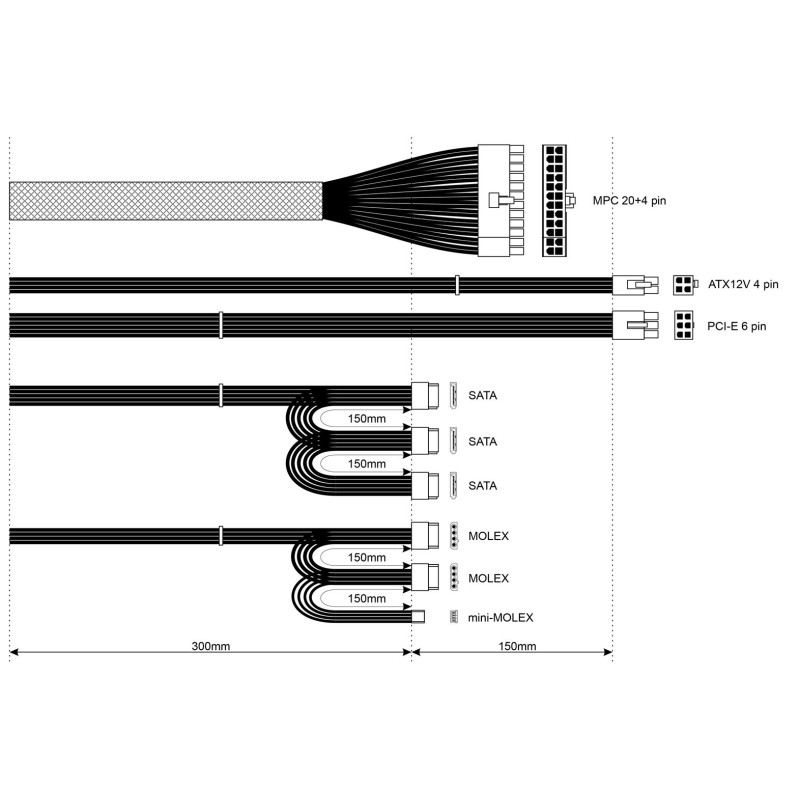

PCI Express power connectors (6-pin) 1
SATA power cable length 300
Cabling type Non-Modular
CPU P4 connector (4-pin) 1
Peripheral (Molex) power connectors (4-pin) 2
Peripheral (Molex) power cable length 300
Motherboard power connector 20+4 pin ATX
CPU power cable length 45 cm
Number of SATA power connectors 3
Warranty card Yes
