Network Extender - LINDY Cat.6A USB 3.2 Gen 1 HDBaseT Extender 10 m
Product reference:
14-4002888434102
The USB 3.2 Gen 1 extender supports 5Gbps bandwidth over a maximum distance of 100m using Cat.6A cable. It features features such as power over the cable, RS232 control, and multiple USB Type A outputs.
Network Extender - LINDY Cat.6A USB 3.2 Gen 1 HDBaseT Extender 10 m
Product reference:
14-4002888434102
The USB 3.2 Gen 1 extender supports 5Gbps bandwidth over a maximum distance of 100m using Cat.6A cable. It features features such as power over the cable, RS232 control, and multiple USB Type A outputs.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
LINDY Cat.6A USB 3.2 Gen 1 HDBaseT Extender 10 m
The USB 3.2 Gen 1 extender supports 5Gbps bandwidth over a maximum distance of 100m using Cat.6A cable. It includes features such as power over the cable, RS232 control, and multiple USB Type A outputs.
- Extends USB 3.2 Gen 1 signals up to 100 m (328.08 ft) using Cat.6A cables.
- Supports high-speed data transfer with a bandwidth of up to 5 Gbps.
- Features: 'Power over Cable' and multiple data transfer modes including bulk and isochronous.

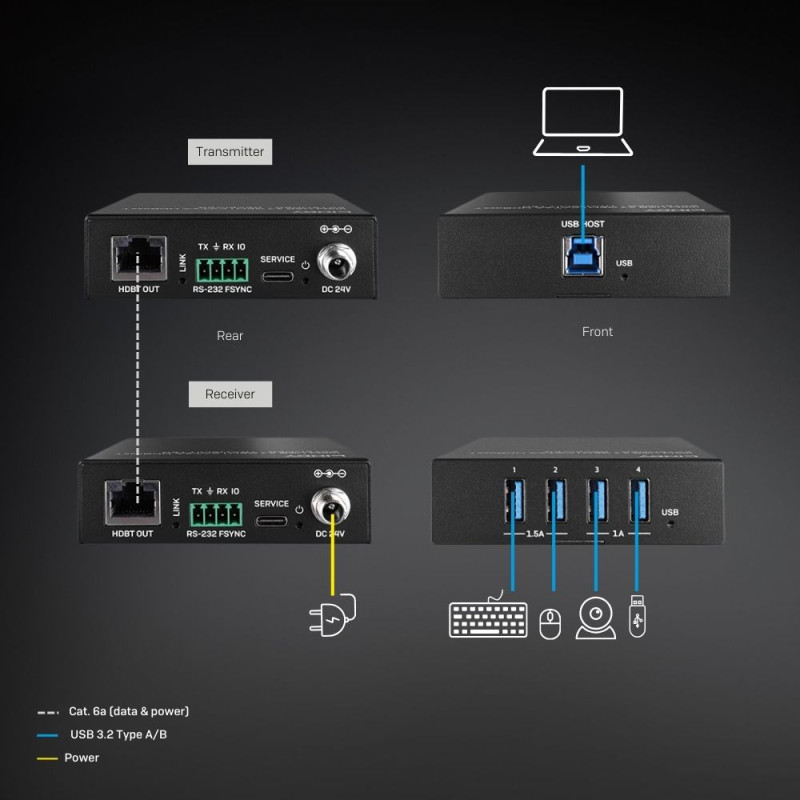

- Includes a transmitter and receiver unit with multiple USB outputs for a variety of connections.
Features | |
|---|---|
| Product type | Network extender |
| USB standard | USB 3.2 Gen 1 |
| Chipset | VS6320 |
Specifications | |
| Supported bandwidth | 5Gbps |
| Transmission medium | Cat.6A or higher network cable |
| Maximum distance | 100 m (328.08 ft) |
Connections | |

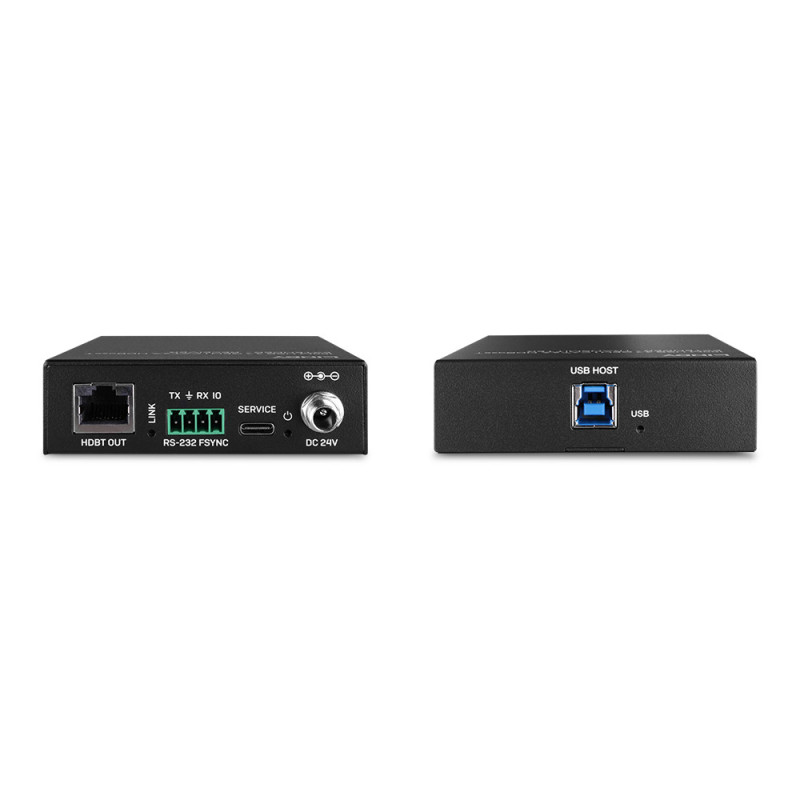

| Transmitter input | USB 3.0 Type B (Female) |
| Transmitter output | RJ45 (Female) |
| Receiver input | RJ45 (Female) |
| Receiver output | 4 x USB Type A (Female) |
| Control ports | RS-232 4-Pin Terminal Block |
| Power supply | 5.5/2.1mm DC jack |
Physical properties | |
| Dimensions (WxHxD) | 100 x 85 x 30 mm (3.94 x 3.35 x 1.18 in) per unit |
| Housing | Metal |
| Net weight | 0.86 kg (1.9 lb) |
| Working temperature | 0° - 40°C (32°F - 104°F) |
| Storage temperature | -20°C - 60°C (-4°F - 140°F) |
| Humidity | 0 - 90% RH (non-condensing) |
| Power requirements | 24VDC 2A |
| Color | Black |
Miscellaneous | |
| Packaging type | Cardboard box |
| Package dimensions | 235 x 150 x 80 mm (9.25 x 5.91 x 3.15 in) |
| Gross weight | 1.07 kg (2.36 lb) |
| Product compliance | CE, UKCA, FCC, RoHS REACH, CP65 |
Package contents | |
| |
