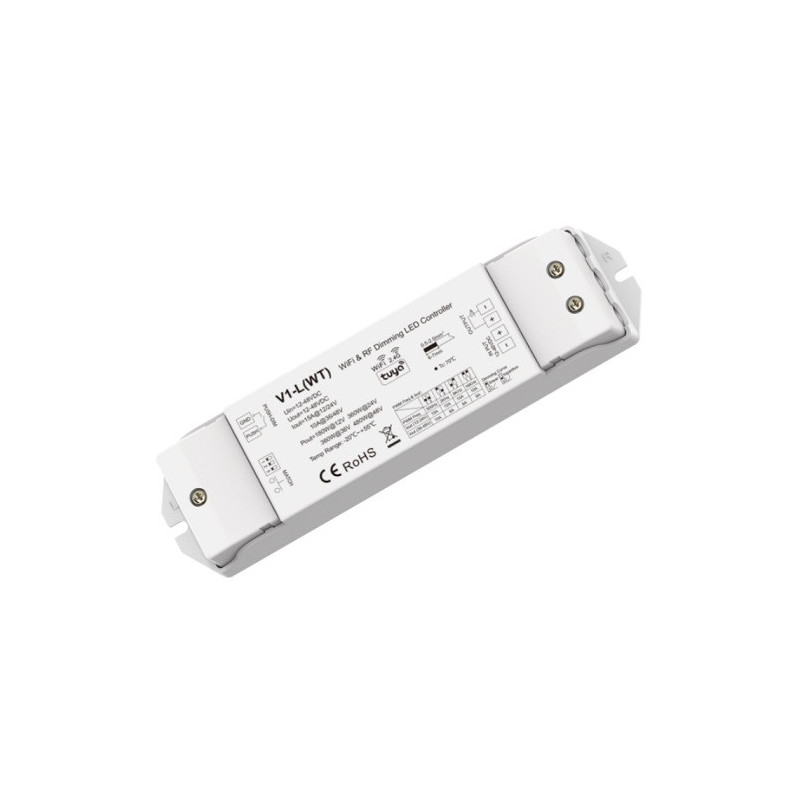

LED Controller - V1-L(WT) 12-48V 1x15A Wi-Fi Push-Dim Tuya
Product reference: 14-9990001084646

The V1-L(WT) LED controller operates at 12-48V DC and supports a maximum output of 15A. It features Wi-Fi and RF control, 4096 brightness levels, and is compatible with Tuya Smart and voice assistants.

LED Controller - V1-L(WT) 12-48V 1x15A Wi-Fi Push-Dim Tuya

LED Controller - V1-L(WT) 12-48V 1x15A Wi-Fi Push-Dim Tuya

Product reference: 14-9990001084646

The V1-L(WT) LED controller operates at 12-48V DC and supports a maximum output of 15A. It features Wi-Fi and RF control, 4096 brightness levels, and is compatible with Tuya Smart and voice assistants.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
3565 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
4 - 5
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

V1-L(WT) LED Controller, 12-48V, 1x15A, With Push-Dimm, Tuya, Wi-Fi


The V1-L(WT) LED controller operates at 12-48V DC and supports a maximum current output of 15A. It features Wi-Fi and RF control, 4096 brightness levels, and is compatible with Tuya Smart and voice assistants.


  • Intelligent Wi-Fi and RF LED controller with 4096 brightness levels for ultra-smooth light control.
  • Compatible with Tuya Smart and Smart Life apps, allowing remote control and voice assistant integration.
  • Push-Dimm function for easy control using standard momentary switches, with the ability to connect up to 10 RF remote controls.
  • Advanced PWM technology with selectable frequency values ​​and customizable brightness curves for personalized lighting experiences.

Features

Product type LED Controller
Model V1-L(WT)

Specifications

Input voltage 12V - 48V DC
Output voltage 12V - 48V DC
Output current 15A @ 12/24V; 10A @ 36/48V
Output power 180W @ 12V; 360W @ 24V; 360W @ 36V; 480W @ 48V
PWM frequency 500Hz / 2kHz / 8kHz / 16kHz
Grayscale levels 4096 levels
Brightness range 0-100%
Control distance Up to 30m
Working temperature -20 to +55°C
Dimensions 178 x 50 x 38 mm
Weight 116 g
Color White
Security class IP20 (not waterproof)
Compatible wire cross-section 0.5 - 2.0 mm²
Certificates CE, EMC, RoHS
