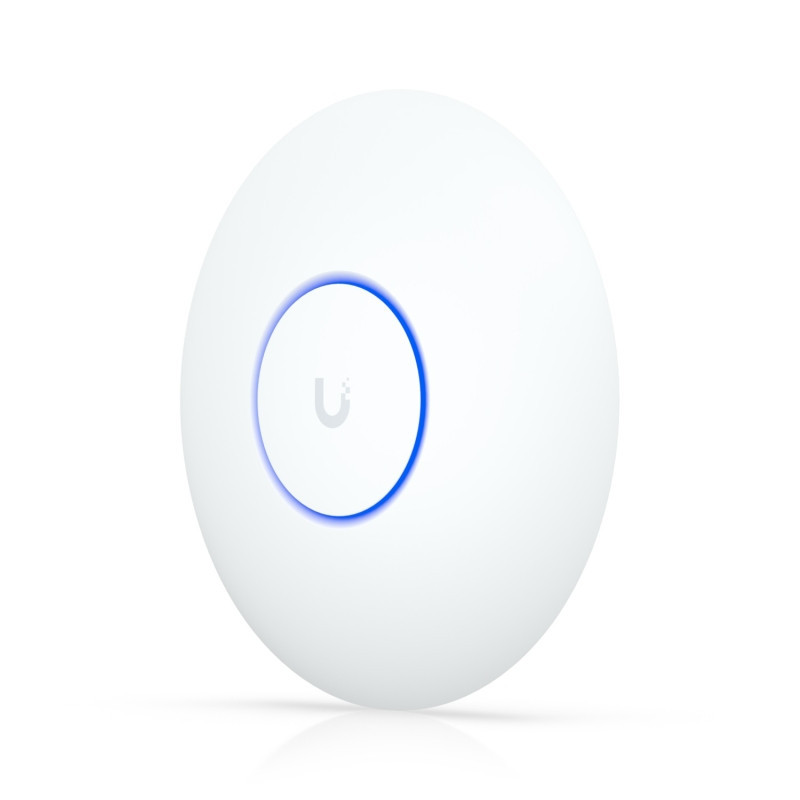

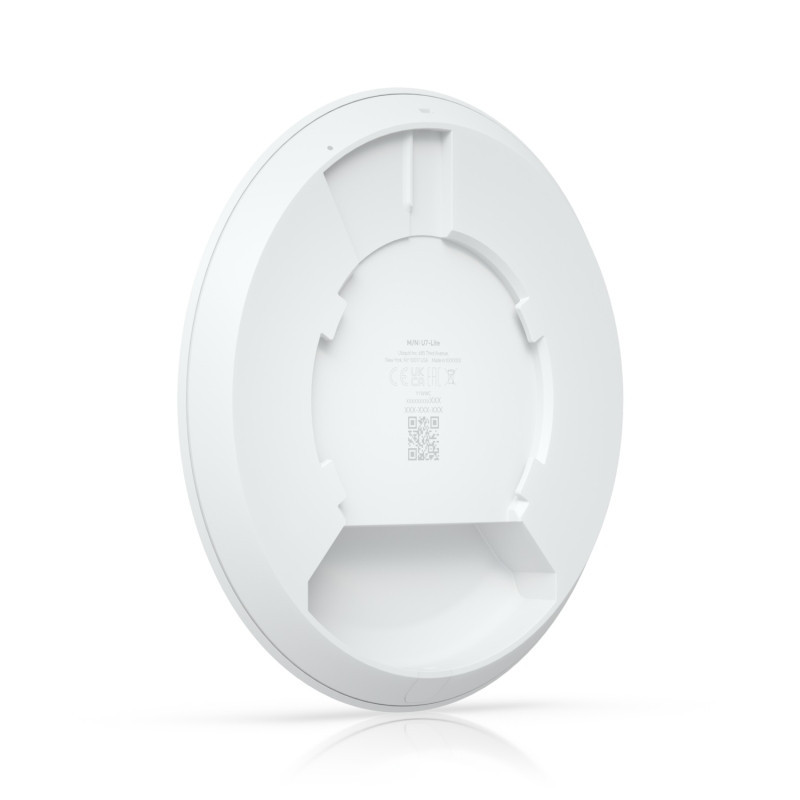

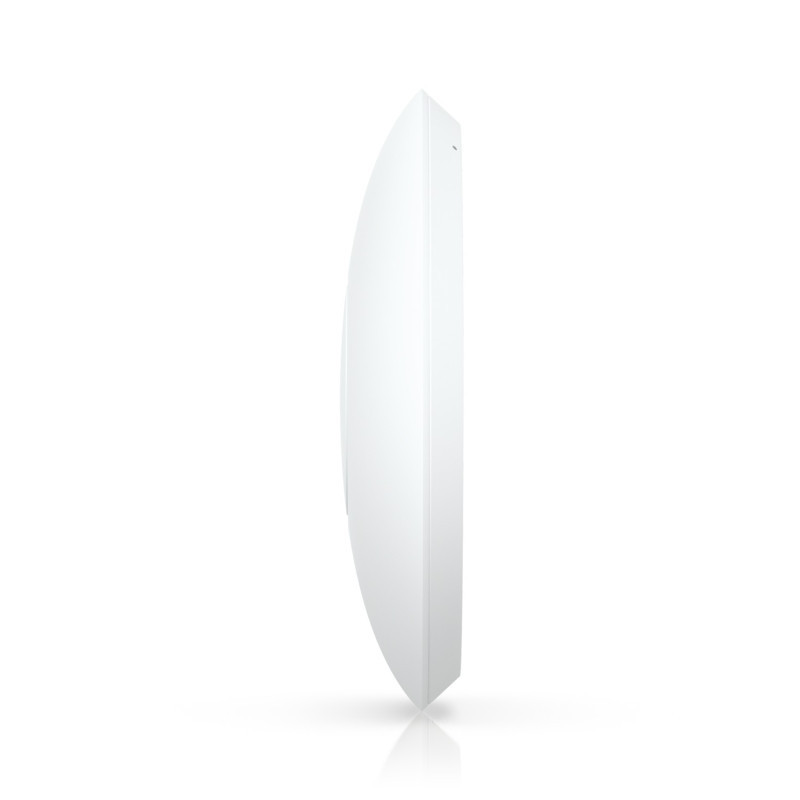

UBIQUITI UniFi WiFi 7 prieigos taškas U7 Lite

Advanced Wi-Fi 7 Access Point

The UniFi U7 Lite is Ubiquiti's new addition to its access point lineup, bringing the cutting-edge Wi-Fi 7 (802.11be) technology to both home and small business environments. This device offers significant advancements over its predecessors, such as the U6-Lite, by delivering enhanced speed, reduced latency, and improved network efficiency. With a sleek, compact design measuring Ø171.5 x 33 mm, the U7 Lite seamlessly integrates into various settings, providing robust wireless coverage across areas up to 115 m². Its support for Wi-Fi 7 ensures users experience faster data rates and more reliable connections, catering to the increasing demands of modern wireless applications. The device is powered via PoE, adhering to the 802.3af standard, which simplifies deployment by reducing the need for additional power outlets. Consuming only 13W at maximum, the U7 Lite delivers energy efficiency without sacrificing performance, making it a perfect upgrade for modern Wi-Fi networks.

Exceptional Performance

Equipped with dual-band capabilities, the U7 Lite operates on both 2.4 GHz and 5 GHz frequencies, utilizing 2x2 (DL/UL MU-MIMO) spatial streams for efficient data transmission. The 5 GHz band supports channel widths up to 240 MHz, achieving maximum data rates of 4.3 Gbps, while the 2.4 GHz band offers speeds up to 688 Mbps with 40 MHz bandwidth. This access point is designed to handle over 200 concurrent clients, making it suitable for environments with high device density. The inclusion of a 2.5 GbE RJ45 uplink port ensures high-speed wired connectivity, complementing the advanced wireless features. Constructed with UV-stabilized polycarbonate, the U7 Lite is built to withstand various environmental conditions, operating efficiently within temperatures ranging from -30°C to 40°C. Its compact form factor and versatile mounting options (ceiling or wall) allow for flexible installation in diverse settings.

Advanced Features

The U7 Lite incorporates a suite of advanced networking features to enhance user experience and network performance. It supports wireless meshing, band steering, and technologies like 802.11v BSS Transition Management, 802.11r Fast Roaming, and 802.11k Radio Resource Management, ensuring seamless connectivity and optimal resource utilization. For network security and customization, features such as captive hotspot portals, voucher and payment-based authentication, and guest network isolation are available. These capabilities are easily managed through the UniFi Network Application, providing administrators with intuitive control over network settings and performance metrics.

Dimensions: Ø171.5 x 33 mm (Ø6.8 x 1.3')

WiFi Standard: WIFi 7

Spatial Streams: 4

Coverage Area: 115 m² (1,250 ft²)

Max. Client Count: 200+

Uplink: 2.5 GbE

Mounting: Ceiling, Wall (Lite Mount Included)

Power Method: PoE

Performance

MIMO:

5 GHz - 2 x 2 (DL/UL MU-MIMO)

2.4 GHz - 2 x 2 (DL/UL MU-MIMO)

Max. Data Rate:

5 GHz - 4.3 Gbps (BW240)

2.4 GHz - 688 Mbps (BW40)

Antenna Gain:

5 GHz - 5 dBi

2.4 GHz - 4 dBi

Max. TX Power:

5 GHz - 24 dBm

2.4 GHz - 23 dBm

Max. BSSIDs: 8 per Radio

Supported Data Rates:

802.11be (WiFi 7) - 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)

802.11ax (WiFi 6) - 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11ac (WiFi 5) - 6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11n - 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features

Wireless Meshing: Yes

Band Steering: Yes

802.11v BSS Transition Management: Yes

802.11r Fast Roaming: Yes

802.11k Radio Resource Management (RRM): Yes

Advanced Radio Management: Yes

Passpoint (Hotspot 2.0): Yes

Captive Hotspot Portal:

Custom Branding Landing Page: Yes

Voucher Authentication: Yes

Payment-Based Authentication: Yes

External Portal Server Support: Yes

Password Authentication: Yes

Guest Network Isolation: Yes

Private Pre-Shared Key (PPSK): Yes

WiFi Speed Limiting: Yes

Client Device Isolation: Yes

WiFi Schedules: Yes

RADIUS over TLS (RadSec): Yes

Dynamic RADIUS-assigned VLAN: Yes

Hardware

Max. Power Consumption: 13W

Supported Voltage Range: 42.5—57V DC

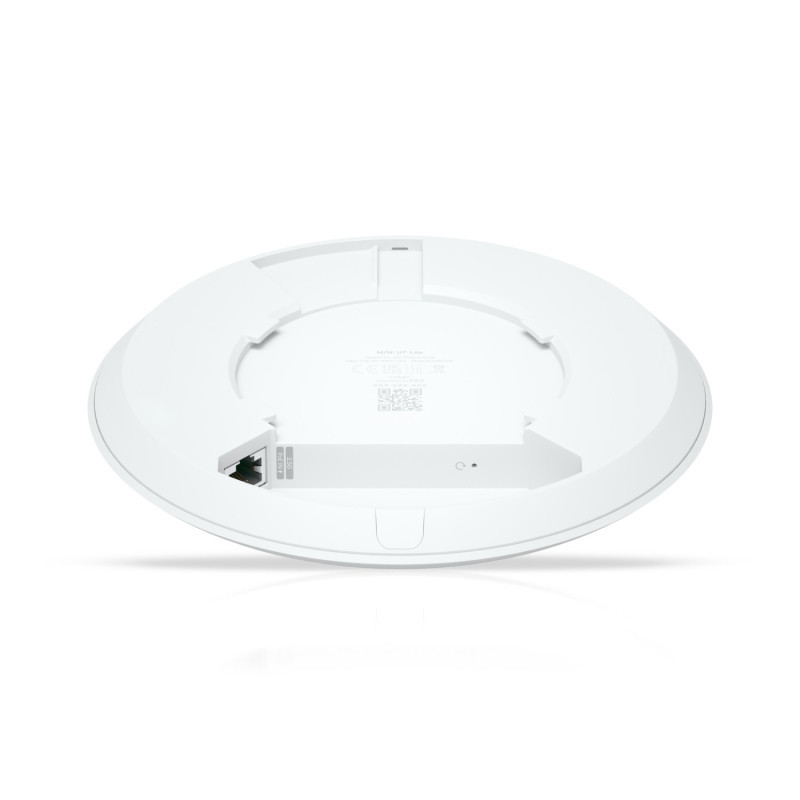

Networking Interface: (1) 2.5 GbE RJ45 port

Weight: 313 g (11 oz)

Management: Ethernet

Enclosure Material: UV-stabilized polycarbonate

Mount Material: UV-stabilized polycarbonate, galvanized steel (SGCC)

LEDs:

System: White/Blue

Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)

Certifications: CE, FCC, IC

Ambient Operating Temperature: -30 to 40° C (-22 to 104° F)

Ambient Operating Humidity: 5 to 95% noncondensing

Software

Application Requirements:

UniFi Network: Version 9.0.114 and later

UniFi OS: iOS™ version 10.20.2 and later Android™ version 10.21.7 and later
