UBIQUITI UniFi kryptinė dviejų dažnių antena, skirta UAP-AC-M

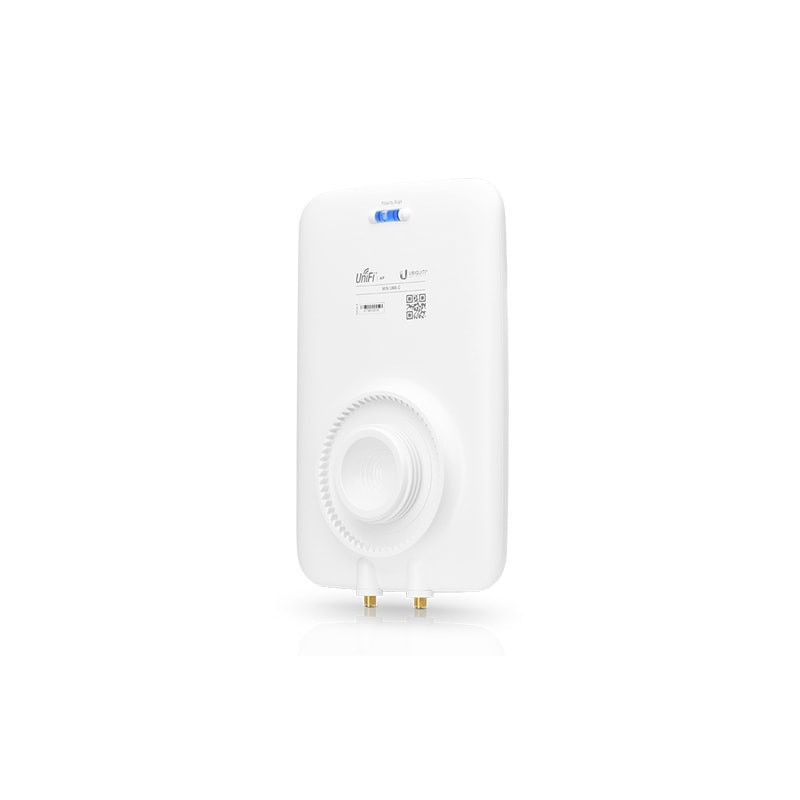

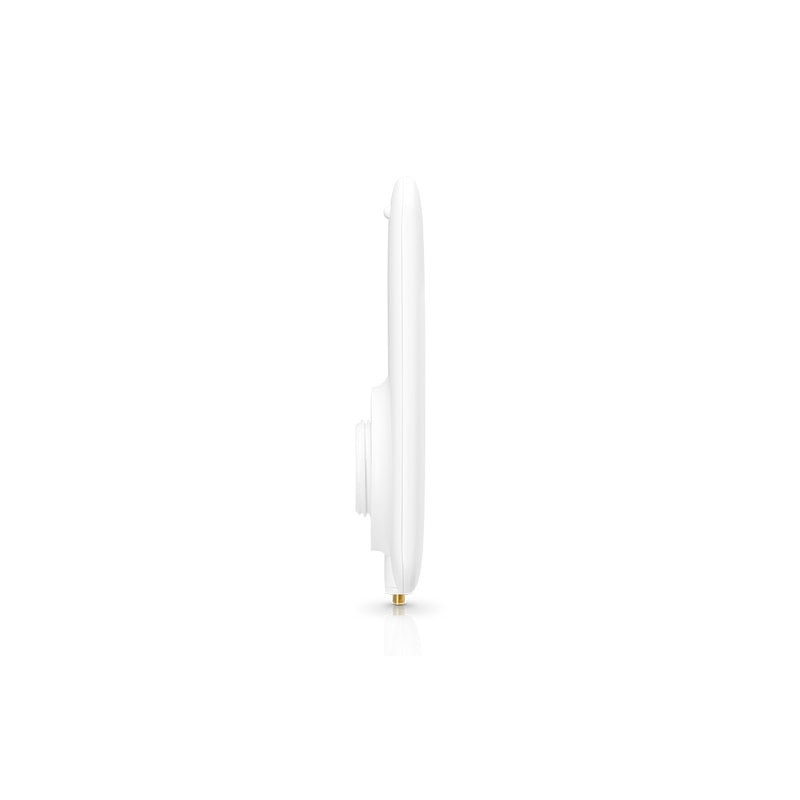

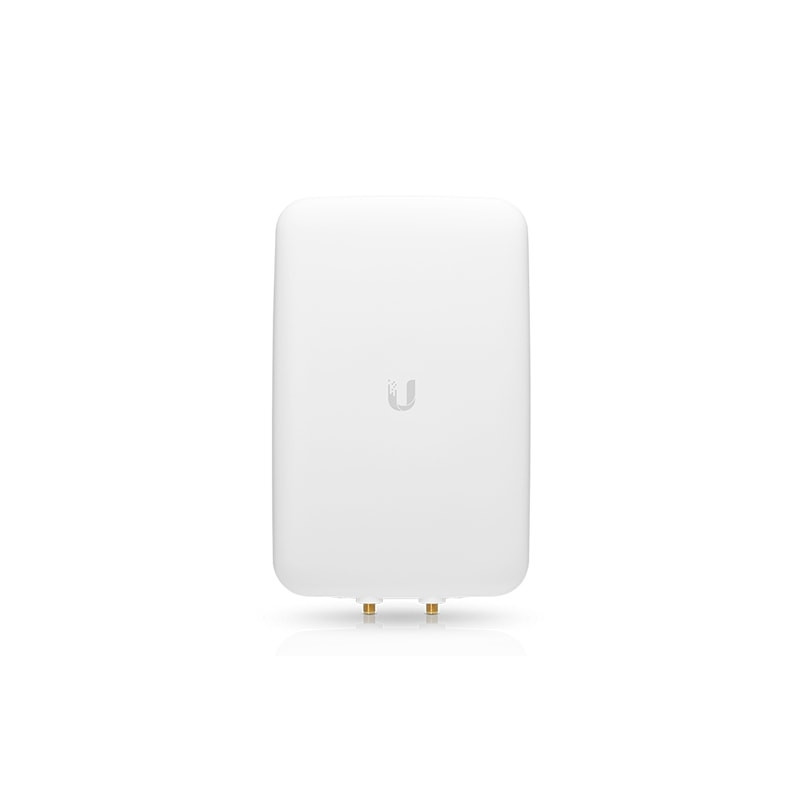

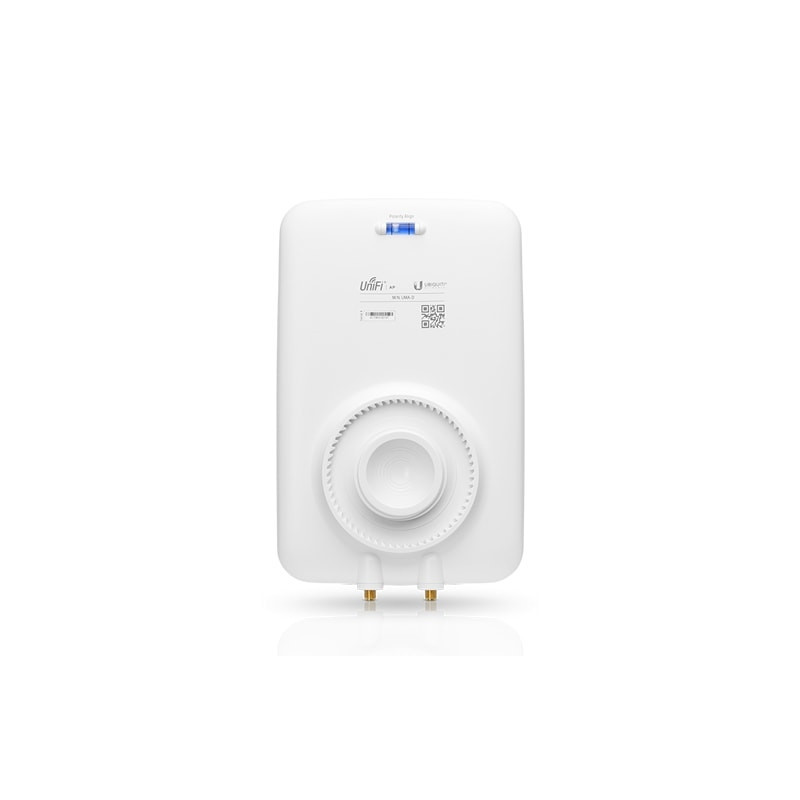

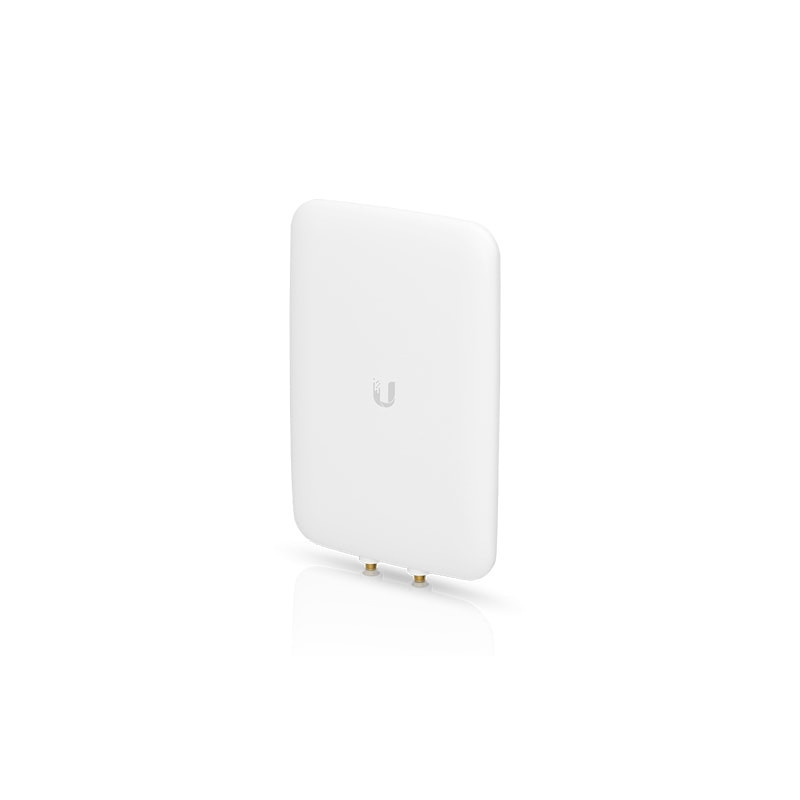

The UniFi Antenna, model UMA-D, is an optional mesh antenna designed to work with the UniFi® AC Mesh AP, model UAP-AC-M. With dual-band support, the UMA-D expands range coverage and provides customized pattern shaping. It is available in single- and five-packs.Antenna FeaturesOptimized for 802.11ac, the UMA-D offers a high efficiency directional radiation pattern with dual polarity.

Weather-ResistantEnclosure Encased in UV-stabilized plastic, the UMA-D can be used indoors or outdoors.

Versatile MountingThe UMA-D has a ball joint mount designed for precise aiming and can be mounted on a pole or wall.

CompatibilityThe UMA-D is a connectorized antenna that is compatible with the UAP-AC-M.

Dimensions: 201.3 x 128.0 x 32.5 mm (7.93 x 5.04 x 1.28')

Weight: with Mount - 480 g (16.93 oz), without Mount - 400 g (14.11 oz)

Enclosure: Outdoor UV Stabilized Plastic

RF Connections: (2) RP-SMA

Supported Frequency Range: 2.4 - 2.5 GHz, 5.1 - 5.9 GHz

HPOL Beamwidth: 2.4 GHz - 90°, 5 GHz - 45°

VPOL Beamwidth: 2.4 GHz - 90°, 5 GHz - 45°

Elevation Beamwidth: 2.4 GHz - 90°, 5 GHz - 45°

Maximum VSWR: 2:1

Polarization: Dual-Linear

Cross-Pol Isolation: 2.4 GHz - 25 dB, 5 GHz - 30 dB

Antenna Gain: 2.4 GHz - 10 dBi, 5 GHz - 15 dBi

Mounting: Wall/Pole (Kits Included)
