UBIQUITI „UniFi“ įmonės lygio „WiFi 7“ vidinis prieigos taškas E7

Ultra-Fast Wi-Fi 7

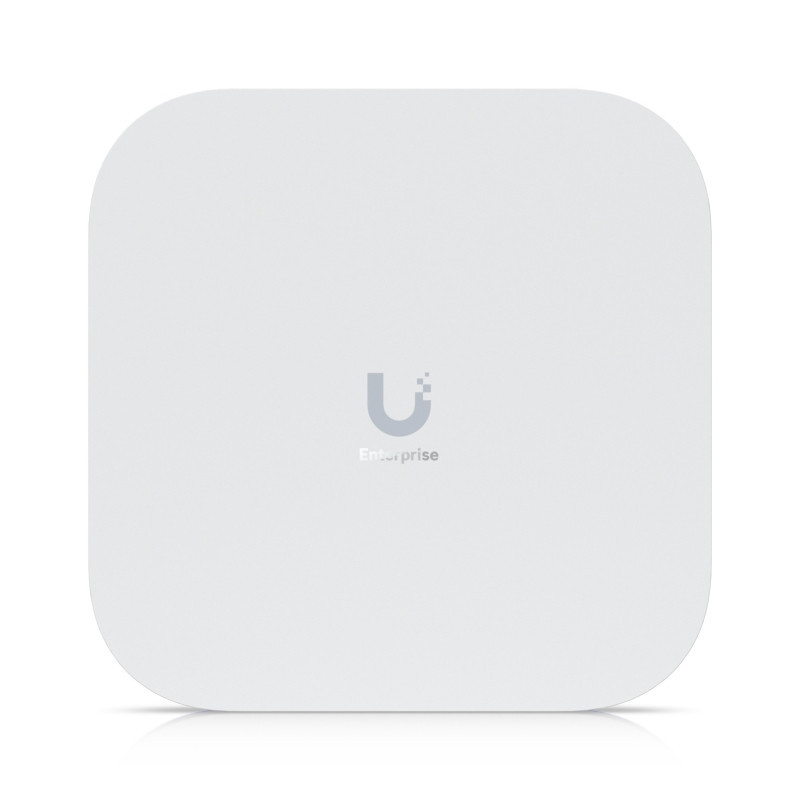

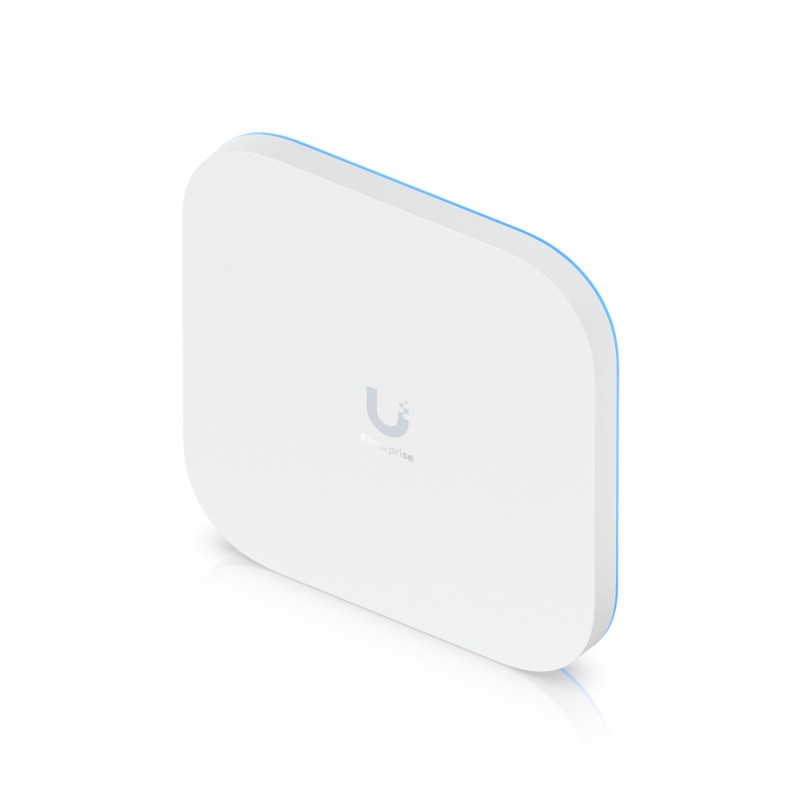

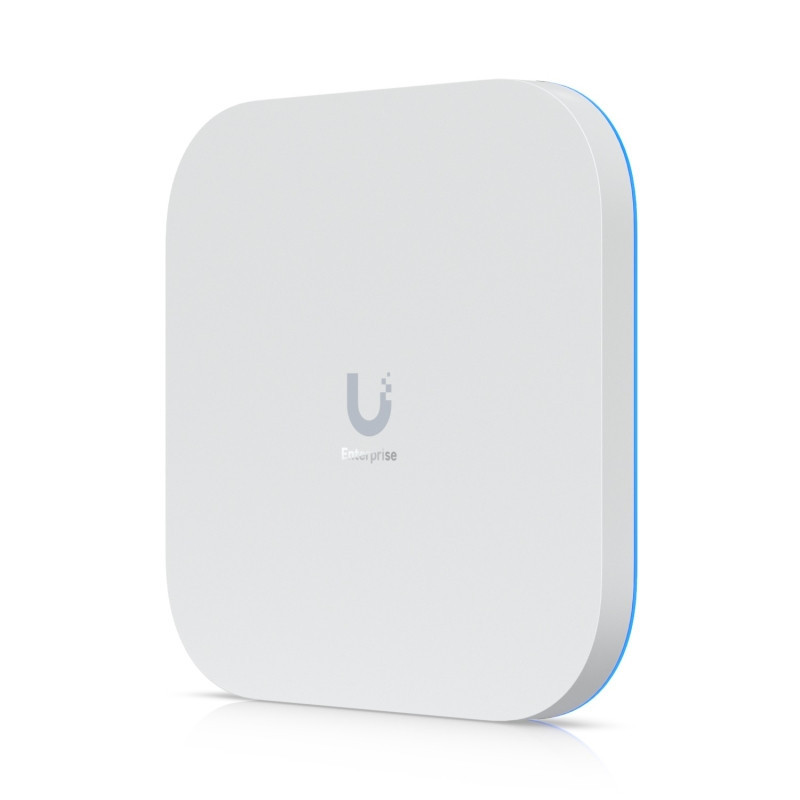

The Ubiquiti UniFi E7 is a next-generation indoor access point designed for ultra-high-performance wireless connectivity. Supporting the Wi-Fi 7 (802.11be) standard, it delivers outstanding speeds — up to 11.5 Gbps on the 6 GHz band, 8.6 Gbps on 5 GHz, and 688 Mbps on 2.4 GHz. With 4×4 MU-MIMO on both 5 GHz and 6 GHz radios and 2×2 MU-MIMO on 2.4 GHz, the device ensures superior throughput and reliability, even in dense environments. Covering up to 185 m² and supporting more than 1,000 simultaneous clients, it is ideal for offices, educational facilities, and enterprise networks. Advanced features such as OFDMA, band-steering, beamforming, and seamless roaming optimize efficiency and reduce latency. The E7's Wi-Fi 7 technology enables minimal interference, improved responsiveness, and future-ready connectivity for modern digital applications, ensuring exceptional stability for streaming, collaboration, and IoT integrations. Its full backward compatibility with Wi-Fi 6 and Wi-Fi 5 ensures smooth transition within existing infrastructures.

Fast & Reliable Links

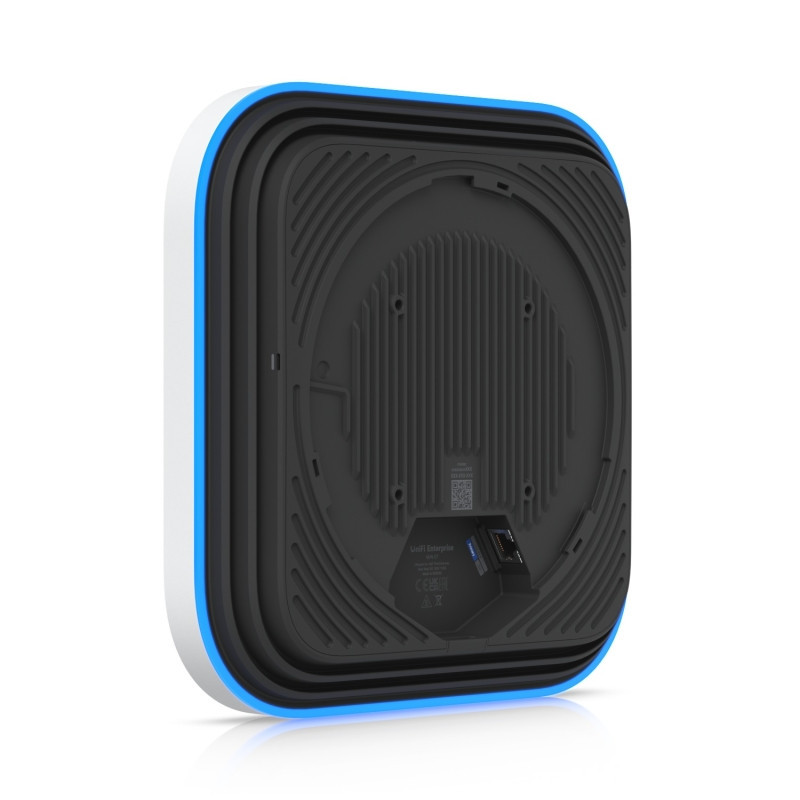

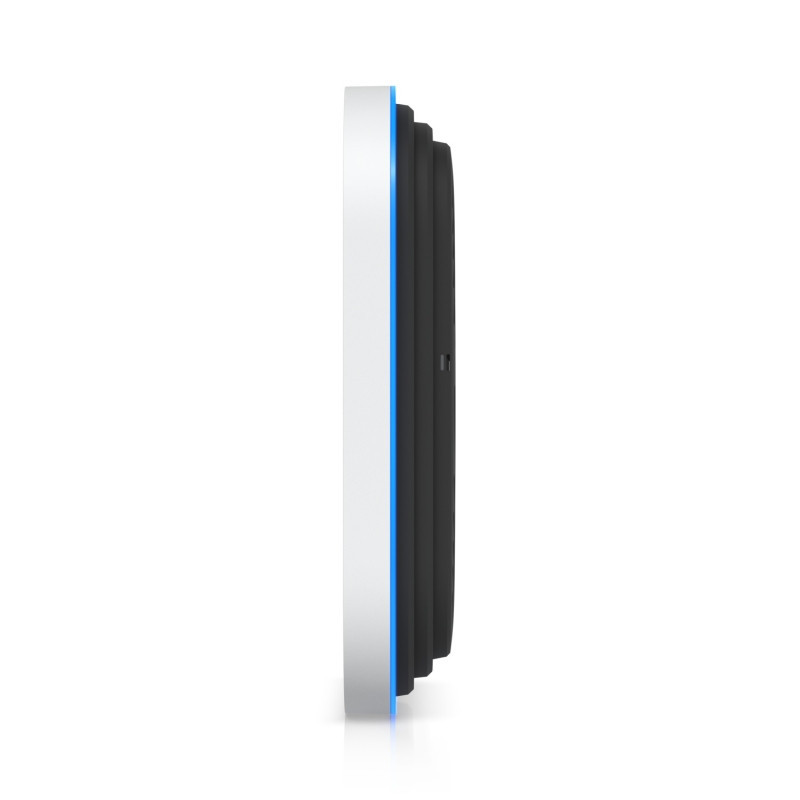

Equipped with one 10 GbE RJ45 port and one 1 GbE RJ45 port, the UniFi E7 provides high-capacity wired uplinks for fast data transfer and network redundancy. It is powered via PoE++ (802.3bt) with an input voltage range of 42.5 V-57 V DC, consuming up to 43 W at peak operation. This ensures consistent power delivery and efficient performance even in high-load scenarios. The device features a sleek and durable housing that measures 250 × 250 × 43.5 mm and weighs 1.8 kg. Its construction combines a UV-stabilized polycarbonate body with an aluminum alloy frame, ensuring long-term strength and reliability. The E7 includes wall and ceiling mounting options, providing flexible installation for a variety of professional environments. Its advanced thermal design minimizes heat buildup for optimal performance. The integrated LED ring indicates device status and simplifies troubleshooting, and the fanless construction ensures silent operation, making it ideal for offices, schools, and enterprise spaces that require reliable, noise-free hardware.

Centralized Management

The UniFi E7 combines advanced enterprise functionality with intuitive management through the UniFi Network application. Supporting up to 1,000 concurrent clients and 8 BSSIDs per radio, it allows administrators to segment networks efficiently for staff, guests, and IoT devices. The device includes per-user bandwidth limits, guest access control, VLAN support, and traffic isolation for secure multi-tenant deployments. Real-time spectral analysis, dynamic frequency selection, and PRISM™ RF filtering minimize interference and maintain consistent wireless performance across large installations. The E7 can operate standalone or as part of a cloud-managed UniFi ecosystem, enabling centralized monitoring, firmware updates, and streamlined network management. Integrated security protocols such as WPA3 Enterprise and HTTPS management protect against unauthorized access. Combined with intelligent load balancing and automatic channel optimization, the UniFi E7 ensures maximum uptime, robust performance, and simplified administration for modern enterprise networks.

Dimensions: 250 x 250 x 43.5 mm (9.8 x 9.8 x 1.7")

WiFi Standard: WiFi 7

Spatial Streams: 10

Coverage Area: 185 m² (2,000 ft²)

Max. Client Count: 1000+

Uplink: 10 GbE 1 GbE

Mounting: Ceiling, Wall, VESA (Pro Mount Included)

Power Method: PoE++

Performance

MIMO:

6 GHz: 4 x 4 (DL/UL MU-MIMO)

5 GHz: 4 x 4 (DL/UL MU-MIMO)

2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

Max. Data Rate:

6 GHz: 11.5 Gbps (BW320)

5 GHz: 8.6 Gbps (BW240)

2.4 GHz: 688 Mbps (BW40)

Antenna Gain:

6 GHz: 6 dBi

5 GHz: 6 dBi

2.4 GHz: 5 dBi

Max. TX Power:

6 GHz: 24 dBm / 30 dBm

5 GHz: 30 dBm

2.4 GHz: 23 dBm

Max. BSSIDs: 8 per Radio

Supported Data Rates:

802.11be (WiFi 7): 7.3 Mbps to 11.4 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320)

802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11n: 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

Features

Wireless Meshing: ✓

Band Steering: ✓

802.11v BSS Transition Management: ✓

802.11r Fast Roaming: ✓

802.11k Radio Resource Management (RRM): ✓

Zero-Wait DFS: ✓

Advanced Radio Management: ✓

Real-Time Spectral Analysis: ✓

Passpoint (Hotspot 2.0): ✓

Captive Hotspot Portal:

Custom Branding Landing Page: ✓

Voucher Authentication: ✓

Payment-Based Authentication: ✓

External Portal Server Support: ✓

Password Authentication: ✓

Guest Network Isolation: ✓

Private Pre-Shared Key (PPSK): ✓

WiFi Speed Limiting: ✓

Client Device Isolation: ✓

WiFi Schedules: ✓

RADIUS over TLS (RadSec): ✓

Dynamic RADIUS-assigned VLAN: ✓

Hardware

Max. Power Consumption: 43W

Supported Voltage Range: 42.5-57V DC

Networking Interface: (1) 10 GbE RJ45 port (1) 1 GbE RJ45 port

Weight: 1.8 kg (4 lb)

Management: Ethernet

Enclosure Material: UV-stabilized polycarbonate, aluminum alloy

Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)

LEDs:

System: R/G/B

Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)

Operating Frequency:

US/CA:

2400 - 2472 MHz

U-NII-1: 5150 - 5250 MHz

U-NII-2A: 5250 - 5350 MHz

U-NII-2C: 5470 - 5725 MHz

U-NII-3: 5725 - 5850 MHz

U-NII-5 to

U-NII-8: 5925 - 7125 MHz

Worldwide:

2400 - 2483.5 MHz

5150 - 5850 MHz

5925 - 7125 MHz

Ambient Operating Temperature: -30 to 50° C (-22 to 122° F)

Ambient Operating Humidity: 5 to 95% noncondensing

NDAA Compliant: ✓

Certifications: CE, FCC, IC, Anatel: 06372-24-08356

Software

Application Requirements:

UniFi Network: Version 9.2.87 and later

Mobile App:

iOS™ version 10.24.1 and later

Android™ version 10.25.2 and later
