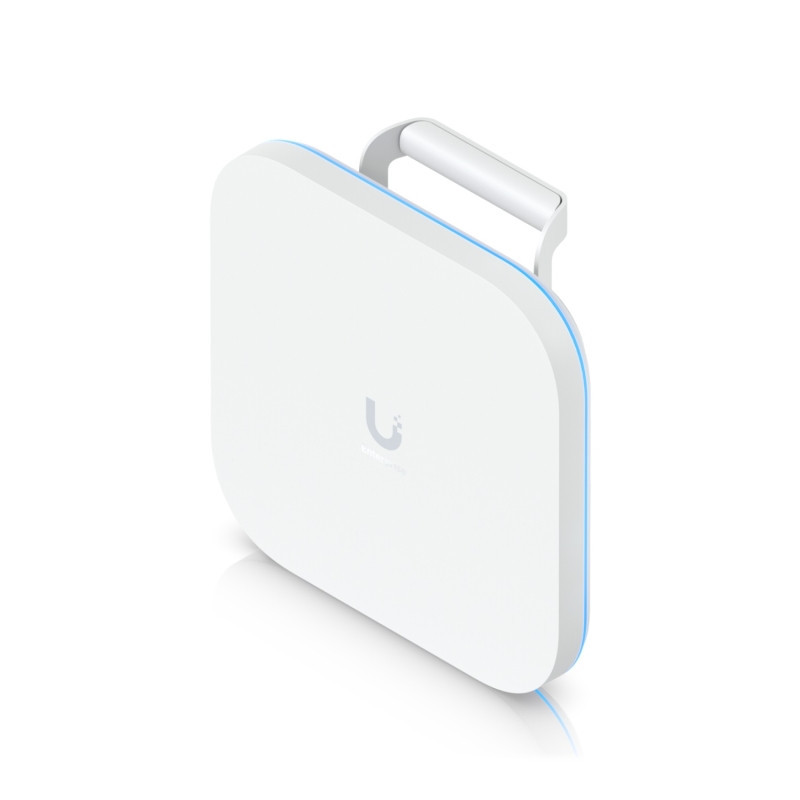

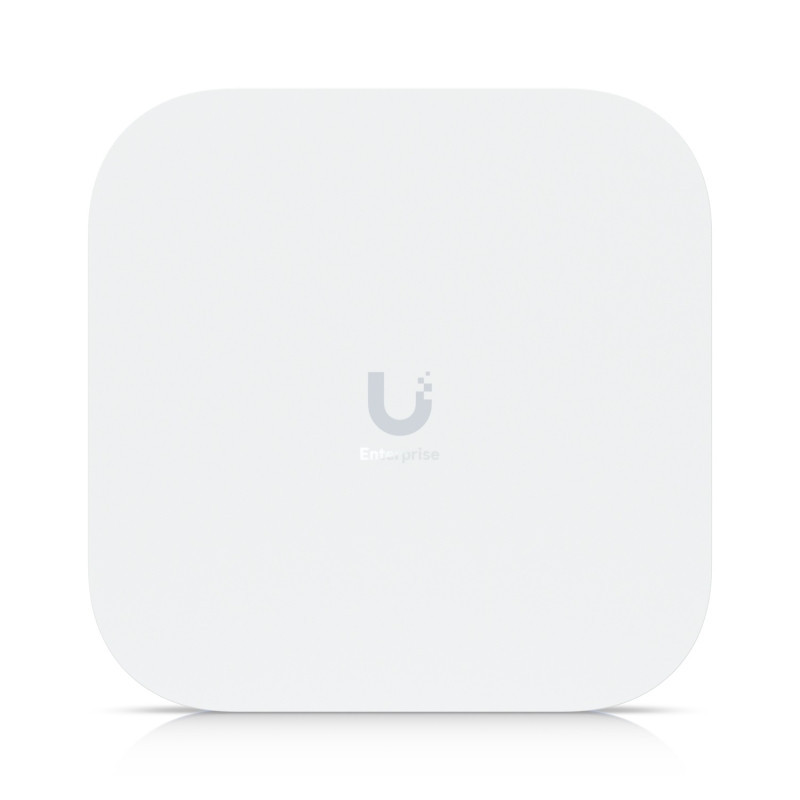

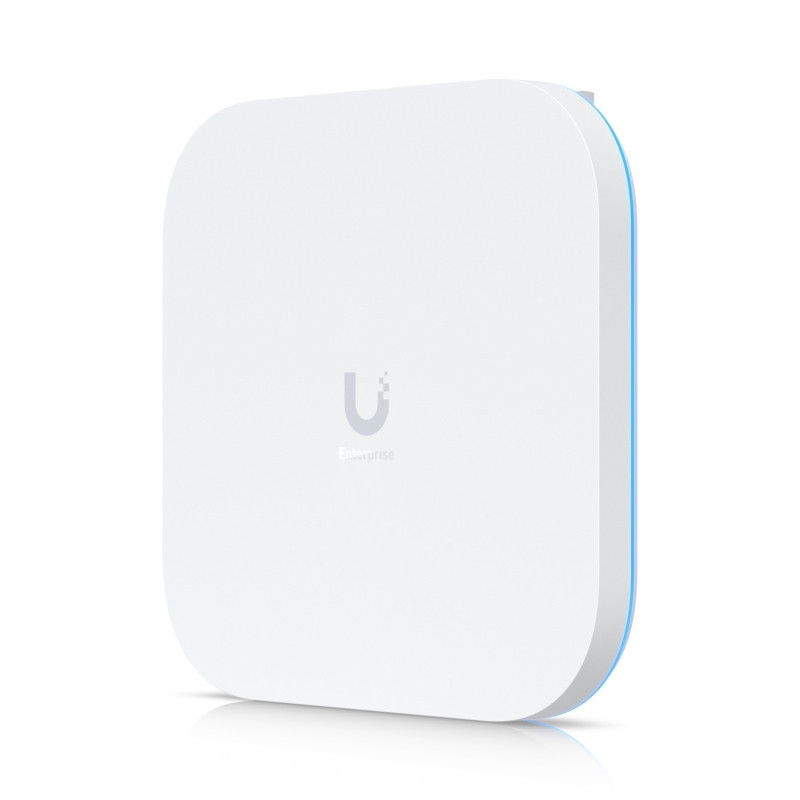

UBIQUITI „UniFi“ įmonės lygio prieigos taškas, skirtas naudoti patalpose / lauke E7 „Campus“

Enterprise-grade indoor/outdoor access point with 10-stream dual-band WiFi 7 performance, PRISM™ active RF filtering technology, integrated directional antennas, a 10 GbE uplink, and a redundant GbE port for high availability.

Dimensions:

Device: 250 x 250 x 45.5 mm (9.8 x 9.8 x 1.8")

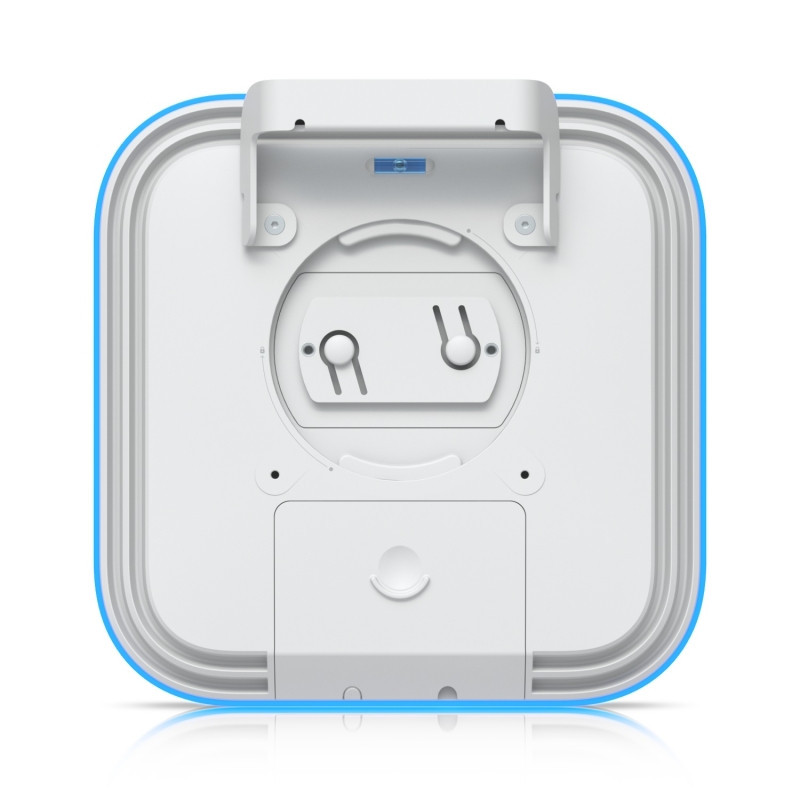

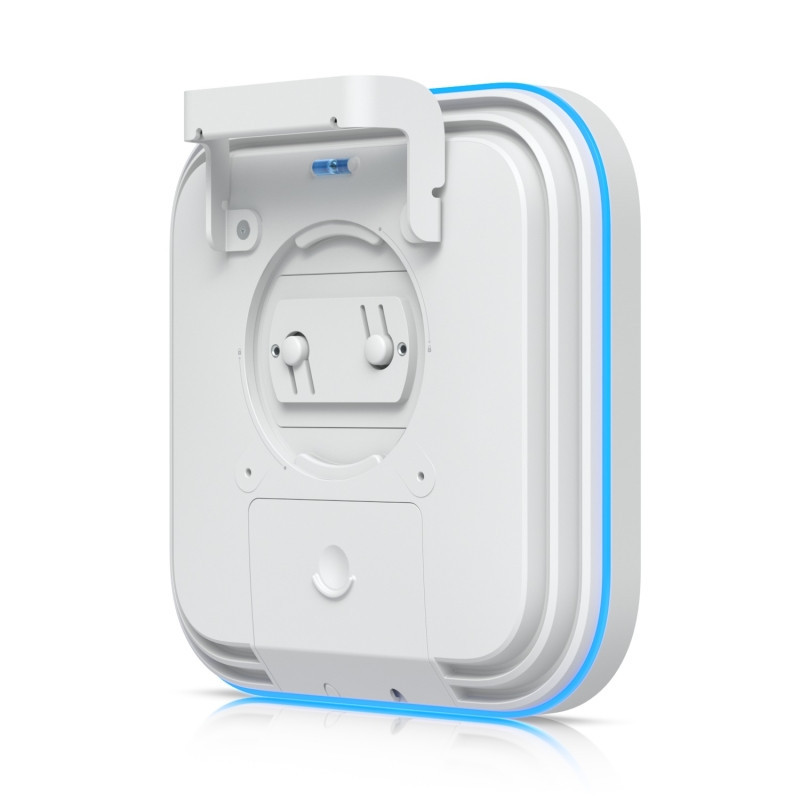

Articulating mount: 104 x 149.4 ( 4.1 x 5.9")

WiFi Standard: WiFi 7

Spatial Streams: 10

Coverage Area: 465 m² (5,000 ft²)

Max. Client Count: 1000+

Uplink: 10 GbE 1 GbE

Mounting: Wall, Pole (Mounts Included) VESA (Optional)

Weatherproofing: IPX6 IP67 with Waterproof Door Kit (Included)

Power Method: PoE++

Performance

MIMO:

5 GHz:

Low Band: 4 x 4 (DL/UL MU-MIMO)

High Band: 4 x 4 (DL/UL MU-MIMO)

2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

Max. Data Rate:

5 GHz: Low / High band: 8.6 Gbps (BW240)

2.4 GHz: 688 Mbps (BW40)

Antenna Gain:

5 GHz: Directional internal: 12 dBi, 100° x 55°

2.4 GHz: Directional internal: 9 dBi, 90° x 80°

Max. TX Power:

5 GHz: Low / High band: 30 dBm

2.4 GHz: 23 dBm

Max. BSSIDs: 8 per Radio

Supported Data Rates:

802.11be (WiFi 7): 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)

802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11n: 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

Features

Wireless Meshing: ✓

Band Steering: ✓

802.11v BSS Transition Management: ✓

802.11r Fast Roaming: ✓

802.11k Radio Resource Management (RRM): ✓

Zero-Wait DFS: ✓

Advanced Radio Management: ✓

Real-Time Spectral Analysis: ✓

Passpoint (Hotspot 2.0): ✓

Captive Hotspot Portal:

Custom Branding Landing Page: ✓

Voucher Authentication: ✓

Payment-Based Authentication: ✓

External Portal Server Support: ✓

Password Authentication: ✓

Guest Network Isolation: ✓

Private Pre-Shared Key (PPSK): ✓

WiFi Speed Limiting: ✓

Client Device Isolation: ✓

WiFi Schedules: ✓

RADIUS over TLS (RadSec): ✓

Dynamic RADIUS-assigned VLAN: ✓

Hardware

Max. Power Consumption: 44W

Supported Voltage Range: 42.5-57V DC

Networking Interface:

(1) 10 GbE RJ45 port

(1) GbE RJ45 port

PRISM™ RF Filtering: ✓

Weight:

Device: 2.2 kg (4.9 lb)

With articulating mount: 3.1 kg (6.8 lb)

Wind Loading: 164.75 N at 200 km/h (37 lbf at 125 mph)

Pole Mount Diameter: 1-2.5" (25-63.5 mm)

Antennas: (1) Internal with directional patterns

Antenna beamwidth:

5 GHz: 100° x 55°

2.4 GHz: 90° x 80°

Management: Ethernet

Enclosure Material: UV-stabilized polycarbonate, aluminum alloy

Mount Material: Stainless steel, aluminum alloy

LEDs:

System: R/G/B

Operating Frequency:

2400 - 2483.5 MHz

5150 - 5850 MHz

Ambient Operating Temperature: -30 to 60° C (-22 to 140° F)

Ambient Operating Humidity: 5 to 95% noncondensing

NDAA Compliant: ✓

Certifications: CE, Anatel: 02724-25-08356

Software

Application Requirements:

UniFi Network: Version 9.0.114 and later

Mobile App: iOS™ version 10.20.0 and later Android™ version 10.21.3 and later
