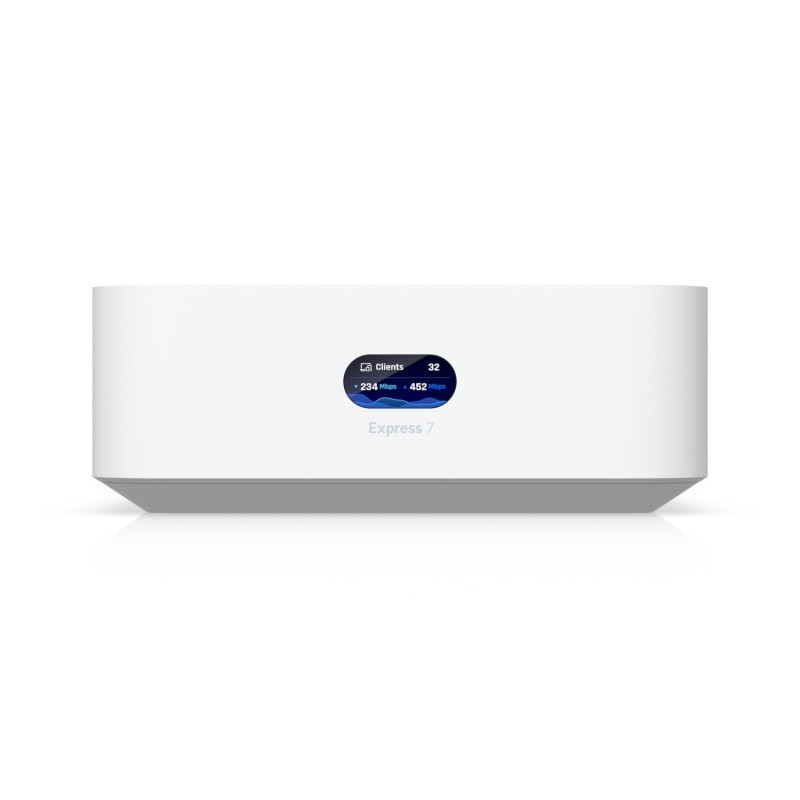

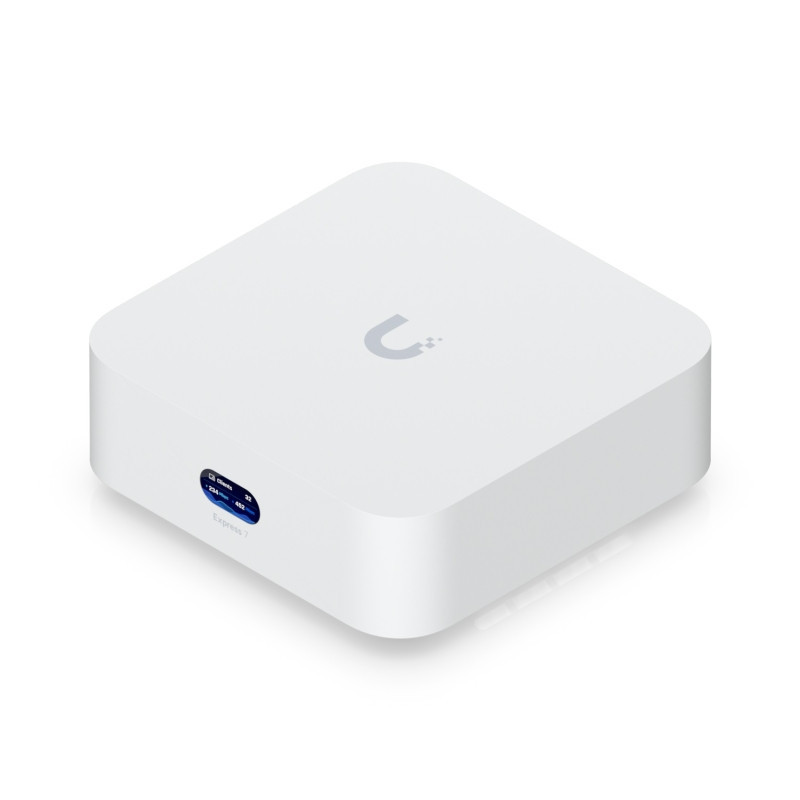

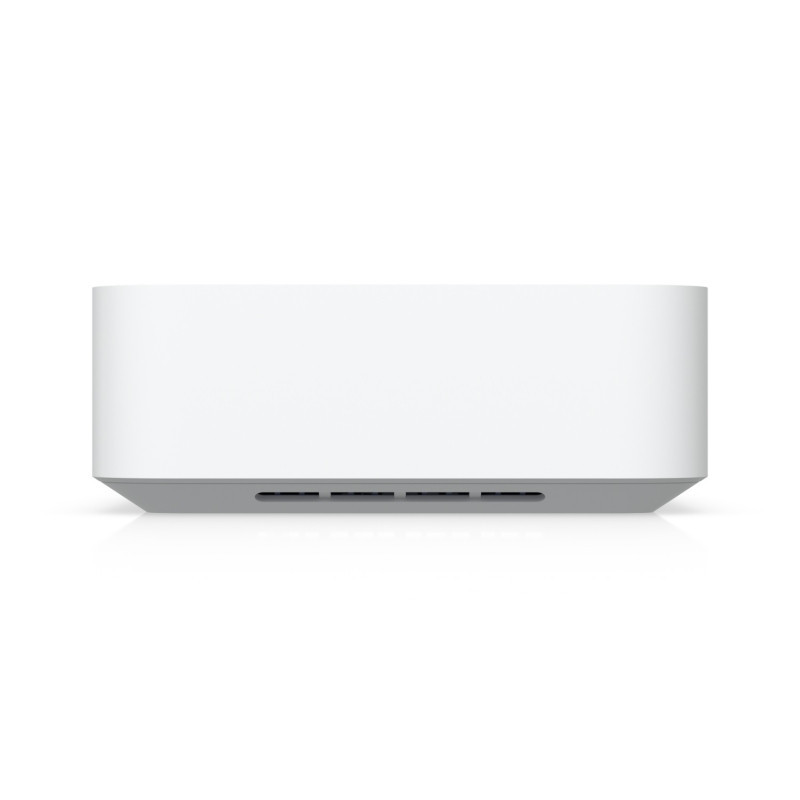

Ubiquiti UniFi Express 7

Advanced Networking FeaturesThe Ubiquiti UniFi Express 7 (UX7) is a high-performance, compact networking device designed for both home and small business environments. With integrated 6-stream WiFi 7, including support for the 6 GHz band, the UX7 delivers ultra-fast, low-latency wireless connectivity with a total coverage area of up to 140 m² (1,500 ft²). This makes it an ideal choice for users who demand next-generation wireless performance. The UX7 is equipped with a high-speed 10 GbE RJ45 WAN port and a 2.5 GbE RJ45 LAN port, allowing for lightning-fast wired connections.

Powered by a quad-core ARM Cortex-A53 processor running at 1.5 GHz and equipped with 3 GB of system memory, the UX7 ensures seamless networking operations while efficiently managing up to 30+ UniFi devices and 300+ client connections. Its compact form factor (117 x 117 x 42.5 mm) and lightweight design (422 g) make it easy to integrate into any setup. The device supports VLAN and subnet-based traffic segmentation, advanced QoS, dynamic routing with OSPF, and an integrated RADIUS server for granular network control. Whether you're running a small office or a smart home, the UX7 delivers robust security and performance.

User-Friendly ManagementManaging the UX7 is straightforward with the UniFi Network application, offering an intuitive interface for monitoring and configuring network settings. The device includes a 0.96' status display for real-time information and supports Bluetooth for easy setup. Security features such as content filtering, ad blocking, and guest traffic isolation ensure a safe browsing experience for all users. The UX7's compact desktop form factor and polycarbonate enclosure make it a practical choice for modern networking needs.

The UX7 offers flexibility in deployment, functioning as a standalone router, a wired UniFi access point, or a wireless mesh node to extend network coverage seamlessly. It supports license-free SD-WAN, site-to-site VPN with IPsec and OpenVPN, and zero-configuration VPN with Teleport, ensuring secure and efficient remote connectivity. The device also features advanced NAT configurations, policy-based WAN and VPN routing, and full IPv6 support, making it adaptable to various networking scenarios. Additionally, its robust security protocols, traffic management capabilities, and seamless UniFi ecosystem integration make it a versatile choice for both home and enterprise environments, providing reliable, high-performance networking with simplified management.

Dimensions: 117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67'')

UniFi Application Suite:

Network: Yes

Managed UniFi Devices: 30

Simultaneous Users Connected: 300

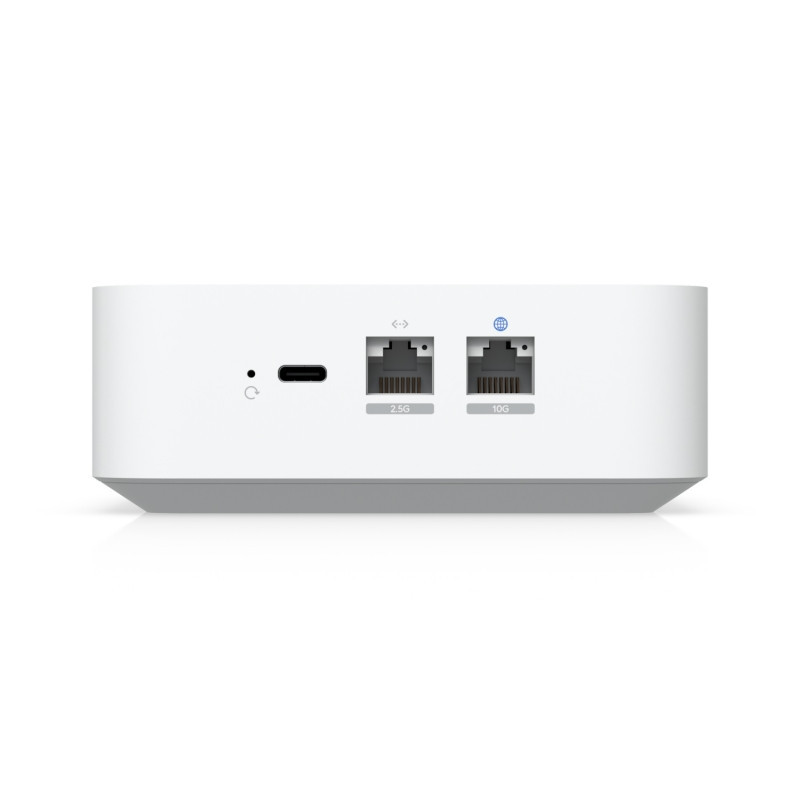

Default WAN Ports: (1) 10 GbE RJ45

LAN Ports: (1) 2.5 GbE RJ45

IDS/IPS Throughput: 2.3 Gbps

Form Factor: Compact desktop

Coverage Area: 160 m² (1,750 ft²)

Security

Stateful Firewall: Yes

Application-Aware Layer 7 Firewall: Yes

DPI Traffic Identification: Yes

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps): Yes

Content Filtering: Yes

Intrusion Prevention (IPS/IDS): Yes

Ad Blocking: Yes

IDS/IPS Signatures: 20,000+ with CyberSecure

VLAN/Subnet-based Traffic Segmentation: Yes

VPN SD-WAN

License-Free SD-WAN: Yes

Site-to-Site VPN:

Site Magic: Yes

IPsec: Yes

OpenVPN: Yes

VPN Server:

Identity Endpoint One-Click VPN: Yes

Teleport Zero-Configuration VPN: Yes

WireGuard: Yes

OpenVPN: Yes

L2TP: Yes

VPN Client:

OpenVPN: Yes

WireGuard: Yes

Networking

Dynamic Routing:

OSPF: Yes

Advanced QoS: Yes

Multicast DNS (mDNS): Yes

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT): Yes

Integrated RADIUS Server: Yes

RADIUS over TLS (RadSec): Yes

Additional Internet Failover with UniFi LTE Backup: Yes

Internet Quality and Outage Reporting: Yes

Policy-based WAN and VPN Routing: Yes

Customizable DHCP Server: Yes

IPv6 ISP Support: Yes

IGMP Proxy: Yes

Integrated WiFi

WiFi Standard: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

Throughput:

6 GHz: 5.7 Gbps

5 GHz: 4.3 Gbps

2.4 GHz: 688 Mbps

MIMO:

6 GHz: 2 x 2 (DL/UL MU-MIMO)

5 GHz: 2 x 2 (DL/UL MU-MIMO)

2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

Antenna Gain:

6 GHz: 6 dBi

5 GHz: 7 dBi

2.4 GHz: 4 dBi

Max. TX Power:

6 GHz: 24 dBm

5 GHz: 26 dBm

2.4 GHz: 23 dBm

Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

Max. BSSIDs: 4 per Radio (Gateway Mode) 4 per Radio (AP Mode)

Supported Data Rates:

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Hardware

Max. Power Consumption: 22W

Power Method: USB type C (5V DC/5A)

Power Supply: USB type C (5V DC/5A) (Adapter included)

Supported Voltage Range: 100—240V AC

Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz

System Memory: 3 GB

Weight: 422 g (14.9 oz)

Enclosure Material: Polycarbonate

LCM Display: 0.96' status display

Management: Ethernet Bluetooth

LEDs:

Ethernet: Yes

Button: (1) Factory-reset

ESD/EMP Protection: Air: ± 8kV, contact: ± 4kV

Ambient Operating Temperature: -10 to 40° C (14 to 104° F)

Ambient Operating Humidity: 5 to 95% noncondensing

Certifications: CE, FCC, IC

NDAA Compliant: Yes

Software

VLAN: 802.1Q

Guest Traffic Isolation: Yes

Application Requirements:

UniFi Network: Version 9.0.108 and later
