UBIQUITI UniFi Cloud Gateway Max

Powerful Network ManagementThe Ubiquiti Cloud Gateway Max (UCG-Max) is a high-performance network gateway designed to streamline and optimize your network infrastructure. This compact and versatile device offers a robust set of features to manage and secure your network environment, catering to the needs of small to medium-sized businesses and enterprises. Equipped with a powerful processor and ample memory, the UCG-Max delivers exceptional performance and responsiveness. It supports up to 30 UniFi devices and over 300 clients, ensuring smooth network operation even under heavy load. The gateway also features advanced firewall capabilities and intrusion detection/prevention (IDS/IPS) to safeguard your network from cyber threats.

Seamless Integration and Centralized ManagementThe UCG-Max seamlessly integrates with the UniFi Network application, providing centralized management for all your UniFi devices. This unified platform allows you to monitor network performance, configure settings, and troubleshoot issues with ease. The UCG-Max also supports a wide range of networking protocols and standards, ensuring compatibility with existing network infrastructure. With its built-in storage, the UCG-Max offers flexible options for data retention and backup. The included 512GB NVMe SSD provides ample space for storing network logs, configuration files, and other critical data. Additionally, the gateway supports NVR functionality, allowing you to record and store video footage from compatible UniFi cameras, providing a comprehensive security solution.

Enhanced Security and PerformanceThe UCG-Max prioritizes network security with advanced features like firewall rules, intrusion detection, and VPN support. The gateway's ability to identify and block malicious traffic helps protect your network from cyber threats. Furthermore, the UCG-Max offers application-aware firewall rules, allowing you to control network access based on specific applications and users. The UCG-Max delivers exceptional performance with its high-speed networking capabilities. With four 1/2.5 Gigabit Ethernet ports, the gateway supports various network topologies and devices. Additionally, the UCG-Max features multi-WAN load balancing to ensure uninterrupted network access by distributing traffic across multiple internet connections.

Dimensions: 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2')

UniFi Application Suite:

Network: Yes

Protect: Yes

Access: Yes

Talk: Yes

Connect: Yes

Managed UniFi Devices: 30+

Managed Cameras:

(15) HD

(8) 2K

(5) 4K

Simultaneous Users Connected: 300+

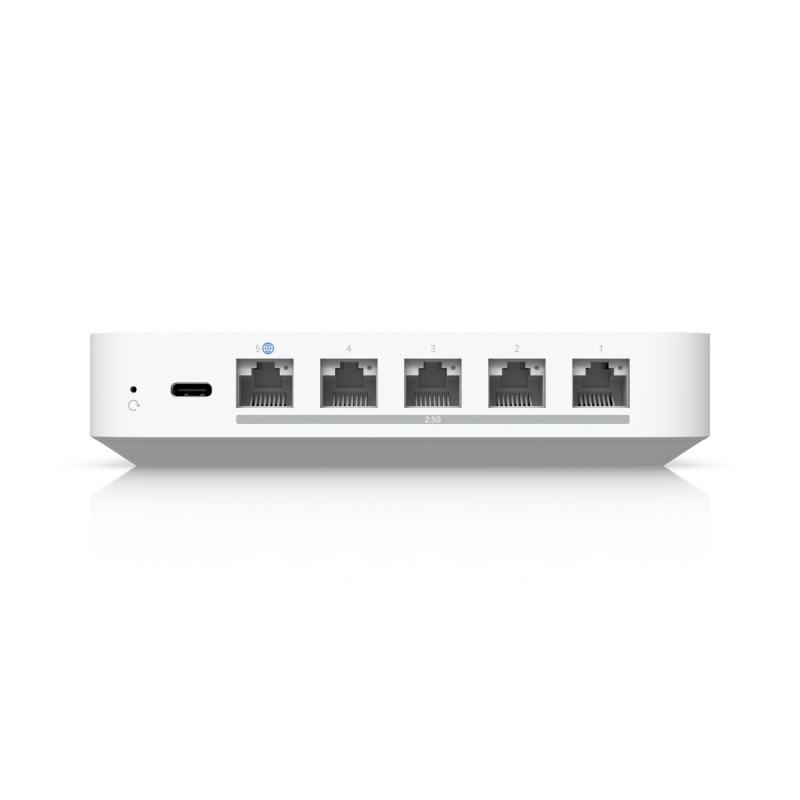

Default WAN Ports: (1) 2.5 GbE RJ45

LAN Ports: (4) 2.5 GbE RJ45

IDS/IPS Throughput: 2.3 Gbps

Form Factor: Compact desktop

Security

Stateful Firewall: Yes

Application-Aware Layer 7 Firewall: Yes

DPI Traffic Identification: Yes

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps): Yes

Content Filtering: Yes

Intrusion Prevention (IPS/IDS): Yes

Ad Blocking: Yes

IDS/IPS Signatures: 55,000+ with CyberSecure

VLAN/Subnet-based Traffic Segmentation: Yes

VPN SD-WAN

License-Free SD-WAN: Yes

Site-to-Site VPN:

Site Magic: Yes

IPsec: Yes

OpenVPN: Yes

VPN Server:

Identity Endpoint One-Click VPN: Yes

Teleport Zero-Configuration VPN: Yes

WireGuard: Yes

OpenVPN: Yes

L2TP: Yes

VPN Client:

OpenVPN: Yes

WireGuard: Yes

Networking

Multi-WAN Load Balancing: Yes

Dynamic Routing:

OSPF: Yes

Advanced QoS: Yes

Multicast DNS (mDNS): Yes

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT): Yes

Integrated RADIUS Server: Yes

RADIUS over TLS (RadSec): Yes

Additional Internet Failover with UniFi LTE Backup: Yes

Internet Quality and Outage Reporting: Yes

MAC Address Table Size: 2,000

Policy-based WAN and VPN Routing: Yes

Customizable DHCP Server: Yes

IPv6 ISP Support: Yes

IGMP Proxy: Yes

Hardware

NVR Storage: Selectable NVMe SSD up to 2 TB

Max. Power Consumption: 16.1W

Power Method: USB type C (5V DC/5A)

Power Supply: USB type C (5V DC/5A) (Adapter included)

Supported Voltage Range: 100—240V AC

System Memory: 3 GB

Weight: Without SSD: 460 g (1 lb) With SSD: 519 g (1.1 lb)

Enclosure Material: Polycarbonate

LCM Display: 0.96' status display

Management: Ethernet Bluetooth

LEDs:

Ethernet: Yes

Button: (1) Factory-reset

ESD/EMP Protection: Air: ± 8kV, contact: ± 4kV

Ambient Operating Temperature: -10 to 40° C (14 to 104° F)

Ambient Operating Humidity: 5 to 95% noncondensing

Certifications: CE, FCC, IC

NDAA Compliant: Yes

Software

Application Requirements:

Mobile App: UniFi iOS™ and Android™: Version 10.17.2 and later
