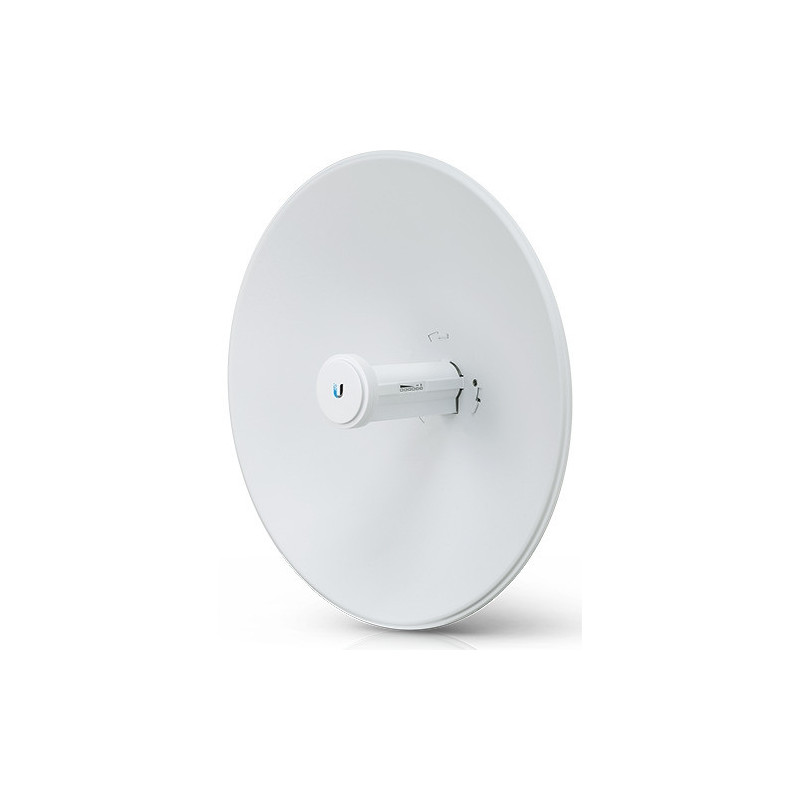

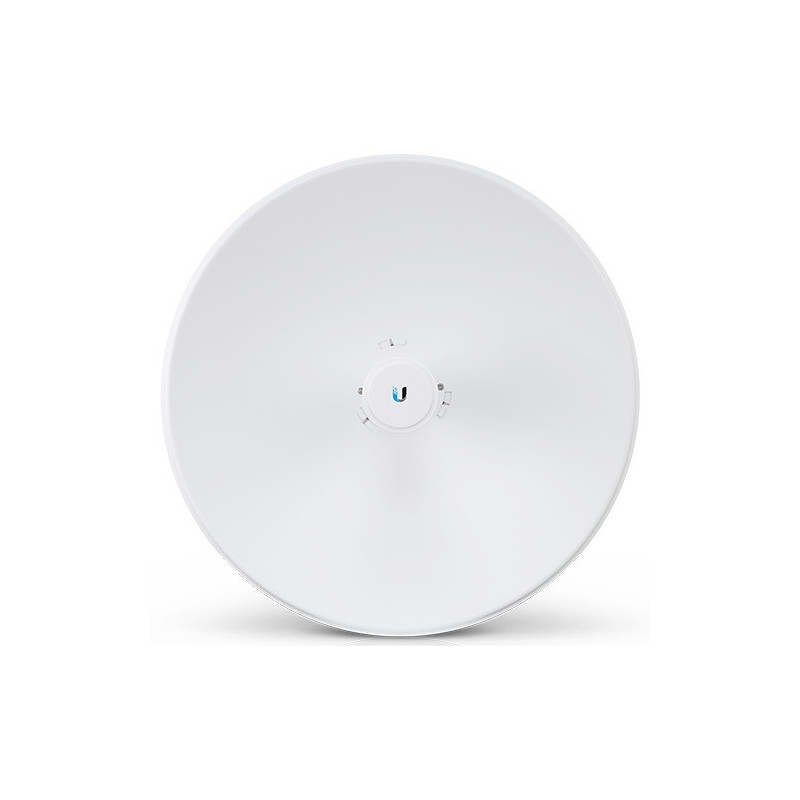

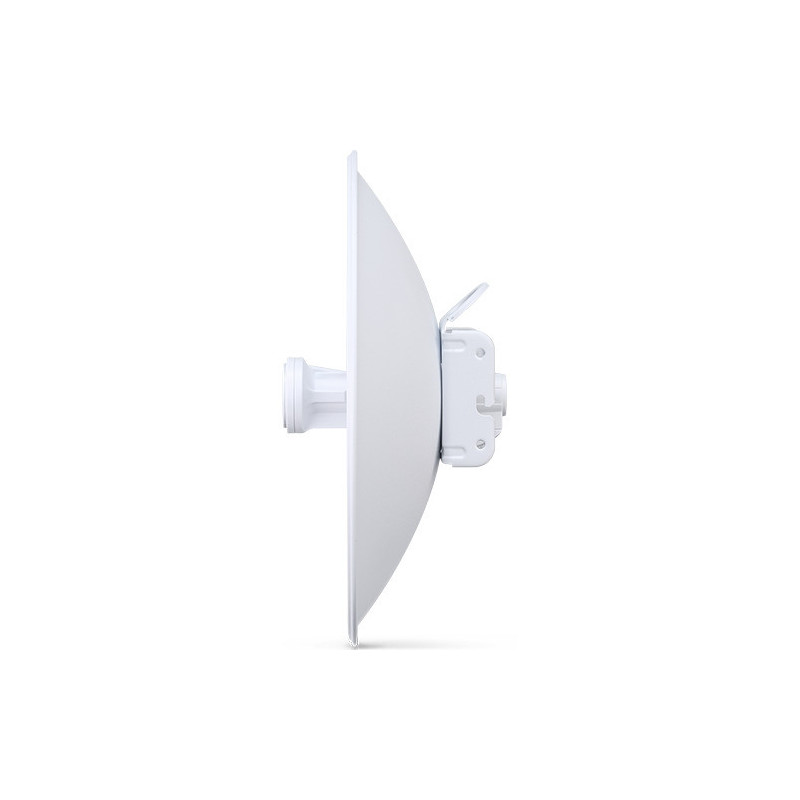

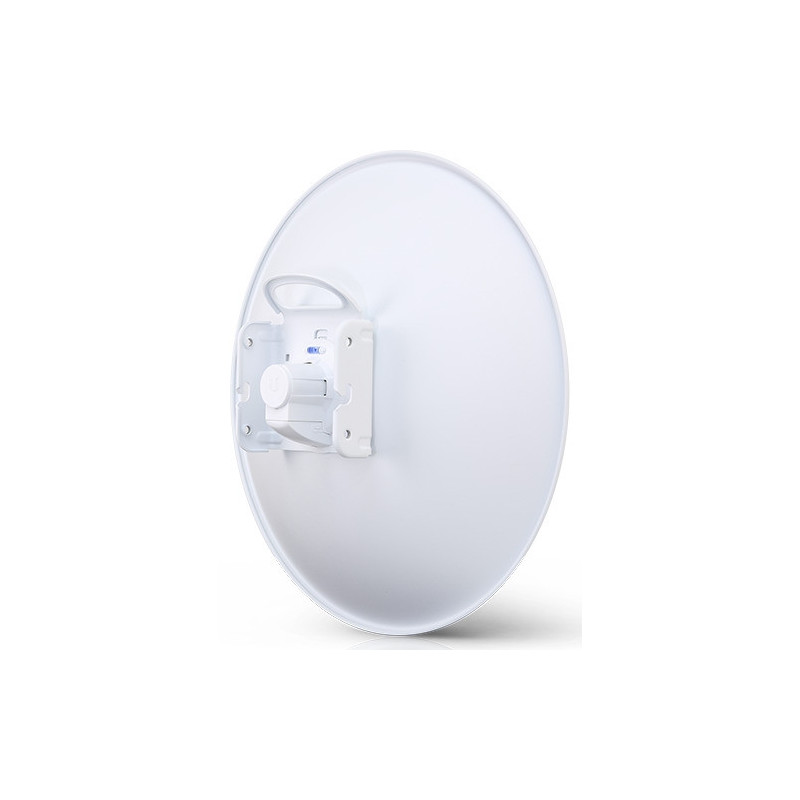

Ubiquiti PowerBeam AC 25dBi airMAX GEN2 (5 pakuotės)

- Highly Efficient Antenna Beam Performance

- Custom Ubiquiti airMAX ac Processor

- Dedicated Wi-Fi Radio for Management

- up to 450+ Mbps Throughput

- Proprietary InnerFeed Technology

- Innovative Snap and Lock Assembly

- Powered with Gigabit PoE

Operating Frequency: 2412 - 2472 MHz; 5150 - 5875 MHz

Max. Power Consumption: 8.5W

Power Supply: 24V, 0.5A Gigabit PoE Adapter

Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)

Supported Voltage Range: 20 to 26VDC

Gain: 25 dBi

Networking Interface (1): 10/100/1000 Ethernet Port

Processor Specs: MIPS 74 Kc

Memory: 64 MB DDR2

LEDs: Power, Ethernet, (4) Signal Strength

Channel Sizes:

PtP Mode: 10/20/30/40/50/60/80 MHz

PtMP Mode: 10/20/30/40 MHz

Enclosure Characteristics:

Antenna Feed: Outdoor UV Stabilized Plastic

Dish Reflector: Powder-Coated SPCC

Mounting: Pole-Mounting Kit (Included)

Wind Loading: 380 N @ 200 km/h (85.4 lbf @ 125 mph)

Wind Survivability: 200 km/h (125 mph)

ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV

Operating Temperature: -40 to 70° C (-40 to 158° F)

Operating Humidity: 5 to 95% Noncondensing

RoHS Compliance: Yes

Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5

Vibration Test: IEC 68-2-6

Temperature Shock Test: IEC 68-2-14

UV Test: IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4

Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5

Certifications: FCC, IC, CE

Dimensions (single): 420 x 420 x 230 mm (16.54 x 16.54 x 9.06')

Weight (single): 2.22 kg (4.89 lbs)

Package Contents:

Antenna Feed - 5 units

Rear Housing - 5 units

420 mm Dish Reflector - 5 units

Gigabit PoE (24V, 0.5A) - 5 units

Mounting Hardware - 5 units

Quick Start Guide
