UBIQUITI ECS-24-PoE - UniFi Enterprise Campus 24 PoE switch

High-Capacity Switching

The UniFi Switch Enterprise Campus 24 PoE is designed to meet the demands of high-density enterprise deployments, offering a robust switching foundation that delivers a non-blocking throughput of 230 Gbps, a switching capacity of 460 Gbps, and a forwarding rate of 342 million packets per second (Mpps). It supports up to 1,000 VLANs and provides a MAC address table capable of 128,000 entries, allowing extensive segmentation and device connectivity across the network. Equipped with Layer 3 routing, the switch supports advanced network management, including DHCP Server in local networks, DHCP Relay, Inter‑VLAN Routing, and Static Routing. The chassis measures 442.4 × 43.7 × 496 mm (1U rack-depth) and is built with SGCC steel enclosure, reflecting enterprise-class build quality. These performance metrics and robust architecture make the ECS-24-PoE ideal for campus backbone, aggregation layers and large wired access deployments where consistent throughput, segmentation and core switching features are essential.

PoE Performance

The ECS-24-PoE supports 24 ports of the highest Power-over-Ethernet class (PoE+++), with PoE-out capability up to 90 W per port, enabling connectivity and power delivery for high-consumption devices such as Wi-Fi 6/6E/7 access points, PTZ cameras and networked audio systems. The total PoE budget reaches 2,250 W in Shared Mode (200-240 V AC), with certified values of 1,850 W at 100-120 V AC Shared Mode, 1,050 W in Redundant Mode (200-240 V AC) and 850 W in Redundant Mode (100-120 V AC). Redundancy is addressed via dual hot-swappable AC/DC 600W power modules and four hot-swappable fan modules, designed to keep the system operational while maintenance is carried out. The device accepts universal 100-240 V AC input, and its hardware design aligns with full-depth 1U rack installations. Built with enterprise power delivery and maintenance in mind, the ECS-24-PoE offers dependable infrastructure readiness for large-scale PoE deployments.

Advanced Features

Beyond performance and power delivery, the ECS-24-PoE delivers a rich set of Layer 2 and Layer 3 management and control features. On the Layer 2 side, it includes LACP Port Aggregation, STP/RSTP, QoS (DSCP), Advanced IGMP Configuration (Querier, Fast Leave, Router Port), IGMP Snooping, 802.1X Control, MAC-based ACLs, Port Isolation, and Jumbo Frames, among others as specified. On the Layer 3 side, it supports DHCP Server, DHCP Relay, Inter-VLAN Routing and Static Routing within local networks. The unit features Etherlighting™ status indication, a 1.3″ touchscreen (LCM) display, and supports rack-four-post installations at depths of 650-1000 mm. Operating conditions are rated for -5 °C to 40 °C ambient temperature and 10-95% non-condensing humidity. These features make the ECS-24-PoE not just a high-capacity switch, but a fully managed, high-control network device suited for enterprise-class wired infrastructure.

Dimensions: 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5")

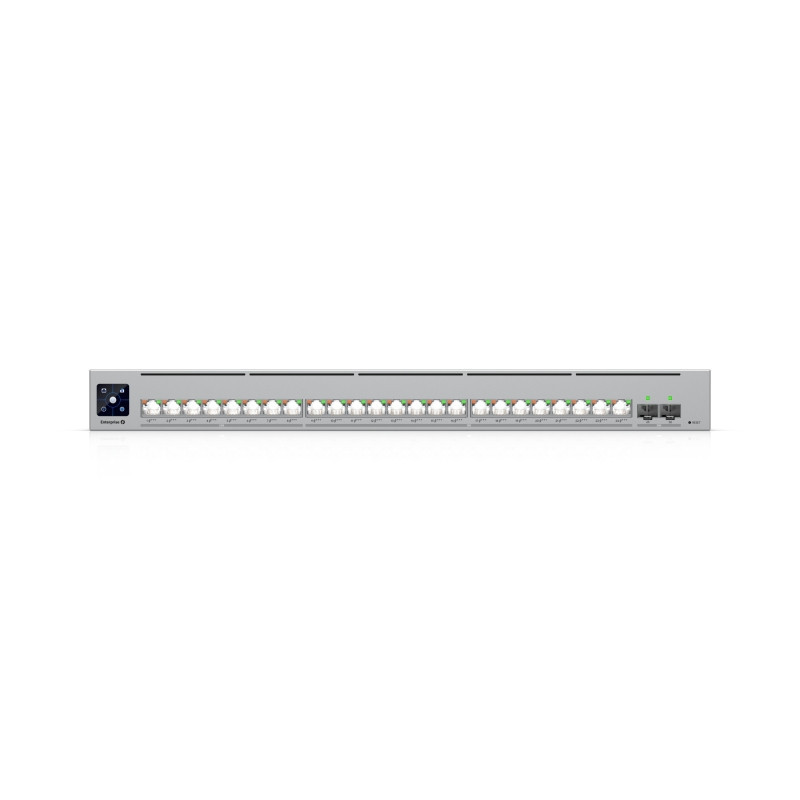

Port Layout:

2.5 GbE RJ45: 8 (All PoE+++) (2.5G/1G/100M/10M)

10 GbE RJ45: 16 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)

25G SFP28: 2 (25G/10G/1G)

Max. PoE Output: Up to PoE+++

Total PoE Availability:

100-240V AC Shared Mode: 1,050W with (2) 600W modules

100-240V AC Redundant Mode: 450W with (2) 600W modules

200-240V AC Shared Mode: 2,250W with (2) 1,200W modules

100-120V AC Shared Mode: 1,850W with (2) 1,200W modules

200-240V AC Redundant Mode: 1,050W with (2) 1,200W modules

100-120V AC Redundant Mode: 850W with (2) 1,200W modules

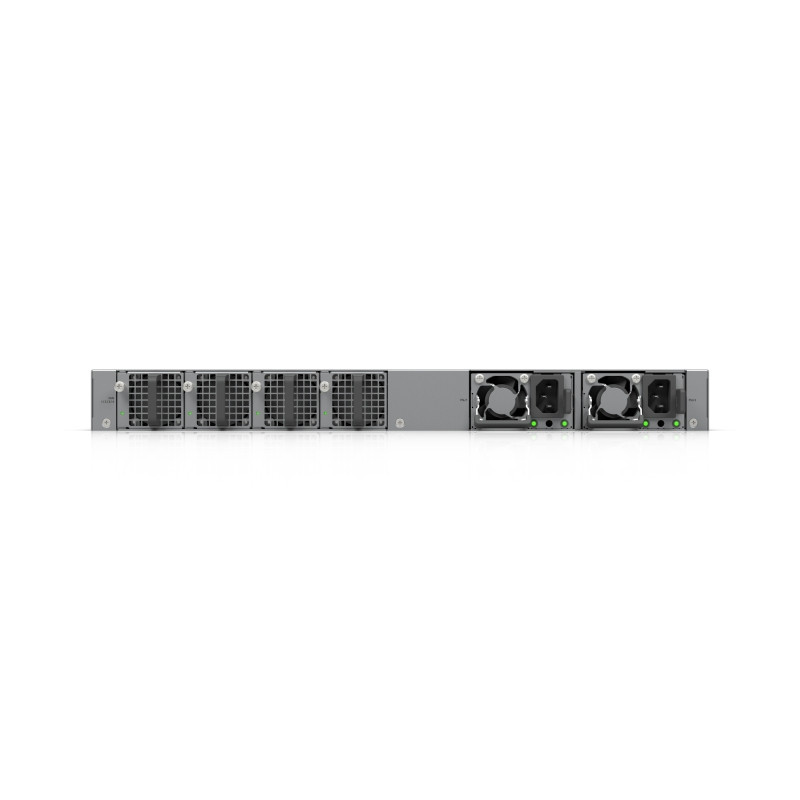

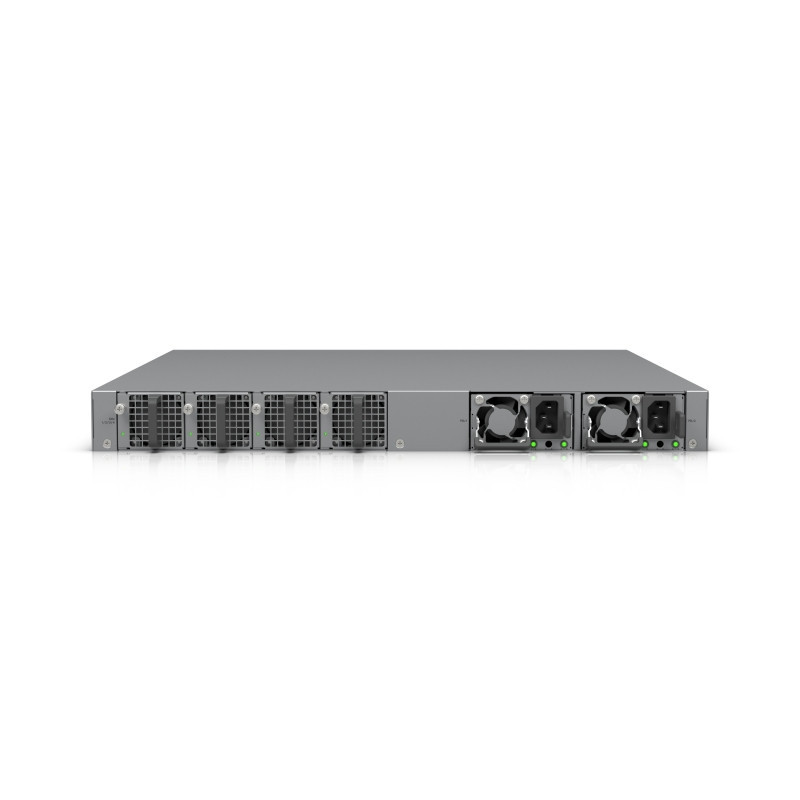

Redundancy:

(2) Hot-Swappable PSUs

(4) Hot-Swappable Fans

Layer 3: ✓

Form Factor: Rack Mount (1U, Full-Depth)

Etherlighting™: ✓

Performance

Switching Capacity: 460 Gbps

Total Non-Blocking Throughput: 230 Gbps

Forwarding Rate: 342 Mpps

Supported VLANs: 1,000

MAC Address Table Size: 32,000

IPv4 Static Routes: 512

Packet Buffer Size: 8 MB

Access Lists:

IPv4: 256

MAC: 256

DHCP Server (Local Networks): ✓

DHCP Relay: ✓

Inter-VLAN Routing (Local Networks): ✓

Static Routing (Local Networks): ✓

LACP Port Aggregation: ✓

STP & RSTP: ✓

QoS (DSCP): ✓

Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): ✓

Advanced IGMP Configuration (Querier, Fast Leave, Router Port): ✓

IGMP Snooping: ✓

802.1X Control: ✓

MAC-Based ACLs & Device Isolation: ✓

DHCP Snooping & Guarding: ✓

Egress Rate Limit: ✓

Flow Control: ✓

Storm Control: ✓

Multicast & Broadcast Rate Limiting: ✓

MAC Address Blocking: ✓

IP-Based ACLs & Network Isolation: ✓

MAC-Based Port Restriction: ✓

Port Isolation: ✓

Port Mirroring: ✓

Jumbo Frames: ✓

LLDP-MED: ✓

Voice VLAN: ✓

Loop Protection: ✓

Virtual Network Override: ✓

Hardware

PoE Ports:

PoE+++: 24

Max. PoE Wattage per Port by PSE:

PoE: 15.4W

PoE+: 30W

PoE++: 60W

PoE+++: 90W

Max. Power Consumption:

150W (Excluding PoE Output)

2,400W (Including PoE Output)

Power Method: (2) Universal input, 100-240V AC, 50/60 Hz

Power Input Method: (2) AC input, Hot-swappable power modules

Power Supply: (2) Hot-swappable AC/DC 600W power modules

Supported Voltage Range: 100-240V AC

Management: Ethernet AR

Heat Dissipation: 444 BTU/hr (Excluding PoE Output)

Weight:

Without mounting brackets: 9.46 kg (20.9 lb)

With mounting brackets: 9.56 kg (21.1 lb)

Enclosure Material: SGCC steel

Supported Rack Depth:

482.6 mm (19") four-post racks

Posts depths ranging from 650 to 1,000 mm (25.6-39.4")

LCM Display: 1.3" touchscreen

Fan Method: (4) hot-swappable fan modules

ESD Protection: Air: ± 30kV, contact: ± 30kV

Ambient Operating Temperature: -5 to 40° C (23 to 104° F)

Ambient Operating Humidity: 10 to 90% noncondensing

Etherlighting™:

Ethernet: ✓

SFP28: ✓

LEDs:

Ethernet: ✓

System: ✓

NDAA Compliant: ✓

Certifications: CE, FCC, IC, Anatel: 06181-25-08356

Software

Application Requirements:

UniFi Network: Version 9.0.114 and later
