UBIQUITI Dream Router 7

Unmatched Wireless PerformanceThe UniFi Dream Router 7 (UDR7) represents a significant advancement in networking technology, designed to meet the evolving demands of modern homes and businesses. As a Wi-Fi 7 (802.11be) router, it offers unprecedented wireless speeds and efficiency, ensuring seamless connectivity for a multitude of devices. With its sleek design and robust feature set, the UDR7 redefines user expectations for network performance and reliability. The UDR7 leverages the latest Wi-Fi 7 technology to deliver exceptional wireless performance across three frequency bands. The 6 GHz band offers speeds up to 5.7 Gbps, the 5 GHz band up to 4.3 Gbps, and the 2.4 GHz band up to 688 Mbps. Each band utilizes a 2x2 MIMO configuration, ensuring efficient data transmission and reception. This tri-band setup not only enhances overall network capacity but also reduces interference, providing a stable and high-speed connection for activities such as streaming, gaming, and video conferencing.

Comprehensive Network ManagementThe UDR7 offers a suite of network management and security features. It includes a stateful firewall, application-aware Layer 7 firewall, deep packet inspection (DPI), and intrusion prevention systems (IPS/IDS) with over 20,000 signatures powered by CyberSecure. Additionally, the UDR7 supports VLAN and subnet-based traffic segmentation, advanced QoS, dynamic routing with OSPF, and an integrated RADIUS server for granular network control. The UDR7 is fully integrated with the UniFi Application Suite, supporting Network, Protect, Access, Talk, and Connect applications. This integration allows for centralized management of various network functions, simplifying the user experience. The router can manage over 30 UniFi devices and supports more than 300 simultaneous users, making it a scalable solution for growing networks. Whether for a home setup or a small to medium-sized business, the UDR7 provides a comprehensive networking solution.

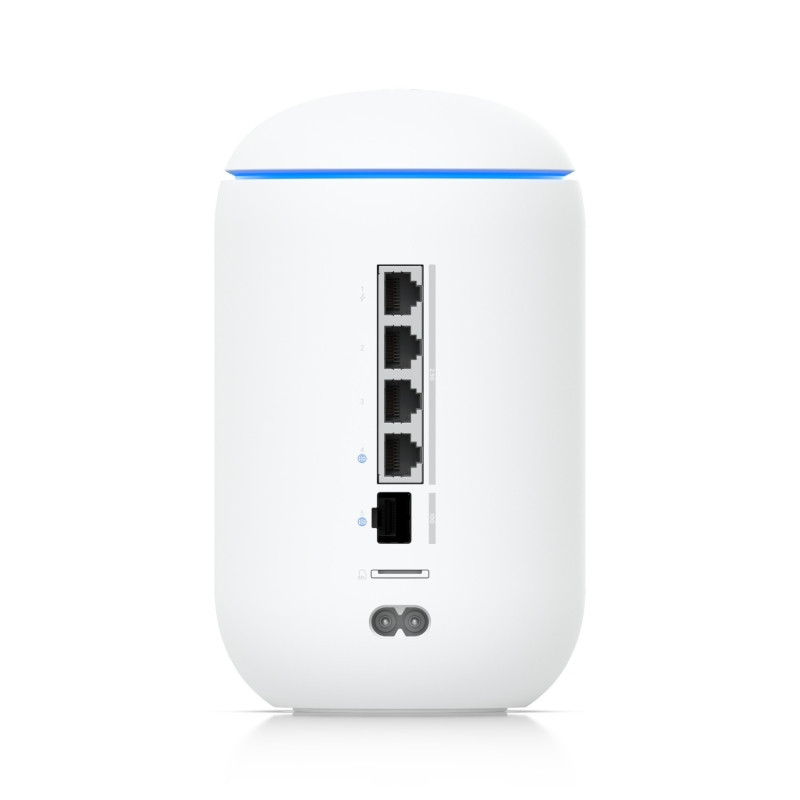

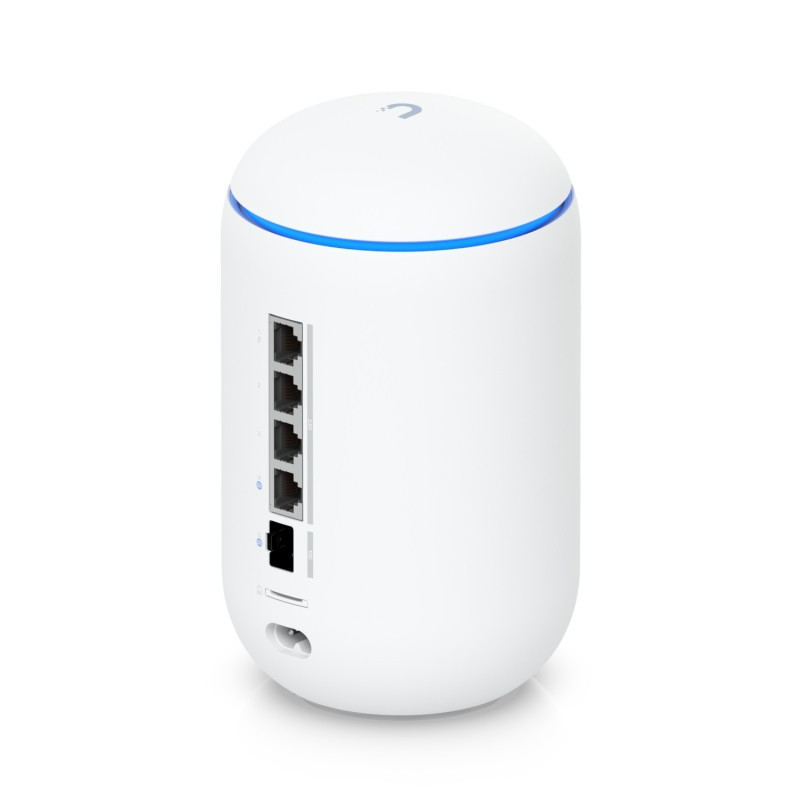

Versatile ConnectivityThe UDR7 is equipped with a variety of ports to accommodate diverse networking needs. It features one 10G SFP+ port and one 2.5 GbE RJ45 port for WAN connections, providing flexible options for internet connectivity. For LAN connectivity, it offers three 2.5 GbE RJ45 ports, including one PoE port with a 15.4W budget, allowing for direct powering of compatible devices such as access points or IP cameras. Additionally, the router includes a pre-installed 64GB microSD card for NVR storage, with an expansion slot available for further storage needs. The UDR7 boasts a compact desktop form factor, making it suitable for various environments. It features a 0.96' status display for system information and supports management via Ethernet and Bluetooth, offering flexibility in configuration and monitoring. The internal 50W AC/DC power supply ensures reliable operation, and with a maximum power consumption of 26W (excluding PoE output), the UDR7 is both powerful and energy-efficient.

Dimensions: Ø110 x 184.1 mm (Ø4.3 x 7.3')

UniFi Application Suite:

Network: Yes

Protect: Yes

Access: Yes

Talk: Yes

Connect: Yes

Managed UniFi Devices: 30+

Managed Cameras:

(5) HD

(2) 2K

(1) 4K

Simultaneous Users Connected: 300+

Default WAN Ports:

(1) 10G SFP+

(1) 2.5 GbE RJ45

LAN Ports: (3) 2.5 GbE RJ45 including (1) PoE

IDS/IPS Throughput: 2.3 Gbps

Form Factor: Compact desktop

Coverage Area: 160 m² (1,750 ft²)

SecurityStateful Firewall: Yes

Application-Aware Layer 7 Firewall: Yes

DPI Traffic Identification: Yes

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps): Yes

Content Filtering: Yes

Intrusion Prevention (IPS/IDS): Yes

Ad Blocking: Yes

IDS/IPS Signatures: 20,000+ with CyberSecure

VLAN/Subnet-based Traffic Segmentation: Yes

VPN SD-WANLicense-Free SD-WAN: Yes

Site-to-Site VPN:

Site Magic: Yes

IPsec: Yes

OpenVPN: Yes

VPN Server:

Identity Endpoint One-Click VPN: Yes

Teleport Zero-Configuration VPN: Yes

WireGuard: Yes

OpenVPN: Yes

L2TP: Yes

VPN Client:

OpenVPN: Yes

WireGuard: Yes

NetworkingMulti-WAN Load Balancing: Yes

Dynamic Routing:

vOSPF: Yes

Advanced QoS: Yes

Multicast DNS (mDNS): Yes

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT): Yes

Integrated RADIUS Server: Yes

RADIUS over TLS (RadSec): Yes

Additional Internet Failover with UniFi LTE Backup: Yes

Internet Quality and Outage Reporting: Yes

MAC Address Table Size: 2,000

Policy-based WAN and VPN Routing: Yes

Customizable DHCP Server: Yes

IPv6 ISP Support: Yes

IGMP Proxy: Yes

Integrated WiFiWiFi Standard: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

Throughput:

6 GHz: 5.7 Gbps

5 GHz: 4.3 Gbps

2.4 GHz: 688 Mbps

MIMO:

6 GHz: 2 x 2 (DL/UL MU-MIMO)

5 GHz: 2 x 2 (DL/UL MU-MIMO)

2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

Antenna Gain:

6 GHz: 6 dBi

5 GHz: 7 dBi

2.4 GHz: 5 dBi

Max. TX Power:

6 GHz: 24 dBm

5 GHz: 26 dBm

2.4 GHz: 23 dBm

Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

Max. BSSIDs: 4 per Radio

Supported Data Rates:

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n: 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

HardwareNVR Storage: Pre-installed 64GB microSD for NVR

Expansion Slot: MicroSD Card

PoE Budget: 15.4W

Max. PoE Wattage per Port by PSE:

PoE: 15.4W

Voltage Range PoE Mode: 44-57V

Max. Power Consumption: 26W (Excluding PoE output)

Power Method: Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz

Power Supply: AC/DC, Internal, 50W

Supported Voltage Range: 100-240V AC

Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz

System Memory: 3 GB

Weight: 1.1 kg (2.4 lb)

Enclosure Material: Polycarbonate

LCM Display: 0.96' status display

Management:

Ethernet

Bluetooth

LEDs:

System: Yes

Button: (1) Factory-reset

ESD/EMP Protection: Air: ± 8kV, contact: ± 4kV

Ambient Operating Temperature: -10 to 40° C (14 to 104° F)

Ambient Operating Humidity: 5 to 95% noncondensing

Certifications: CE, FCC, IC

NDAA Compliant: Yes

SoftwareVLAN: 802.1Q

Guest Traffic Isolation: Yes

Application Requirements:

UniFi Network: Version 9.0.108 and later
