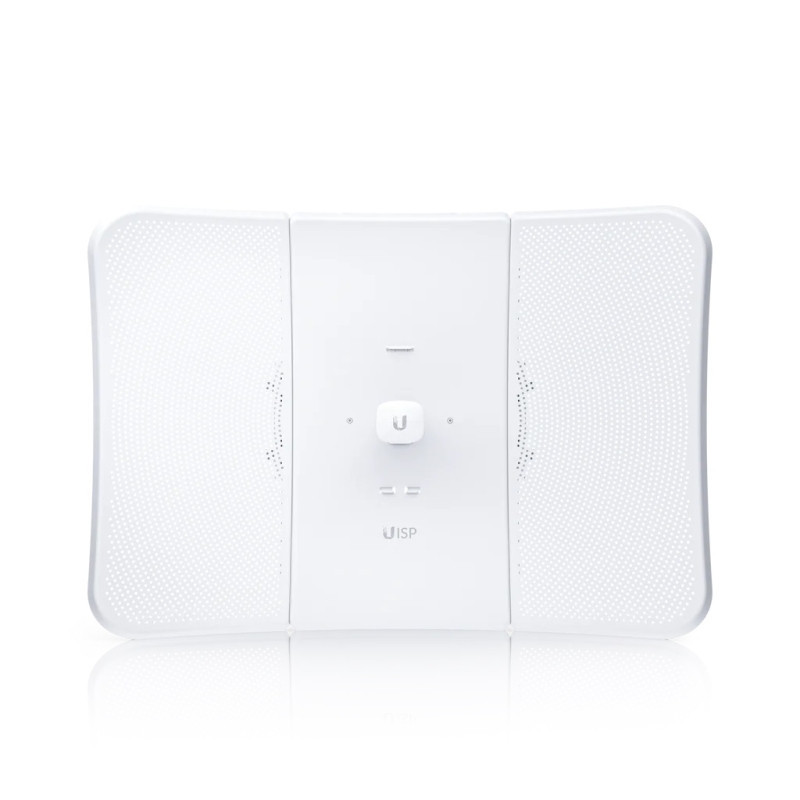

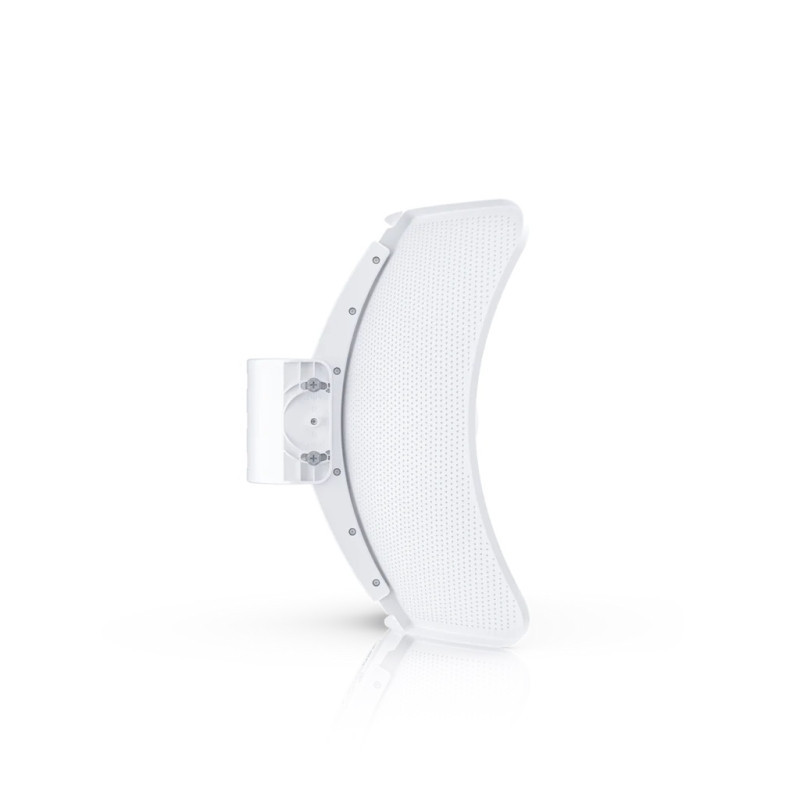

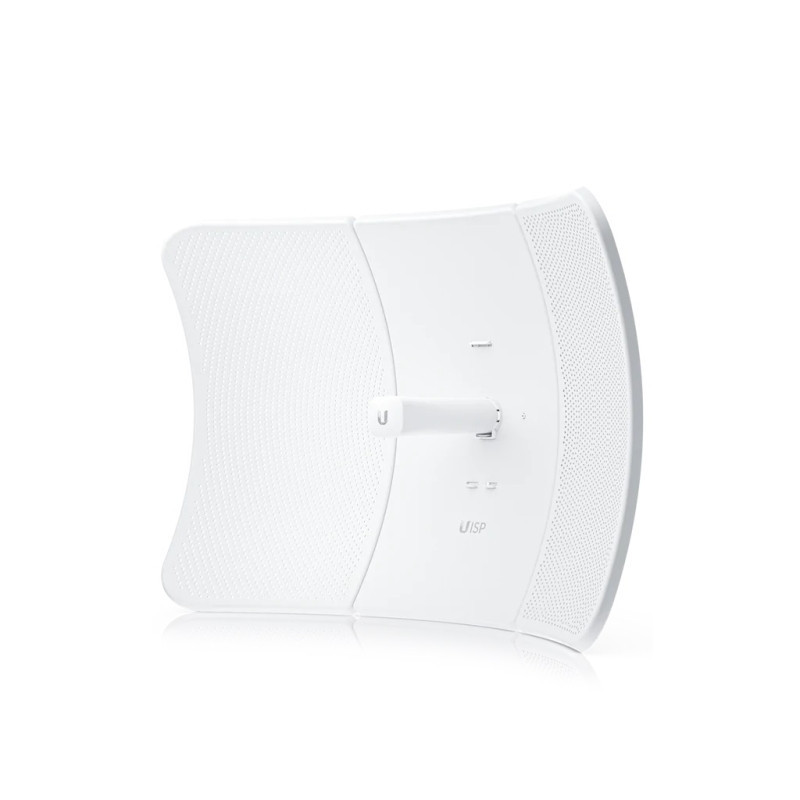

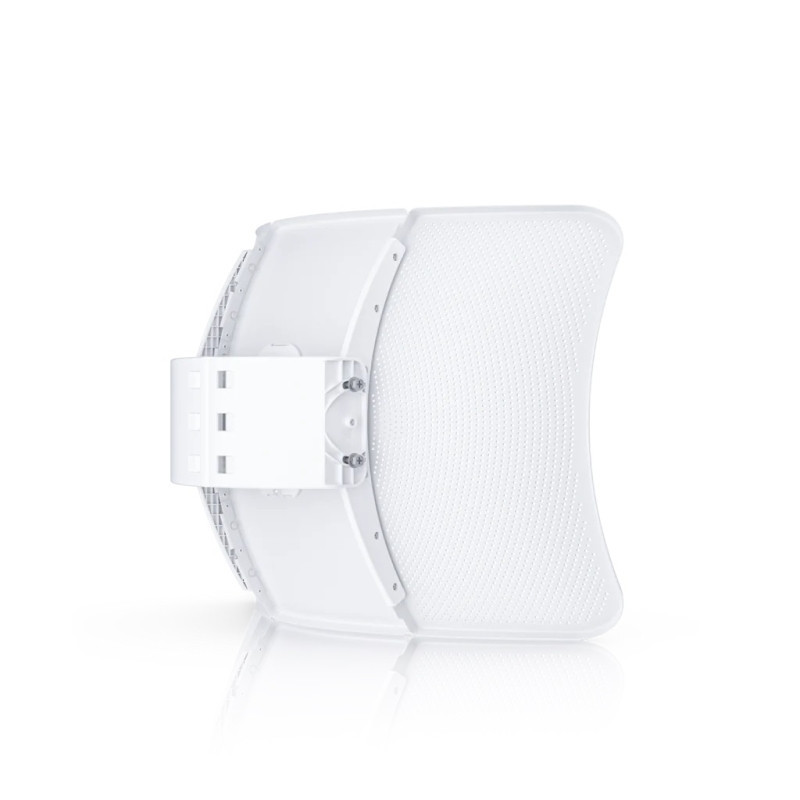

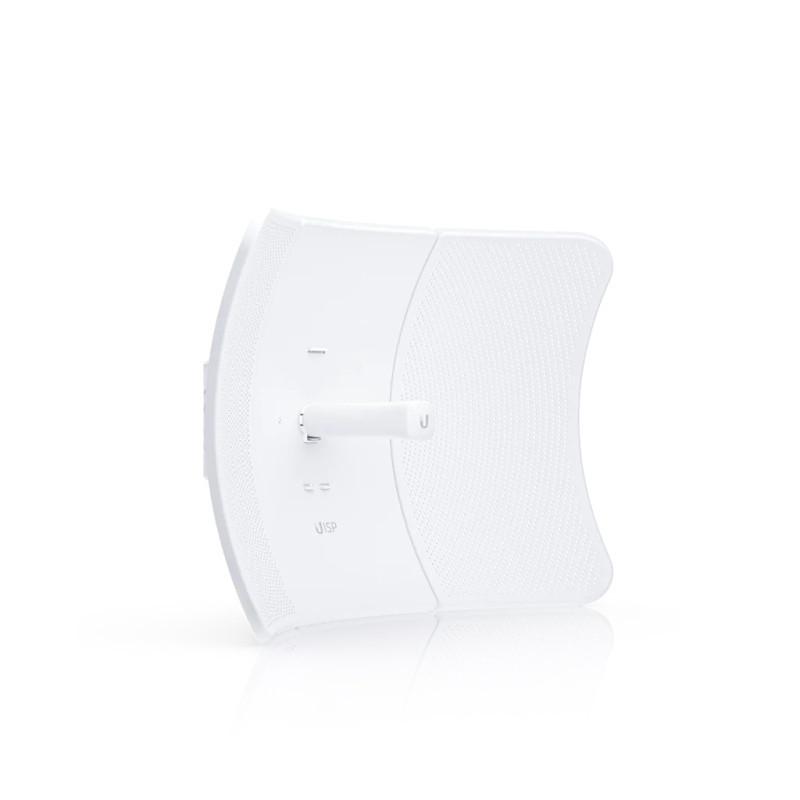

UBIQUITI airMAX® LiteBeam® AC 5 GHz XR
Prekės kodas: 18-LBE-5AC-XR
UBIQUITI airMAX® LiteBeam® AC 5 GHz XR
UBIQUITI airMAX® LiteBeam® AC 5 GHz XR
UBIQUITI airMAX® LiteBeam® AC 5 GHz XR
UBIQUITI airMAX® LiteBeam® AC 5 GHz XR
UBIQUITI airMAX® LiteBeam® AC 5 GHz XR
UBIQUITI airMAX® LiteBeam® AC 5 GHz XR
UBIQUITI airMAX® LiteBeam® AC 5 GHz XR

UBIQUITI airMAX® LiteBeam® AC 5 GHz XR

Prekės kodas: 18-LBE-5AC-XR
UBIQUITI airMAX® LiteBeam® AC 5 GHz XR
Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.
  • Įtraukti į patikusias prekes
  • Pridėta į patikusias prekes
  • Pašalinta iš patikusų prekių
Įtraukti į palyginimą
138,74 €
Prekė sandelyje

Garantija
12 mėn.

Pristatymas iš Lietuvos
per 2 - 4*
d. d.

Jūsų žinutė sėkmingai išsiųsta!
Užpildykite privalomus laukus*

Ultra-lightweight, outdoor, wireless station designed to create extremely long-distance links.


The airMAX® LiteBeam® AC 5 GHz XR (LBE 5AC XR) is an outdoor, wireless station designed to establish high-speed connections over extremely long distances, allowing you to serve more subscribers with just a single device. The LBE 5AC XR also features a proprietary, high-gain antenna capable of delivering 450+ Mbps throughput over the 5 GHz frequency range.


Features:



  • Proprietary airMAX ac chipset

  • Ultra-lightweight aluminum alloy and UV-stabilized polycarbonate

  • High-gain antenna with InnerFeed® technology

  • Establishes high-speed, extremely-long-distance links

  • Integrated GPS

  • Link planning support viaISP Design Center

  • Dedicated management radio for quick device setup via the UISP® Mobile app




























































































































































Mechanical
Dimensions747 x 525 x 347 mm (29.41 x 20.67 x 13.66')
Weight3.2 kg (7.06 lb)
Enclosure materialsAluminum alloy, UV stabilized polycarbonate
Mount materialUV stabilized polycarbonate
MountingIntegrated pole mount (included)

Pole compatibility: Ø35 to 60 mm (Ø1.38 to 2.36')
Wind loading1100 N at 200 km/h (247.29 lbf at 125 mph)
WeatherproofingIPX6
Hardware
Networking interface(1) GbE RJ45 port
Power methodPassive PoE 2-pair (4, 5+; 7, 8-)
Power supply24V DC, 0.5A Gigabit PoE adapter (included)
Supported voltage range22—26V DC
Max. power consumption7W
RF connectionsInternal
LEDsPower/ethernet
ButtonFactory reset
Operating temperature-40 to 70° C (-40 to 158° F)
Operating humidity5 to 95% non-condensing
CertificationsFCC, IC, CE
System
Maximum throughput450+ Mbps
EncryptionWPA2-PSK (AES)
Software
OSairOS®
ModesPtMP, PtP
ServicesSNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog
UtilitiesairView®, speed test, alignment, discovery, ping, traceroute, constellation
Management interfaceDedicated management radio for quick device setup via the UISP™ Mobile app

WEB UI
Minimum software requirementsModern Web browser or Android/iOS smartphone
RF
Operating frequency*5.15 to 5.85 GHz* Depends on regulatory region.
Max. conducted TX power25 dBm
Management radio2400 - 2483.5 MHz
Channel bandwidth10/20/30/40/50/60/80 MHz
Antenna Gain29 dBi
Isolation20 dB
BeamwidthHPOL: 3 dB: 5.5°, 6 dB: 7.5°

VPOL: 3 dB: 5.5°, 6 dB: 7.5°

Elevation: 3 dB: 5.5°, 6 dB: 7.5°
Electrical downtilt0°
