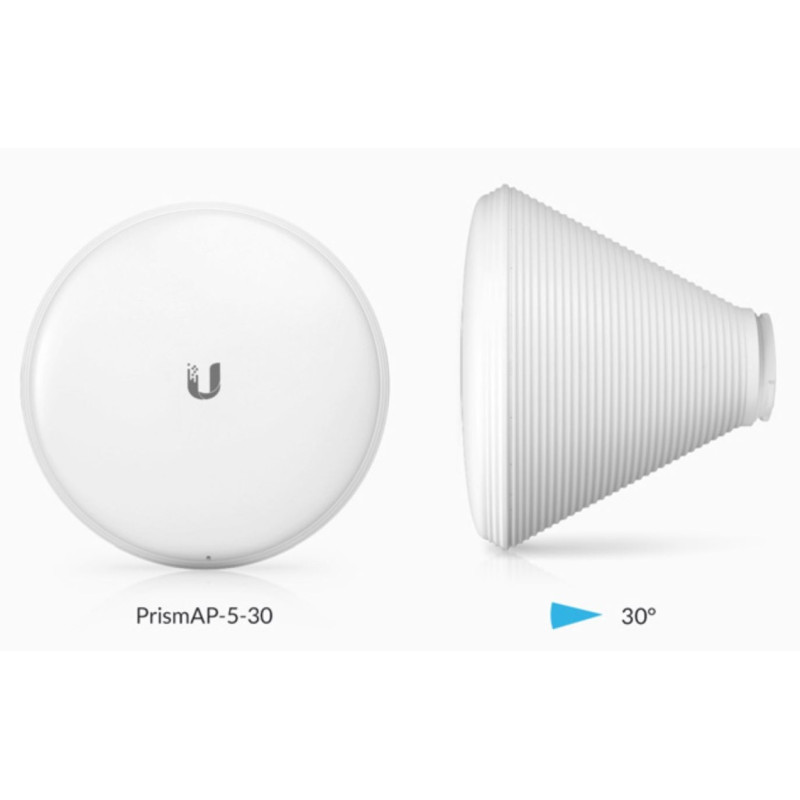

UBIQUITI airMAX® ac spindulio pločio sektoriaus izoliavimo antenos ragas, 30 laipsnių

Modular Design

With flexible sectorization for optional antenna beamwidths, the PrismAP antennas are interchangeable and improve beam-shaping for specific deployment and environment needs. The PrismStation 5AC and soStations use horn antenna sectors designed for increased co-location performance without sacrificing gain.

Scalability

Symmetrical horn antennas (30 degrees and 45 degrees versions, models PrismAP-5-30 and PrismAP-5-45, respectively) offer breakthrough scalability options for wireless systems. Unique beam performance and great co- location characteristics allow for a higher density of sectors than traditional sector technology.

Enhanced Co-Location

Asymmetrical horn antennas (60 degrees and 90 degrees versions, models PrismAP-5-60 and PrismAP-5-90, respectively) have naturally attenuated side lobes and extremely low back radiation. They offer best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.

Dimensions: Ø 221.4 x 184.2 mm (8.71 x 7.3')
Weight: 1.1 kg (38.8 oz)
Supported Frequency Range: 5.15 - 5.85 GHz
Gain: 19 dBi
HPOL Beamwidth: 30°
VPOL Beamwidth: 30°
Elevation Beamwidth: 30°
Maximum VSWR: 1.7:1
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 56 N @ 200 km/h (12.6 lbf @ 125 mph)
Polarization: Dual-Linear
Cross-Pol Isolation: 17 dB

The PrismAP is compatible with the following models:
• IsoStation™ IS-M5
• IsoStation IS-5AC
• PrismStation™ PS-5AC

IsoStation and/or PrismStation IS NOT INCLUDED !!!
