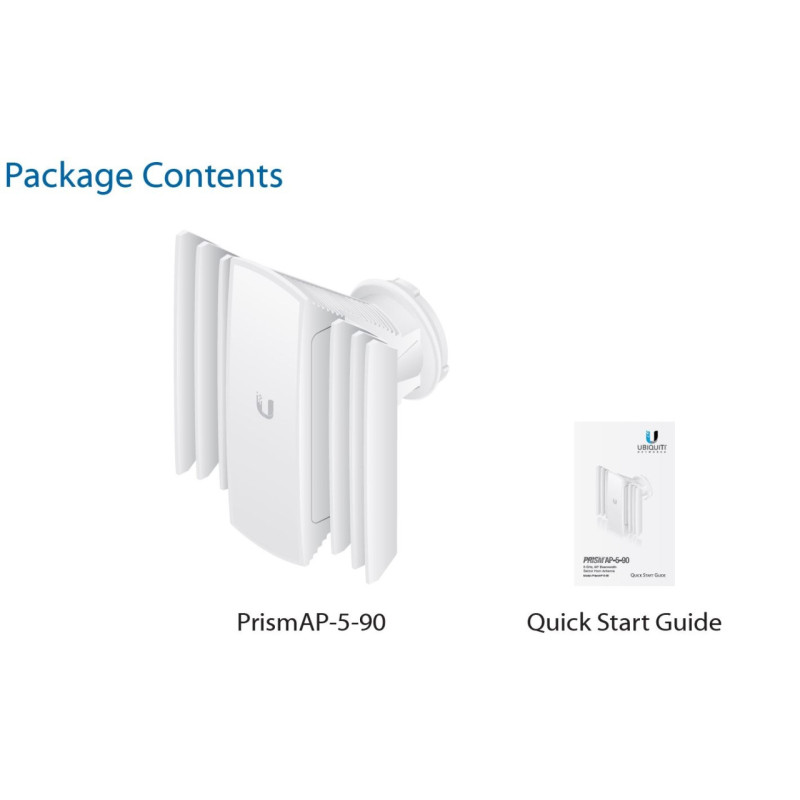

UBIQUITI airMAX® ac spindulio pločio sektoriaus izoliacijos antenos ragas, 90 laipsnių

Modular Design

With flexible sectorization for optional antenna beamwidths, the PrismAP antennas are interchangeable and improve beam-shaping for specific deployment and environment needs. The PrismStation 5AC and soStations use horn antenna sectors designed for increased co-location performance without sacrificing gain.

Scalability

Symmetrical horn antennas (30 degrees and 45 degrees versions, models PrismAP-5-30 and PrismAP-5-45, respectively) offer breakthrough scalability options for wireless systems. Unique beam performance and great co- location characteristics allow for a higher density of sectors than traditional sector technology.

Enhanced Co-Location

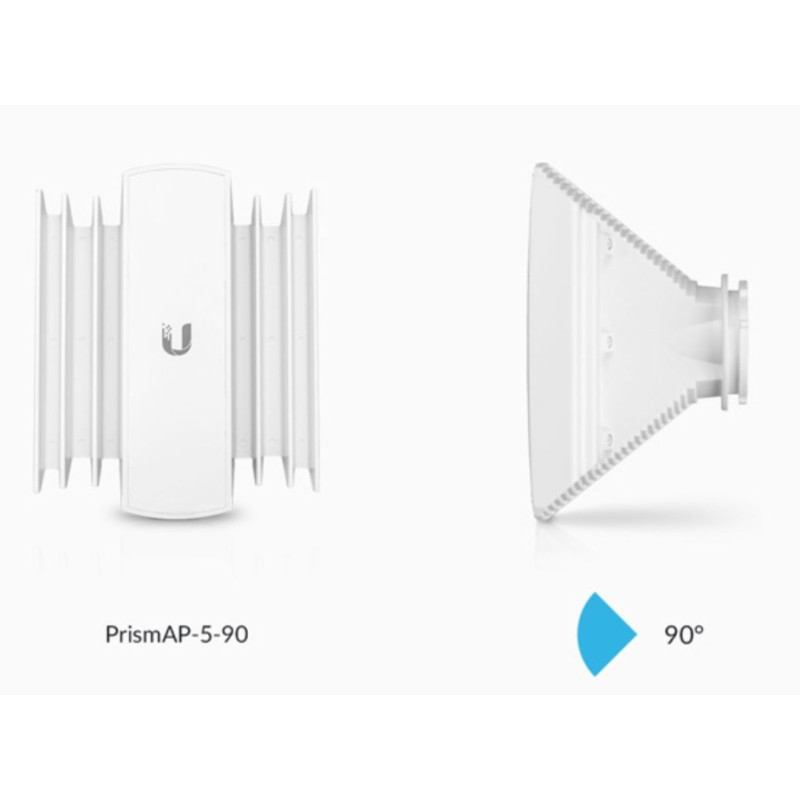

Asymmetrical horn antennas (60 degrees and 90 degrees versions, models PrismAP-5-60 and PrismAP-5-90, respectively) have naturally attenuated side lobes and extremely low back radiation. They offer best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.

Dimensions: 152.1 x 186.8 x 113.2 mm (5.99 x 7.35 x 4.46')

Weight: 920 g (32.45 oz)

Supported Frequency Range: 5.15 - 5.85 GHz

Gain: 13 dBi

HPOL Beamwidth: 90°

VPOL Beamwidth: 90°

Elevation Beamwidth: 45°

Maximum VSWR: 2:1

Wind Survivability: 200 km/h (125 mph)

Wind Loading: 46 N @ 200 km/h (10.3 lbf @ 125 mph)

Polarization: Dual-Linear

Cross-Pol Isolation: 17 dB

The PrismAP is compatible with the following models:

• IsoStation™ IS-M5

• IsoStation IS-5AC

• PrismStation™ PS-5AC

IsoStation and/or PrismStation IS NOT INCLUDED !!!
