UBIQUITI 2x2 MIMO airMAX® ac 5GHz Sektorius AP, LiteAP ac

The LiteAP™ ac is an ultra-lightweight airMAX ac Access Point with incredible performance and disruptive pricing.

The LiteAP™ ac is the latest evolution of a lightweight and compact, outdoor wireless broadband product from Ubiquiti Networks. It was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. It operates in the worldwide, license-free 5 GHz frequency range with high-performance speeds.

The LiteAP ac combines proprietary hardware and software technologies to deliver its breakthrough combination of throughput and range with cost-effective value.

Integrated airMAX Technology

Unlike standard Wi-Fi protocol, the exclusive Ubiquiti Networks® airMAX Time Division Multiple Access (TDMA) protocol allows each client to send and receive data using pre-designated time slots managed by an intelligent AP controller. This 'time slot' method eliminates hidden node collisions and maximizes airtime efficiency.

Compared to other systems in its class, the LiteAP ac product delivers superior performance in reduced latency, throughput, and scalability.

•Intelligent QoSPriority is given to voice/video for seamless access.

•ScalabilityHigh capacity and scalability.

•Long DistanceCapable of high-speed, 30+ km links.

airMAX ac Sector Coverage

The LiteAP ac features a 2x2 MIMO antenna and communicates with multiple airMAX ac CPEs within a 120° coverage area.

Now with airOS^®8

airOS^®8 provides powerful features, including airMAX^®ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

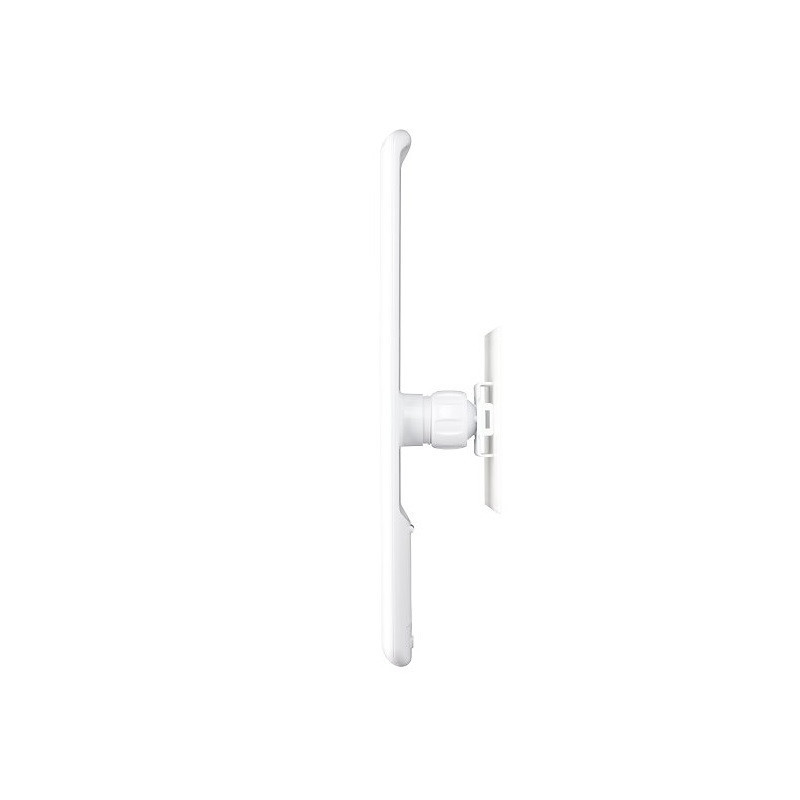

Lightweight and Sleek Design

The LiteAP ac features a lightweight antenna with an integrated radio in a sleek and highly efficient design.

Installation Flexibility

Featuring the freedom of three-axis alignment, the LiteAP ac fully assembles in seconds - no tools needed. Only a single wrench is required for pole-mounting.

Dimensions (No Mount): 452.3 x 78.7 x 54.4 mm (17.81 x 3.10 x 2.14')

Weight (No Mount): 420 g (14.82 oz)

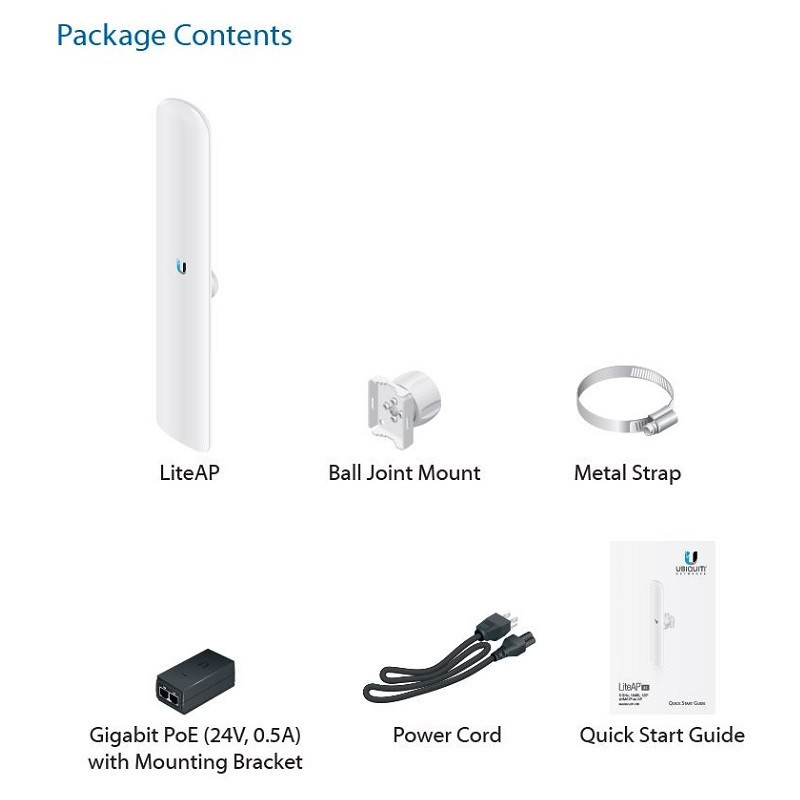

Mounting Kit: Pole Mounting Kit (Included)

Networking Interface: (1) 10/100/1000 Ethernet Port

Memory: 64 MB

Max. Power Consumption: 7W

Max. TX Power: 25 dBm

Antenna Gain: 16 dBi

Operating Frequency: 5150 - 5875 MHz

Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)

Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)

Processor Specs: Atheros MIPS 74Kc, 533 MHz

Operating Temperature: -40 to 70° C (-40 to 158° F)

Operating Humidity: 5 to 95% Noncondensing

Shock and Vibration: ETSI300-019-1.4

ETSI Specification: EN 302 326 DN2

ESD/EMP Protection: ± 24 KV Contact / Air

Wireless Approvals: FCC, IC, CE
