UBIQUITI 24 prievadų 10GbE / 2.5GbE komutatorius Pro HD 24

High-Performance Layer 3 SwitchingThe Ubiquiti UniFi Switch Pro HD 24 (USW-Pro-HD-24) is a professional-grade Layer 3 switch engineered to deliver exceptional performance and versatility for modern network infrastructures. It features two 10 Gigabit Ethernet (GbE) ports, twenty-two 2.5 GbE ports, and four 10G SFP+ ports, providing a total non-blocking throughput of 115 Gbps and a switching capacity of 230 Gbps. This robust configuration ensures seamless data transmission and efficient handling of high-bandwidth applications, making it ideal for enterprise environments that demand high-speed connectivity and reliability.

Equipped with advanced Layer 3 switching capabilities, the USW-Pro-HD-24 supports features such as static routing, VLAN routing, and DHCP services, enabling efficient traffic management and network segmentation. These features enhance network performance, security, and scalability, making the switch suitable for complex network architectures. Additionally, the switch supports Etherlighting™, a feature that illuminates ports to indicate port location, speed/link, and native VLAN/network, facilitating easy identification and troubleshooting.

Comprehensive FeaturesIn addition to its Layer 3 capabilities, the USW-Pro-HD-24 offers a range of Layer 2 features, including IGMP snooping, port isolation, multicast/broadcast rate limiting, flow control, and 802.1X control. These features help optimize network traffic and protect against potential security risks. Additionally, the USW-Pro-HD-24 integrates seamlessly with the UniFi Network application (Version 8.6.9 and later), offering a user-friendly interface to manage, monitor, and configure your network. The application simplifies deployment and ongoing management, enabling real-time monitoring and quick adjustments to maintain network performance and security.

The USW-Pro-HD-24 has an SGCC steel enclosure measuring 442.4 x 285 x 44 mm and weighing 4.2 kg without mounting brackets, making it suitable for both rack-mounted and standalone deployments. The switch includes rackmount brackets for easy integration into standard 19-inch racks, while its compact design allows for placement in various environments, including data centers, server rooms, and office spaces. The 1.3' touchscreen LCD provides real-time system status updates, enhancing user experience and simplifying network management.

Dimensions: 442 x 285 x 44 mm (17.4 x 11.2 x 1.7')

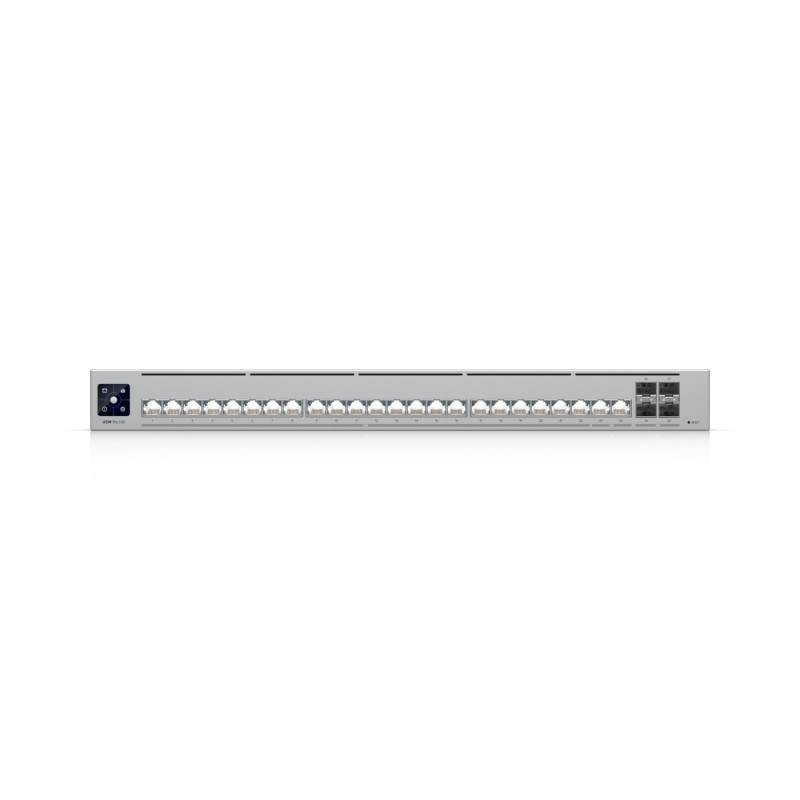

Port Layout:

2.5 GbE RJ45: 22 (2.5G/1G/100M/10M)

10 GbE RJ45: 2 (10G/5G/2.5G/1G/100M)

10G SFP+' 4 (10G/1G)

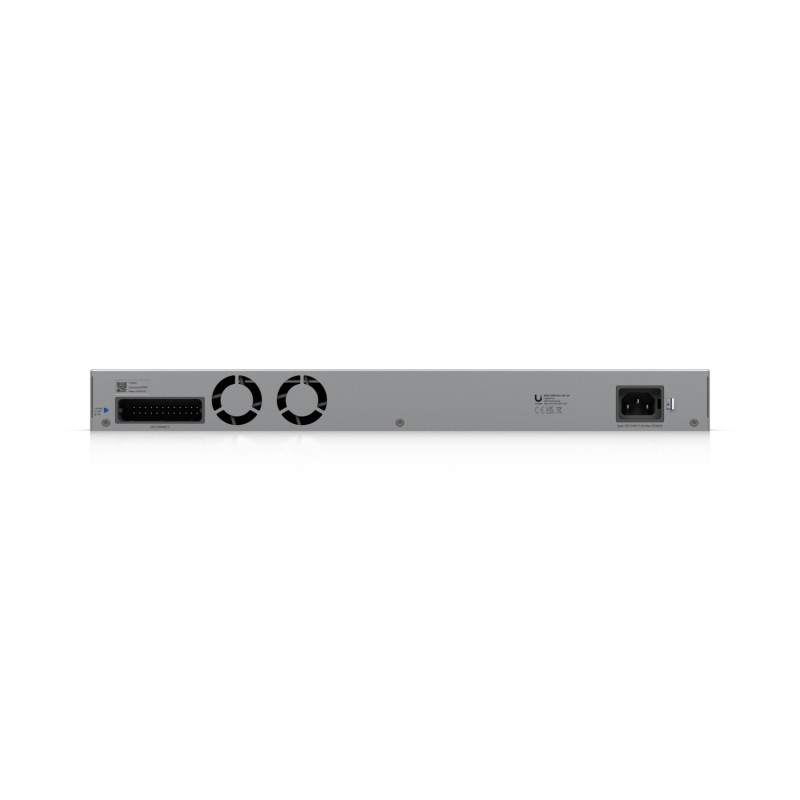

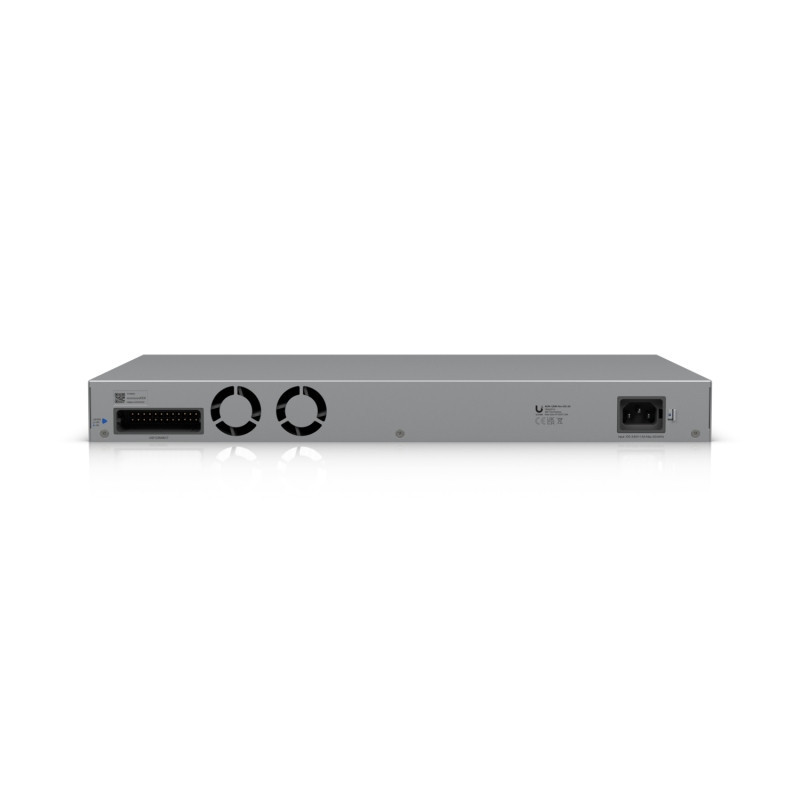

Redundancy: DC Power Backup (With UniFi RPS)

Layer 3: Yes

Form Factor: Rack mount (1U)

Etherlighting™: Yes

Performance

Switching Capacity: 230 Gbps

Total Non-Blocking Throughput: 115 Gbps

Forwarding Rate: 171.12 Mpps

Supported VLANs: 1,000

MAC Address Table Size: 32,000

L3 Table Size:

ARP Entries: 12,000

IPv4 Routes: 12,000

Packet Buffer Size: 2 MB

Layer 3 Features

DHCP Server (Local Networks): Yes

DHCP Relay: Yes

Inter-VLAN Routing (Local Networks): Yes

Layer 2 Features

Static Routing (Local Networks): Yes

LACP Port Aggregation: Yes

STP RSTP: Yes

QoS (DSCP): Yes

Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): Yes

Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes

IGMP Snooping: Yes

802.1X Control: Yes

MAC-Based ACLs Device Isolation: Yes

DHCP Snooping Guarding: Yes

Egress Rate Limit: Yes

Flow Control: Yes

Storm Control: Yes

Multicast Broadcast Rate Limiting: Yes

MAC Address Blocking: Yes

IP-Based ACLs Network Isolation: Yes

MAC-Based Port Restriction: Yes

Port Isolation: Yes

Port Mirroring: Yes

Jumbo Frames: Yes

LLDP-MED: Yes

Voice VLAN: Yes

Loop Protection: Yes

Hardware

Max. Power Consumption: 60W

Power Method:

(1) Universal input, 100—240V AC, 50/60 Hz

(1) USP RPS DC input

Power Input Method: AC input

Power Supply: AC/DC, internal, 60W

Supported Voltage Range: 100—240V AC

Management: Ethernet AR

Heat Dissipation (Excluding PoE Output): 102.36 BTU/hr

Weight:

Without mounting brackets: 4.2 kg (9.2 lb)

With mounting brackets: 4.3 kg (9.4 lb)

Enclosure Material: SGCC steel

Mount Material: SGCC steel

Supported Rack Depth: 400~1200 mm (15.7-47.2')

LCM Display: 1.3' touchscreen

Ambient Operating Temperature: -5 to 40° C (23 to 104° F)

Ambient Operating Humidity: 10 to 90% noncondensing

Etherlighting™:

Ethernet: Yes

SFP+: Yes

NDAA Compliant: Yes

Certifications: CE, FCC, IC

Software

Application Requirements:

UniFi Network: Version 9.0.114 and later
