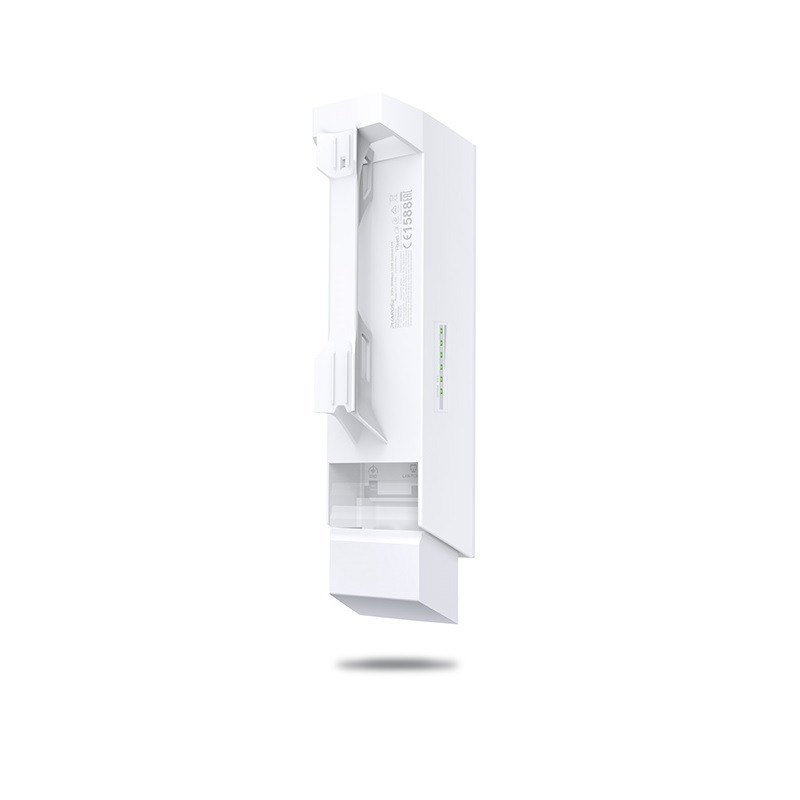

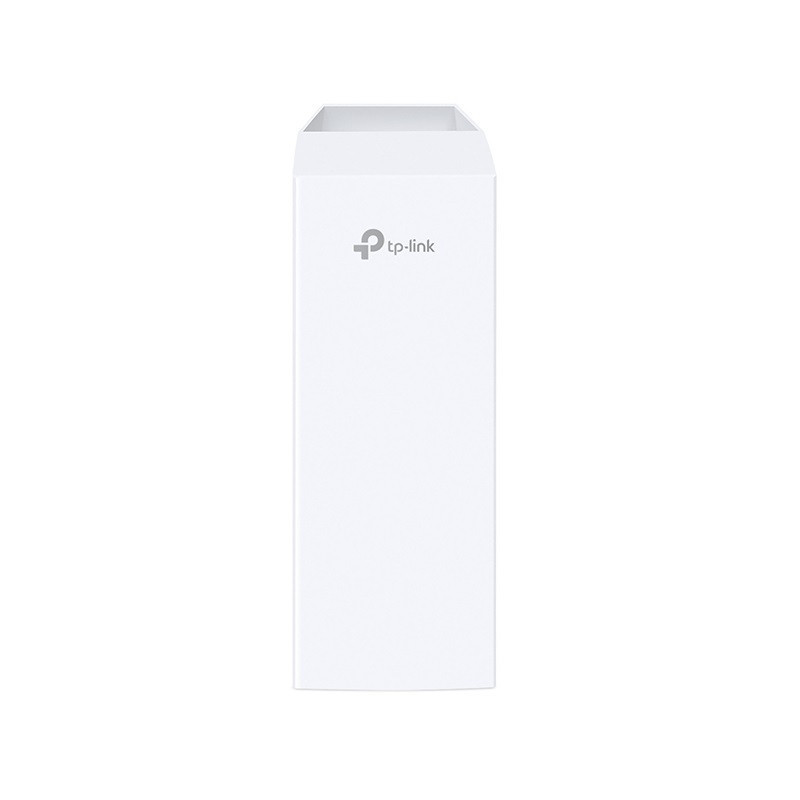

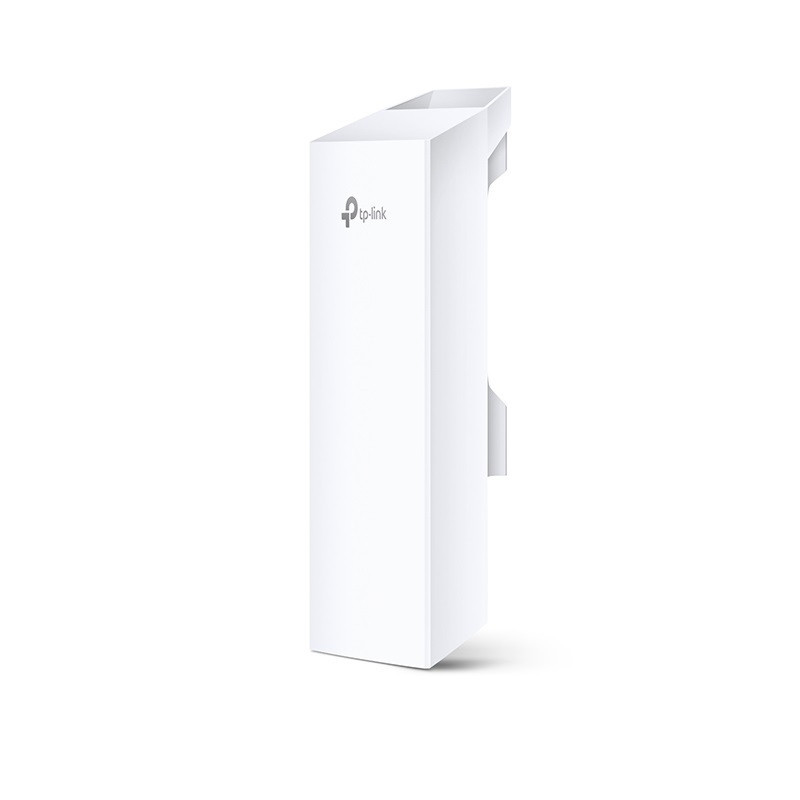

TP-LINK 2.4GHz 300Mbps 9dBi lauko CPE

Built-in 9dBi 2x2 dual-polarized directional MIMO antenna

Adjustable transmission power from 0 to 27dBm/500mw

System-level optimization for more than 5km long range wireless transmission

TP-LINK Pharos MAXtream TDMA(Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency, ideal for PTMP applications

Centralized Management System - Pharos Control

AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes

Outdoor stabilized enclosure with IPX5 waterproof certification

Dual Ethernet ports and grounding terminal integrated

6KV Lightning Protection, 15KV ESD Protection

Passive PoE Adapter supports up to 60 meters (200 feet) power over Ethernet deployment and allows for device reset remotely

Provides WEP, WPA/WPA2, WPA-PSK/WPA2-PSK data security

Selectable bandwidth of 5/10/20/40MHz

Provides Throughput Monitor, Spectrum Analyzer, Speed Test and Ping tools

Easy antenna alignment with wireless signal quality indicators via Web interface

HARDWARE FEATURES

Processor: Qualcomm Atheros 560MHz CPU, MIPS 74Kc

Memory: 64MB DDR2 RAM, 8MB Flash

Interface:

1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)

1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)

1 Grounding Terminal

1 Reset Button

Power Supply:

Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)

Voltage range: 16-27VDC

Power Consumption:

10.5 Watts Max

Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.

Dimensions: ( W x D x H ) 224 x 79 x 60 mm

Antenna Type:

Built-in 9dBi 2x2 Dual-polarized Directional Antenna

Beam Width: 65° (H-Plane) / 35° (E-Plane)

Note: For more details, please refer to datasheet

Protection:

15KV ESD Protection

6KV Lightning Protection

Enclosure:

Outdoor ASA stabilized plastic material

IPX5 waterproof Certification

WIRELESS FEATURES

Wireless Standards: IEEE 802.11b/g/n (with Pharos MAXtream disabled)

Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled)

Wireless Speeds:

Up to 300Mbps (40MHz,Dynamic)

Up to 144.4Mbps (20MHz,Dynamic)

Up to 72.2Mbps (10MHz,Dynamic)

Up to 36.1Mbps (5MHz,Dynamic)

Frequency:

2.4~2.483GHz

Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.

Transmission Power:

27dBm/500mw (Adjustable power by 1dBm)

Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.

SOFTWARE FEATURES

Wireless Configurations:

Pharos MAXtream TDMA Technology

802.11b/g/n Modes

Selectable Channel Width: 5/10/20/40MHz

Automatic Channel Selection

Transmission Power Control

Dynamic Frequency Selection (DFS)

WDS Enable/Disable

Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption

SSID Broadcast Enable/Disable

Multi-SSID with VLAN Tagging (AP mode only)

Distance/ACK Timeout Setting

Wireless MAC Address Filter

Wireless Advanced:

> Beacon Interval/RTS Threshold/Fragmentation

> Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia

Management:

Discovery and Remote Management via Pharos Control application

HTTP/HTTPS Web-based management

System Log

SNMP Agent(v2c)

Ping Watch Dog

Dynamic DDNS

SSH Server

System Tools:

Wireless Signal Quality Indicators:

Signal Strength/Noise/Transmit CCQ/CPU/Memory

Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP

Spectrum Analyzer

Speed Test

Ping

Traceroute

System-level Optimizations:

Optimized IGMP Snooping/Proxy for multicast applications

Hardware watch dog

POE ADAPTER FEATURES

Dimensions(W x D x H): 110*57*33.5mm

Input Current: 0.8A Max @ 100VAC

Input Voltage: 100VA~240VAC @ 50Hz~60Hz

Output:

24VDC, 1.0A Max

+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)

Efficiency: > 80%

Output Voltage: 24VDC(+4,5pins; -7,8pins)

Input: 100-240VAC, 50/60Hz

Power Status LEDs:

0~0.8A: Green

0.8A~1.0A: Red

Certifications: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

Interfaces:

1 AC Jack with Earth Ground

1 10/100/1000Mbps Shielded Ethernet Port (Power + Data)

1 10/100/1000Mbps Shielded Ethernet Port (Data)

Button: Remote Reset Button

OTHERS

Certification: CE, FCC, RoHS, IPX5

Package Contents:

Outdoor Wireless CPE

24V 1A Passive PoE Adapter

Pole Mounting Straps

AC Power Cord

Installation Guide

System Requirements:

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.

Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.

Environment:

Operating Temperature: -30°C~70°C (-22 ~158 )

Storage Temperature: -40 ~70 (-40 ~158 )

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~95% non-condensing
