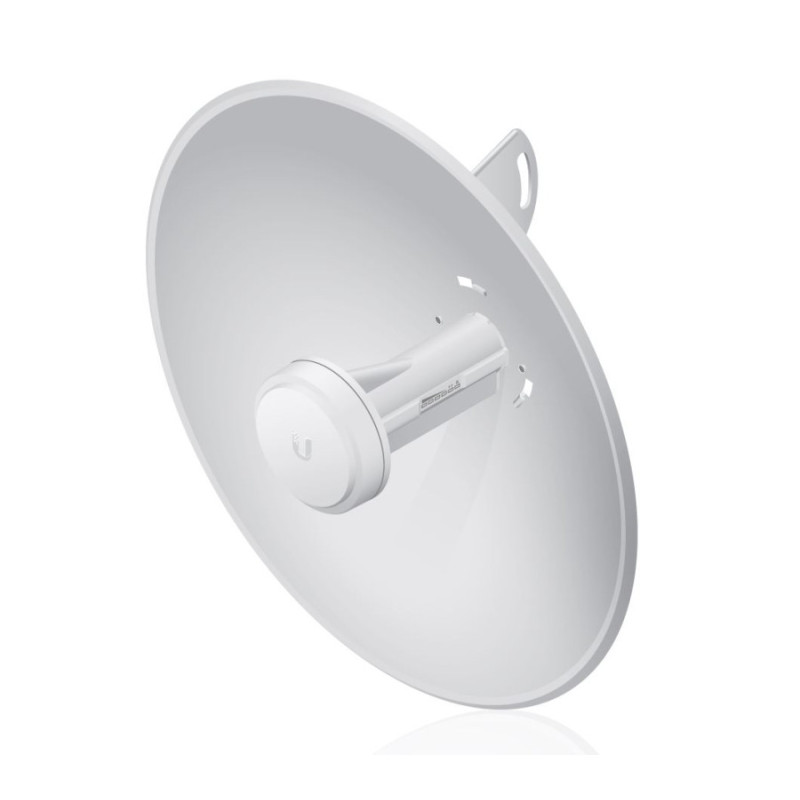

„Powerbeam M2-400 18dbi airMAX“

Starting with the first-generation NanoBridge®, Ubiquiti Networks pioneered the all-in-one design for an airMAX® product functioning as a CPE (Customer Premises Equipment). The PowerBeam® was the next generation of Ubiquiti Networks CPE's.

Improved Noise Immunity

The PowerBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Integrated Design

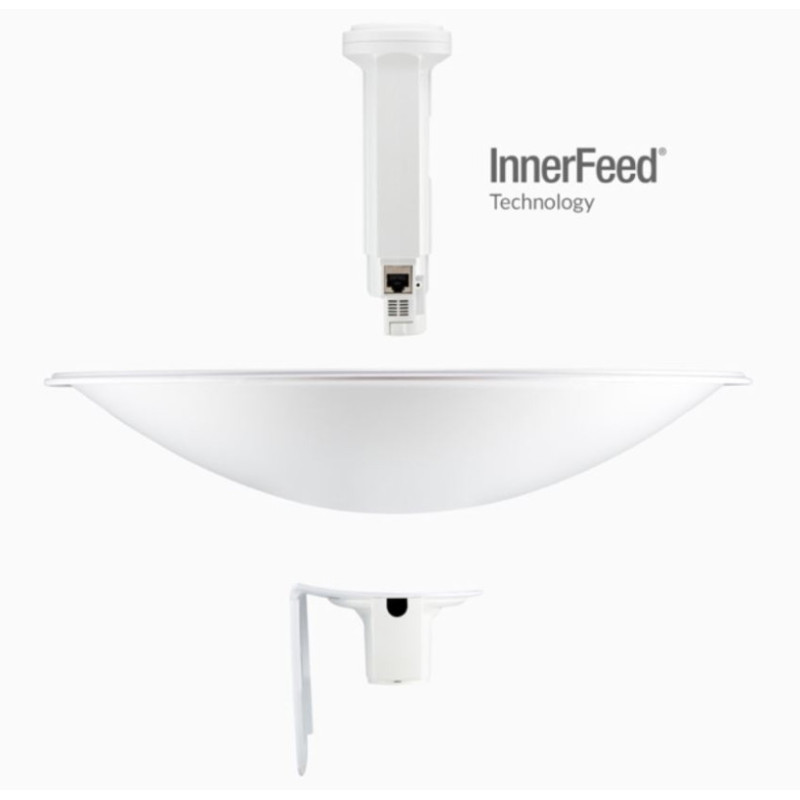

Ubiquiti's InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses.

Providing high performance and innovative mechanical design at a low cost, the PowerBeam is extremely versatile and cost-effective to deploy.

airMAX Technology Included

Unlike standard Wi-Fi protocol, Ubiquiti's Time Division Multiple Access (TDMA) airMAX protocol

allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.

This time slot method eliminates hidden node collisions and maximizes airtime efficiency. It

provides significant performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.

Intelligent QoS. Priority is given to voice/video for seamless streaming.

Scalability. High capacity and scalability.

Long Distance. Capable of high-speed, carrier-class links.

Dimensions: 420 x 420 x 289 mm (16.54 x 16.54 x 11.38')

Weight: 1.795 kg (3.96 lb)

Power Supply: 24V, 0.5A PoE

Max. Power Consumption: 6W

Operating Frequency: 2405-2475 MHz

Gain: 18 dBi

Networking Interface (1): 10/100 Ethernet Port

Processor Specs: Atheros MIPS 74Kc, 560 MHz

Memory: 64 MB DDR2, 8 MB Flash

LEDs (1): Power, (1) LAN, (4) WLAN

Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels

Max. VSWR: 1.5:1

Channel Sizes: 5/8/10/20/30/40 MHz

Polarization: Dual Linear

Enclosure: Outdoor UV Stabilized Plastic

Mounting: Pole-Mount (Kit Included)

Wind Loading: 278.4 N @ 120 km/h (63 lbf @ 75 mph)

Wind Survivability: 120 km/h (75 mph)

ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV

Operating Temperature: -40 to 70° C (-40 to 158° F)

Operating Humidity: 5 to 95% Noncondensing

Wireless Approvals: FCC, IC, CE

RoHS Compliance: Yes

Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5

Vibration Test: IEC 68-2-6

Temperature Shock Test: IEC 68-2-14

UV Test: IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4

Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
