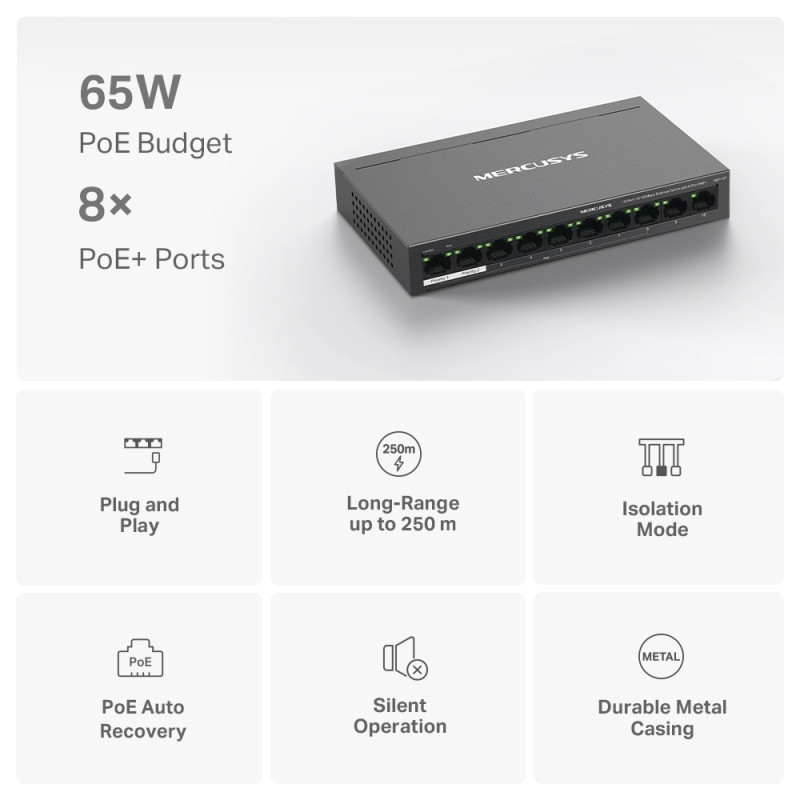

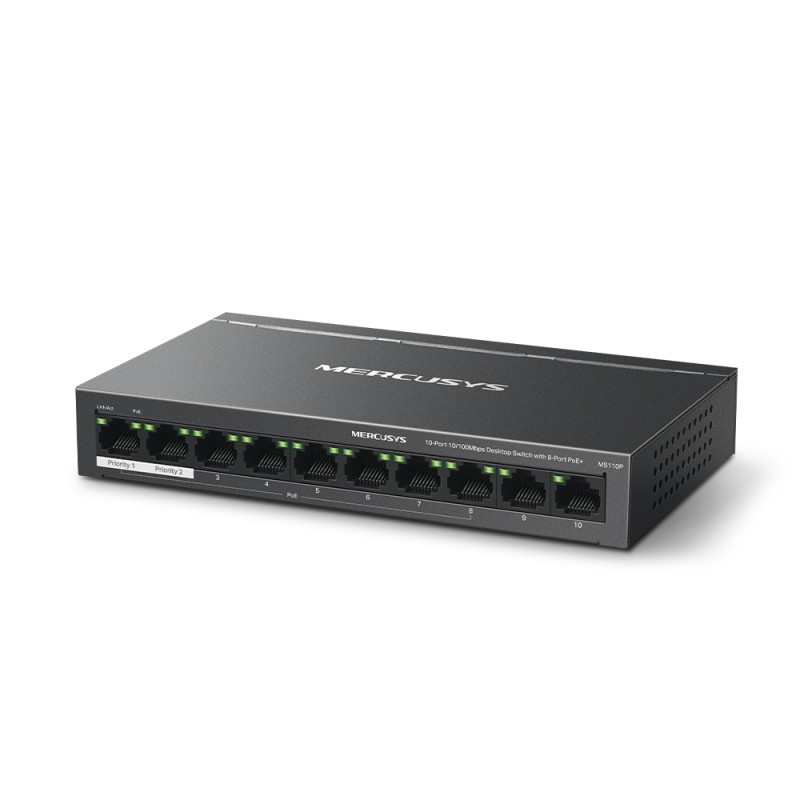

„Mercusys“ 10 prievadų 10 / 100 Mbps stalinis komutatorius su 8 prievadų „PoE+“

• 10 Ports:10× 10/100 Mbps RJ45 ports with 8 PoE+ ports

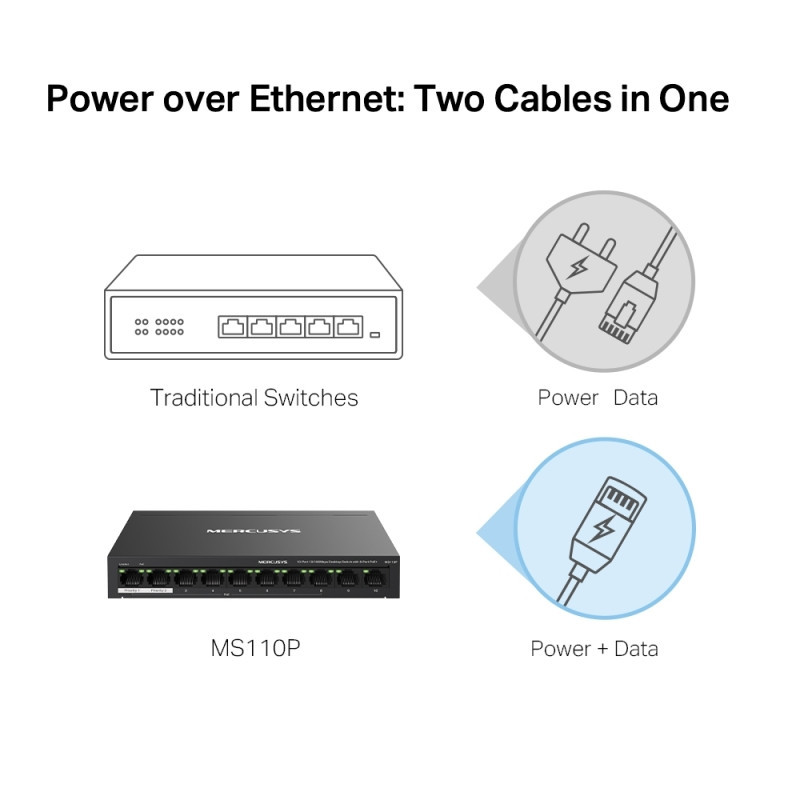

• Two Cables in One:With 8 PoE+ ports, transfers data and power on one single cable


• High Power PoE+:Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports


• 2× Uplink Ports:MS110P provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.


• Long-Range up to 250 m:Increases PoE transmission distance to 250 m by Extend Mode*


• Isolation Mode:One click to divide traffic for specific ports for stability and security


• Compliant with Powered Devices:Works with IEEE 802.3af/at compliant PDs


• Durable Metal Casing:Allows for efficient heat dissipation and long network life


• Plug and Play:Simple to use and saves time and effort


• PoE Auto Recovery :Automatically reboots your dropped or unresponsive PoE-powered devices

Hardware

Dimensions: 171*98*27 mm

PoE Ports:

RJ45

Standard: Compliant with 802.3 af/at Powered Devices

PoE Ports: Port 1- Port 8

PoE Power Budget: 65 W

Interfaces: 10× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX

External Power Supply: External Power Adapter (Output: 53.5V/1.31A)

Installation: Desktop/Wall Mount

Standards and Protocols: IEEE 802.3x Flow Control

Data Rates:

10/100 Mbps at Half Duplex

20/200 Mbps at Full Duplex

Jumbo Frame: 2 KB

Mac Address Table: 2K

Max Power Consumption:

2.96W (220 V / 50 Hz, no PD connected)

77.52W( 220 V / 50 Hz, with 65W PD connected)

Max Power Consumption:

10.064 BTH/h (no PD connected)

263.568 BTH/h (with 65W PD connected)

Others

Package Contents:

• 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (MS110P)

• Power Adapter

• Quick Installation Guide

Environment:

Operating Temperature: 0 ~40 (32 ~104 )

Storage Temperature: -40 ~70 (-40 ~158 )

Operating Humidity: 10%~90% RH non-condensing

Storage Humidity: 5%~95% RH non-condensing
