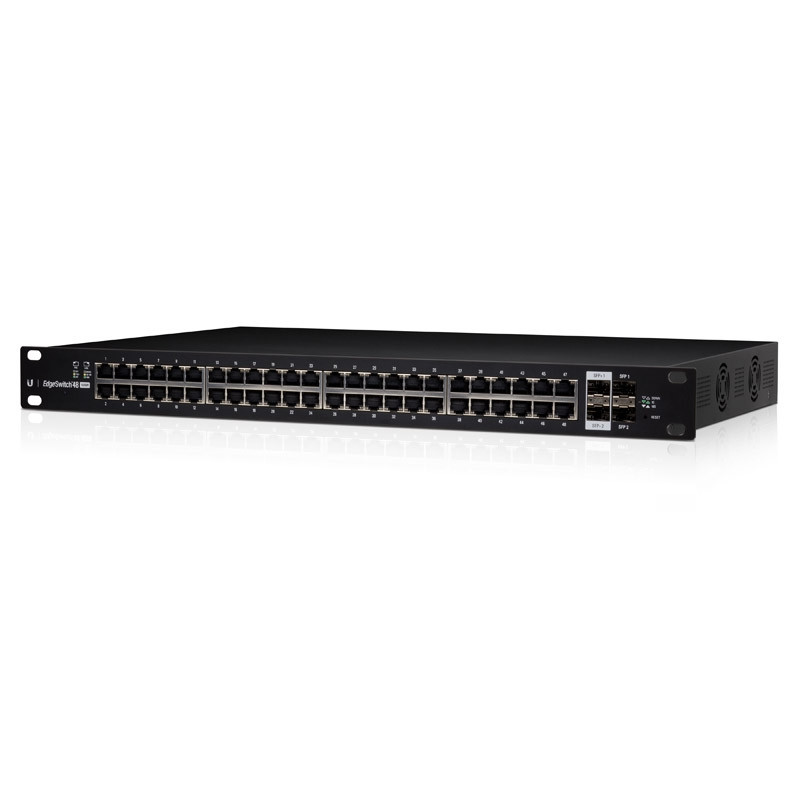

„EdgeSwitch 48 500W“

Ubiquiti Networks ES-48-500W EDGE SWITCH 48PORT 500W EdgeSwitch 48 (500W Model) Model: ES-48-500W • (48) Gigabit RJ45 ports • (2) SFP+ ports • (2) SFP ports • Non-blocking throughput: 70 Gbps • Switching capacity: 140 Gbps • Forwarding rate: 104.16 Mpps • Maximum power consumption: 500W • Supports POE+ IEEE 802.3at/af and 24V Passive PoE • Rackmountable

Dimensions 485.04 × 44.45 × 285.6 mm

Weight 5.3kg

Total Non-Blocking Throughput 70Gbps

Max. Power Consumption 500W

Power Method 100-240VAC/50-60Hz, Universal Input

Power Supply AC/DC, Internal, 250W DC

Networking Interfaces 48x 10/100/1000Mbps RJ45 Ethernet Ports

2x 1Gbps SFP Ethernet Ports

2x 1/10Gbps SFP+ Ethernet Ports

Management Interface Ethernet In/Out of Band

Certifications CE, FCC, IC

Rackmount yes, 1U

ESD/EMP Protection Air: ±24kV, Contact: ±24kV

Operating Temperature -5 to 40°C

Operating Humidity 5 to 95% Noncondensing

Shock and Vibration ETSI300-019-1.4 Standard

PoE Interfaces POE+ IEEE 802.3af/at (Pins 1,2+, 3, 6-)

24VDC Passive PoE (Pins 4,5+,7,8-)

Max. PoE+ Wattage per Port by PSE 34.2W

Voltage Range 802.3at Mode 50-57V

Max. Passive PoE Wattage per Port 17W

24V Passive PoE Voltage Range 20-27V
