„Air Max 13dBi 5GHz DualOmni“ antena

The airMAX® Omni Antenna is a carrier-class 2x2 dual-polarity MIMO omnidirectional antenna designed to seamlessly integrate with Rocket radios (Rocket sold separately).

Flexibility

To support your specific application, the airMAX Omni Antenna is available in multiple frequency models:

• 2.4 GHz

• 3 GHz

• 5 GHz

Breakthrough Design

The airMAX Omni Antenna is the first of its kind to feature a patented, dual-polarity omni design.

Omnidirectional Coverage

The airMAX Omni Antenna provides powerful 360° coverage, 2x2 MIMO performance in Line-of-Sight (LoS) or Non-Line-of-Sight (NLoS) applications.

Durable Construction

Each airMAX Omni Antenna features a robust mechanical design for outdoor application use.

Plug and Play Integration

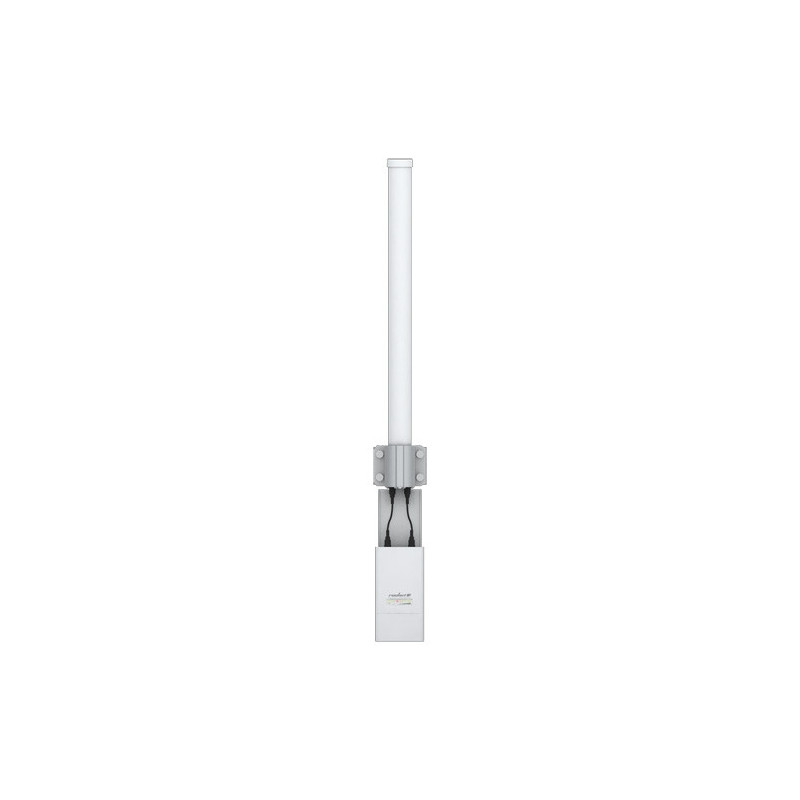

Every airMAX Omni Antenna has a built-in Rocket mount, so installation requires no special tools. Snap the Rocket securely into place and mount the antenna; you then have the optimal combination of Rocket radio and airMAX Omni Antenna for your application.

Pair the Rocket radio with the airMAX Omni Antenna to create a powerful omnidirectional basestation. This combination gives network architects unparalleled flexibility and convenience.

Dimensions: 799 x 90 x 65 mm (31.46 x 3.54 x 2.56')

Weight with Mount: 0.82 kg (1.81 lb)

Frequency: 5.45 - 5.85 GHz

Gain: 13 dBi

Elevation Beamwidth: 7°

Electrical Downtilt: 2°

Max. VSWR: 1.5:1

Wind Survivability: 200 km/h (125 mph)

Wind Loading: 84.52 N @ 200 km/h (19 lbf @ 125 mph)

Polarization: Dual Linear

Cross-Pol Isolation: 25 dB Min.

RF Connectors: 2 RP-SMA Connectors (Weatherproof)

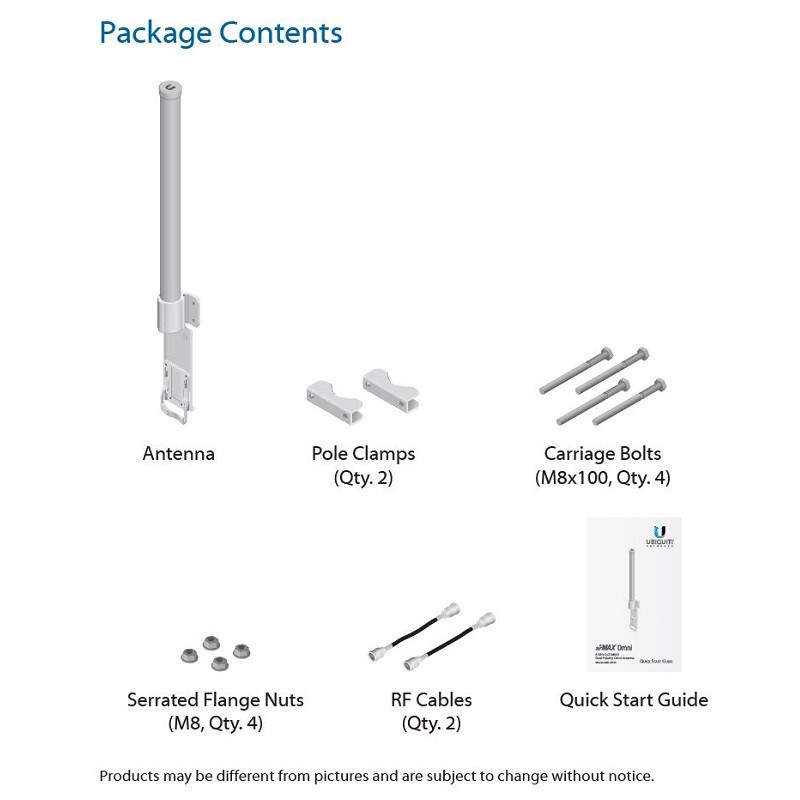

Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included

ETSI Specification: EN 302 326 DN2
